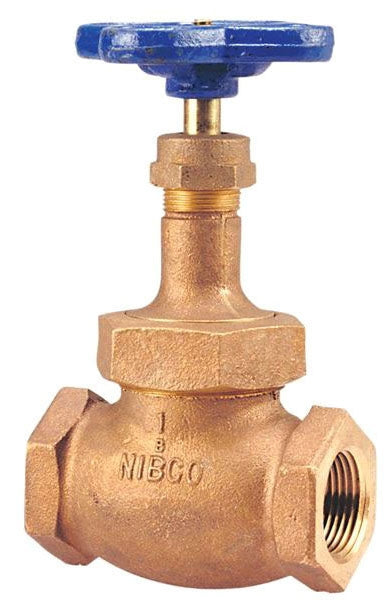

NIBCO NL3400E Globe Valve 2-1/2 Inch Handwheel Multi-Turn T-235-Y

Product Description

The NIBCO NL3400E is a robust globe valve designed for regulating fluid flow in industrial and commercial applications. This valve features a female threaded to female threaded end connection and is constructed from high-quality dezincification resistant bronze, ensuring longevity and reliability.

• Multi-turn handwheel operation for precise control.
• 150 PSI SWP and 300 PSI CWP pressure rating.
• Integrated PTFE seats and aramid fiber with graphite seals.

Product Highlights

This valve is ideal for applications involving hot/cold water, HVAC steam, and compressed air/gas. Its design includes a renewable seat disc and integral seat, providing enhanced durability and maintenance ease.

Product Information

Standard Information

• Manufacturer: NIBCO
• Series/Model: T-235-Y

Technical Specifications

• Nominal Size: 2-1/2 Inch
• Body Material: ASTM B62 Dezincification Resistant Bronze
• Pressure Rating: 150 PSI SWP, 300 PSI CWP
• Temperature Rating: 366 Degrees Fahrenheit
• Handle Material: ASTM A47 Malleable Iron
• Seal Material: Aramid Fiber with Graphite
• Seat Material: PTFE
