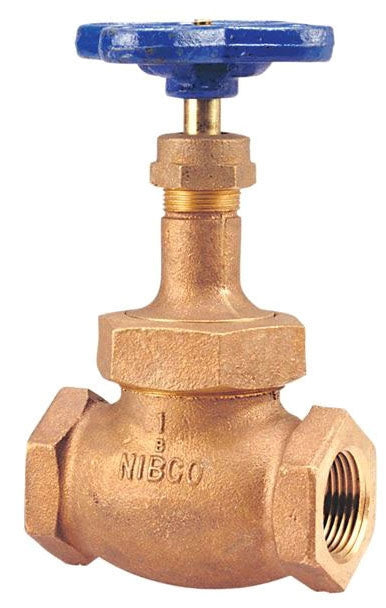

NIBCO NL3400C 1-1/2 Inch Bronze Globe Valve Handwheel Multi-Turn

Product Description

The NIBCO NL3400C is a robust 1-1/2 inch bronze globe valve designed for regulating flow within commercial and industrial applications. Engineered for durability and reliability, it features a dezincification resistant bronze body with a Union bonnet for easy maintenance. The valve is operated by a handwheel and offers multi-turn functionality for precise control.

• Handwheel operated for precise flow control.
• Constructed from dezincification resistant bronze for long service life.
• Designed for both hot and cold water, HVAC, steam, and gas applications.

Product Highlights

Utilizing a malleable iron handwheel and ASTM B371 silicon bronze stem, this valve ensures consistency and performance under varying conditions. Its PTFE seat and disk enhance sealing efficiency, making it suitable for a wide range of media including water, compressed air, and gas.

Product Information

Standard Information

• Pressure Capabilities: 150 PSI SWP, 300 PSI CWP.
• Temperature Tolerance: Up to 366 degrees Fahrenheit.

Technical Specifications

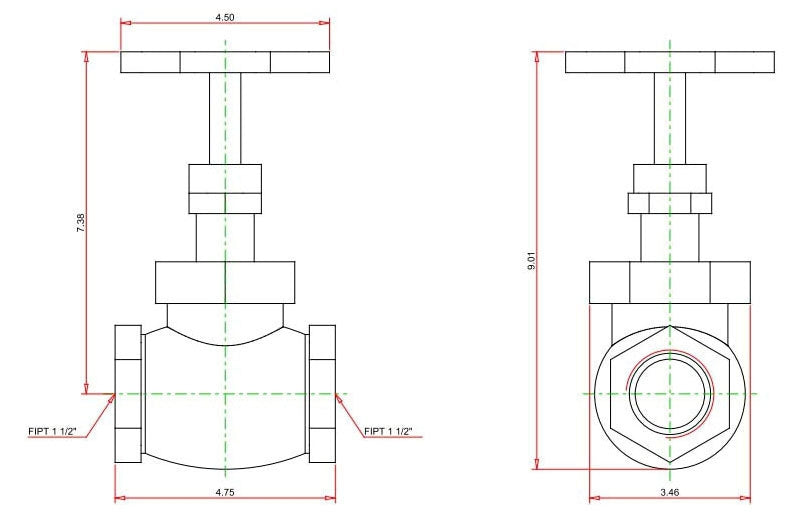

• Size: 1-1/2 inch.
• Type: Globe.
• End Connections: Female Threaded x Female Threaded.
• Body Material: ASTM B62 Bronze.
• Seal Material: Aramid fiber with Graphite.
• Standards: MSS-SP-80 Compliant.
• Application: Suitable for commercial, industrial, hot/cold water, HVAC steam, and compressed air/gas.
