Product Description

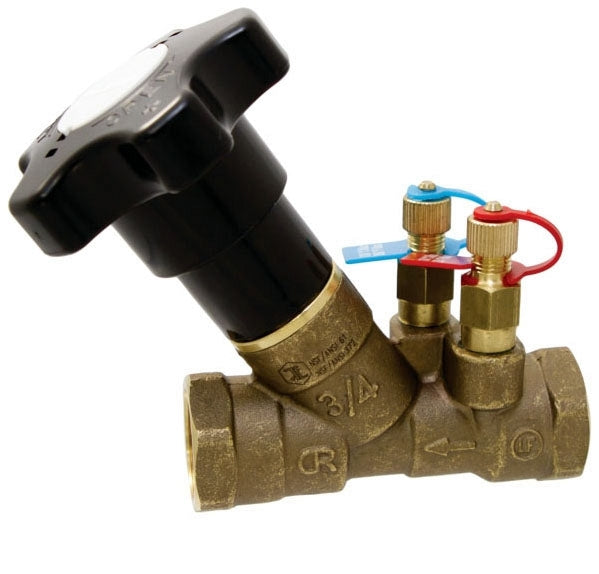

The NIBCO NL2X0XD is a T1810-LF 2 Balancing Valve with a thread end connection. This manual valve is designed for use in HVAC applications, providing effective balancing for fluid distribution systems. It features a robust brass body and is rated for high temperatures and pressures. It has a length of five point seventy-two inches from inlet to outlet and provides a durable option to ensure system efficiency.
- Brass body with brass/PTFE trim
- Pressure rated up to three hundred psi
- Temperature rating of up to two hundred sixty degrees Fahrenheit
Product Highlights
The T1810-LF series offers reliable performance for balancing water flow in hydronic heating systems, ensuring optimal system operation.
Product Information
Standard Information
-
Manufacturer: NIBCO INC
-
UPC: 039923372444
Technical Specifications
-
Body Material: Brass
-
Type: Manual
-
Nominal Size: 2 in
-
End Style: NPT
-
Pressure Rating: 300 psi
-
Temperature Rating: 260 degrees Fahrenheit
-
Inlet to Outlet Length: 5.72 in
-
Top to Inlet Center: 5.34 in
