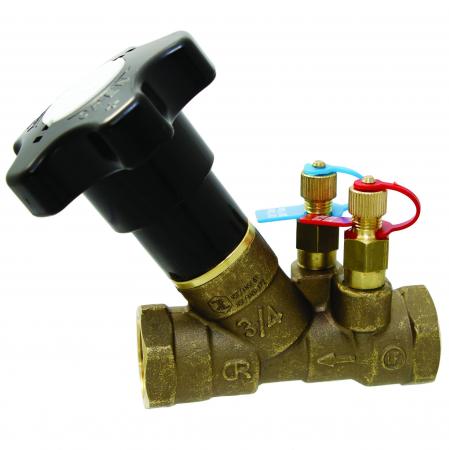

NIBCO NL2X0XB T1810-LF 11/4 Balancing Valve Thread End

Product Description

NIBCO NL2X0XB is a manual balancing valve designed for HVAC and plumbing systems. This valve features a nominal size of one and one-fourth inches with NPT end style. The pressure rating is three hundred psi, making it suitable for high-pressure applications. The brass body provides strength and durability, while the EPDM/PTFE trim ensures reliable performance.

• Brass body construction for durability
• Temperature rating up to two hundred sixty degrees Fahrenheit
• NSF/ANSI 61/372 compliant

Product Highlights

This balancing valve is essential for maintaining flow rates in mechanical systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Manual

Technical Specifications

• Body Material: Brass
• Domestic/Import: Import
• End Style: NPT
• Inlet to Outlet Length: 4.63 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 300 psi
• Series: T-1810-LF
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 260 degrees Fahrenheit
• Top to Inlet Center: 4.85 inches
• Trim Material: Brass/PTFE Disc Seat
