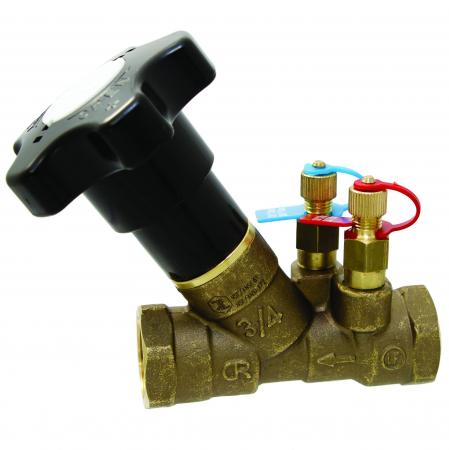

Nibco NL2X0XA T1810-LF 1 Balancing Valve Thread End

Product Description

NIBCO NL2X0XA T1810-LF 1 Balancing Valve Thread End is designed for accurate flow control in plumbing systems. This manual valve achieves reliable balancing in hot and cold water applications. It has a nominal size of one inch and features NPT connections for convenient installation.

• Pressure rated to 300 psi
• Constructed from brass with EPDM soft goods
• Compact length of 3.94 inches from inlet to outlet

Product Highlights

This balancing valve is ideal for use in various HVAC systems, ensuring optimal flow through pipes and maintaining system efficiency. The manual operation allows for precise adjustments, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Manual

Technical Specifications

• Body Material: Brass
• Nominal Size: 1 in
• End Style: NPT
• Pressure Rating: 300 psi
• Temperature Rating: 260 deg F
• Inlet to Outlet Length: 3.94 in
• Top to Inlet Center: 4.06 in
• Trim Material: Brass/PTFE Disc Seat
