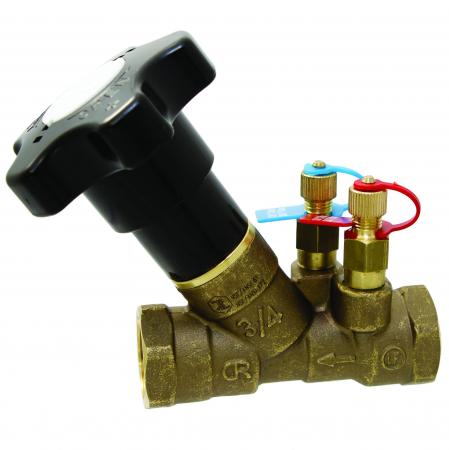

Nibco NL2X0X8 T1810-LF 3/4 Balancing Valve Thread End

Product Description

The Nibco NL2X0X8 is a T1810-LF three-fourths inch balancing valve designed for manual operation. This valve features NPT ends and is suitable for plumbing and HVAC applications. It can withstand pressure rates up to three hundred psi and operates effectively at temperatures reaching two hundred sixty degrees Fahrenheit. The valve measures three point seventy-eight inches from inlet to outlet and four point zero six inches from top to inlet center.

• Brass body material ensures durability.
• Dezincification resistance for longevity.
• Compatible with EPDM O-rings and features a brass/PTFE disc seat.

Product Highlights

Designed for mechanical and HVAC systems, the T1810-LF balancing valve helps regulate flow and maintain system efficiency. It adheres to NSF/ANSI 61/372 standards, ensuring safety and compliance for plumbing applications.

Product Information

Standard Information

• Manufacturer: Nibco INC
• Series: T-1810-LF

Technical Specifications

• Body Material: Brass
• End Style: NPT
• Nominal Size: 3/4 inch
• Pressure Rating: 300 psi
• Temperature Rating: 260 degrees Fahrenheit
• Inlet to Outlet Length: 3.78 inches
• Top to Inlet Center: 4.06 inches
• Softgoods Material: EPDM/PTFE
• Trim Material: Brass/PTFE Disc Seat
• Type: Manual
