Product Description

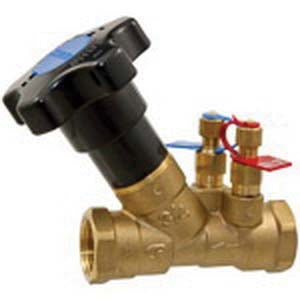

NIBCO NL2X00D is a manual circuit balancing valve designed for HVAC and mechanical systems. The valve features a brass body and is part of the T-1810 series. With a nominal size of two inches, it is optimized for use in hot and chilled water systems. It operates at a pressure rating of three hundred psi and has a temperature rating of two hundred sixty degrees Fahrenheit. This valve design enhances system efficiency by allowing accurate flow adjustments.
- Quick and simple installation for HVAC applications
- DZR brass body with PTFE disc seat
- Built-in pressure and temperature ports for easy monitoring
Product Highlights
This product is ideal for balancing flows in HVAC systems, ensuring reliable performance and easy maintenance.
Product Information
Standard Information
-
Manufacturer: NIBCO INC
-
UPC: 039923336811
Technical Specifications
-
Body Material: Brass
-
Connection Size: 2 in
-
Connection Type: NPT
-
Inlet to Outlet Length: 5.72 in
-
Pressure Rating: 300 psi CWP Non-Shock
-
Softgoods Material: EPDM
-
Temperature Rating: 260 deg F
-
Flow Rate: 24 - 78 gpm
