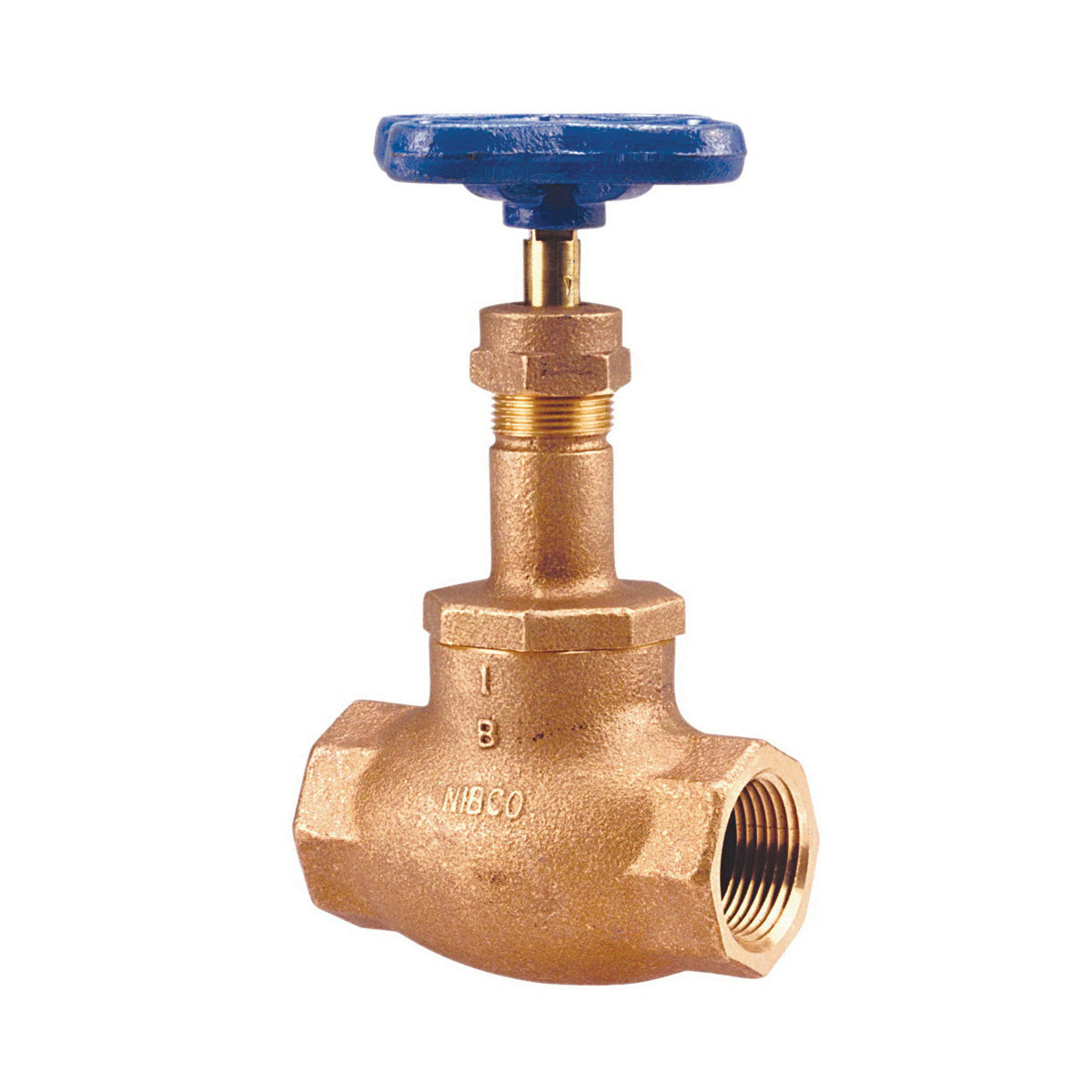

NIBCO NL2K00A Globe Valve, 1 in Nominal, FNPT End Style, 125 lb

Product Description

The NIBCO bronze globe valve, with part number NL2K00A, features a screw-in bonnet and an integral seat design. It includes a renewable PTFE seat disc and is equipped with Class 125 female threaded ends for easy installation. This globe valve is suited for throttling or regulating flow.

The NIBCO bronze globe valve is ideal for bi-directional service across various commercial and industrial applications. It is designed for use with hot and cold water, HVAC systems, steam, compressed air, gas, and other general utility services. Refer to the technical data sheets and chemical resistance guides for detailed engineering and installation information.

• Integral seat for enhanced sealing
• Renewable PTFE seat disc for long-lasting performance
• Recommended for commercial and industrial applications

Product Highlights

Trust NIBCO for reliable globe valves suitable for a variety of flow control needs.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Series: T-211-Y

Technical Specifications

• Nominal Size: 1 in
• End Style: FNPT
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Inlet to Outlet Length: 3.69 in
• Top to Inlet Center: 5.69 in
• Softgoods Material: Aramid Fiber
• Actuator Type: Handwheel
• Media: Water
