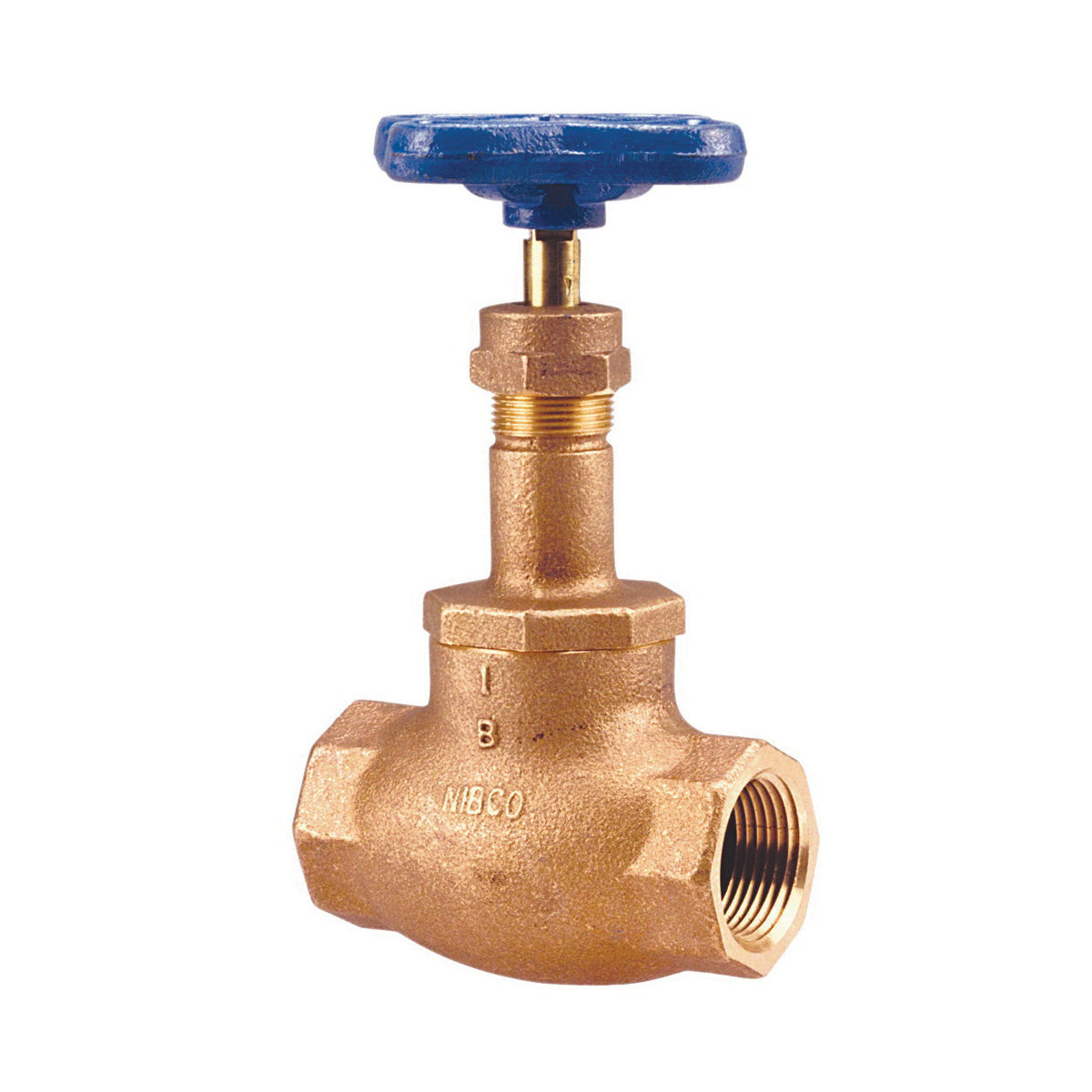

NIBCO NL2K005 Globe Valve, 3/8 in Nominal, NPT End Style, 125 lb

Product Description

The NIBCO NL2K005 is a globe valve designed for various applications. It features a screw-in bonnet with an integral seat and a renewable PTFE seat disc. The valve has Class 125 female threaded ends. This globe valve is suitable for regulating flow in commercial and industrial settings. It works effectively for hot and cold water, HVAC systems, steam, compressed air, gas, and other utility services. Technical data sheets and installation guides are available for further reference. NIBCO provides a five-year limited warranty for this product.

• Integral seat for secure sealing
• Renewable PTFE seat disc for improved longevity
• Recommended for bi-directional services

Product Highlights

The NIBCO NL2K005 globe valve is reliable for industrial applications and ensures efficient flow control.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Model: T-211-Y
• Min Order Quantity: 1

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Media: Water
• Nominal Size: 3/8 in
• Inlet to Outlet Length: 2.38 in
• Top to Inlet Center: 3.38 in
• Softgoods Material: Aramid Fiber
• Trim Material: Silicon Bronze
