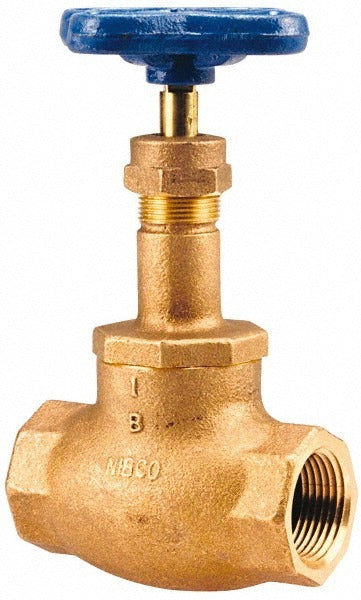

Nibco NL2J002 Bronze Globe Valve 1/8 Inch Threaded 200 Psi

Product Description

The NIBCO NL2J002 is a Class 125 bronze integral globe valve designed for flow regulation in commercial and industrial piping systems. It features a screw-in bonnet construction with a bronze disc and handwheel operator. The valve is rated at 200 psi WOG (water, oil, gas) and 125 psi WSP (working steam pressure), making it suitable for a range of fluid control applications. The 1/8 inch pipe size with threaded end connections allows for straightforward installation into standard NPT pipe runs. Licensed plumbers and pipefitters are the primary installers of this fitting in both new construction and maintenance work.

This globe valve is used in residential and light commercial plumbing, steam, and HVAC piping systems where precise flow throttling or shut-off is required. The 1/8 inch pipe size suits instrument lines, small branch connections, gauge isolation, and similar low-flow service points. The handwheel operator provides manual control well-suited to accessible panel and mechanical room installations where frequent adjustment or periodic isolation is needed.

Key Features

• 200 psi WOG rating for water, oil, and gas service
• 125 psi WSP rating suitable for steam applications
• Bronze body and disc construction for corrosion resistance in wet service
• Screw-in bonnet for reliable sealing and field serviceability
• Handwheel operator for precise manual flow control
• Threaded end connections compatible with standard NPT pipe fittings

Compatibility

Designed as an OEM-style replacement or new-installation globe valve for 1/8 inch NPT threaded pipe systems rated within Class 125 service parameters.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B16.15 threaded fitting standards. Isolate and depressurize the system completely before installing or servicing this valve. Apply appropriate thread sealant or PTFE tape to the NPT threads, taking care not to over-torque connections in bronze fittings. Verify that system pressure and fluid compatibility fall within the rated limits before returning the system to service.
