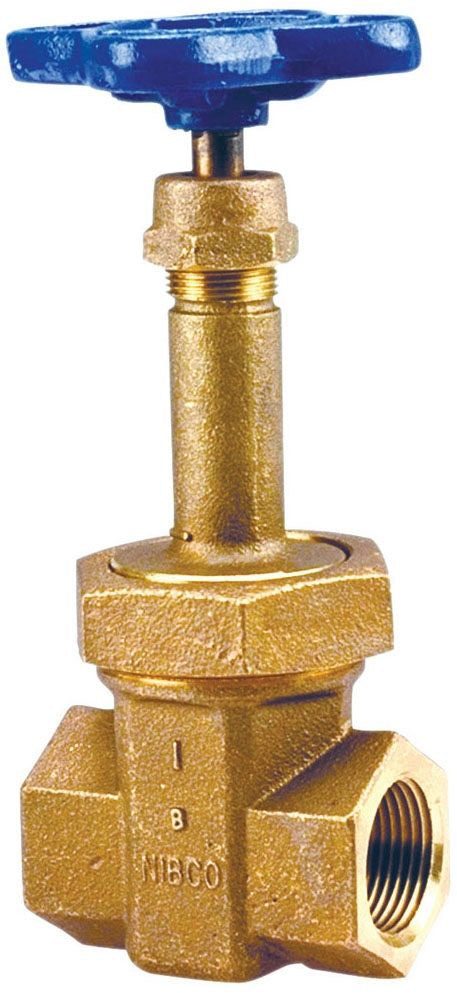

Nibco nl2hs0d Bronze Gate Valve 2 in Class 300

Product Description

The NIBCO nl2hs0d is a 2-inch bronze threaded gate valve designed for demanding fluid isolation applications in commercial and industrial piping systems. It features a rising stem design that provides a clear visual indicator of valve position, and a union bonnet for easy in-line maintenance without removing the valve body from the line. The stainless steel wedge trim adds corrosion resistance and durability under high-pressure service. Rated at Class 300 with a cold working pressure of 600 CWP and a maximum temperature rating of 300 to 421 degrees F, this valve is suited for high-pressure steam, hot water, and general service piping. Licensed plumbers and pipefitters are the primary installers.

This gate valve is intended for full-bore isolation service in residential, commercial, and light industrial piping systems. The threaded female pipe thread connection suits standard iron pipe installations where welded or flanged connections are not required. The bronze body is well suited for water, steam, and non-corrosive fluid service. The union bonnet design makes it a practical choice in tight mechanical rooms or wherever regular packing maintenance is anticipated.

Key Features

• Rising stem design gives visible open or closed indication at a glance
• Union bonnet allows in-line repacking and maintenance without line removal
• Stainless steel wedge trim for enhanced corrosion resistance
• Bronze body rated for water, steam, and general service applications
• Class 300 pressure rating with 600 CWP cold working pressure
• Female pipe thread (FPT) connections on both ends for standard threaded pipe installations

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for Class 300 threaded bronze valve applications in commercial and industrial piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including the International Plumbing Code. Depressurize and drain the line completely before removing any existing valve or making new connections. Apply appropriate thread sealant or PTFE tape to all male pipe threads before assembly. Do not use the valve for throttling service — gate valves are designed for full-open or full-closed operation only.

Technical Specifications

• Size: 2 inches
• Body Material: Bronze
• Stem Type: Rising
• Bonnet Type: Union
• Connection Type: Threaded (FPT)
• Pressure Class: Class 300
• Cold Working Pressure (CWP): 600 psi
• Maximum Temperature: 421 degrees F
• Wedge Trim: Stainless Steel

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: nl2hs0d
