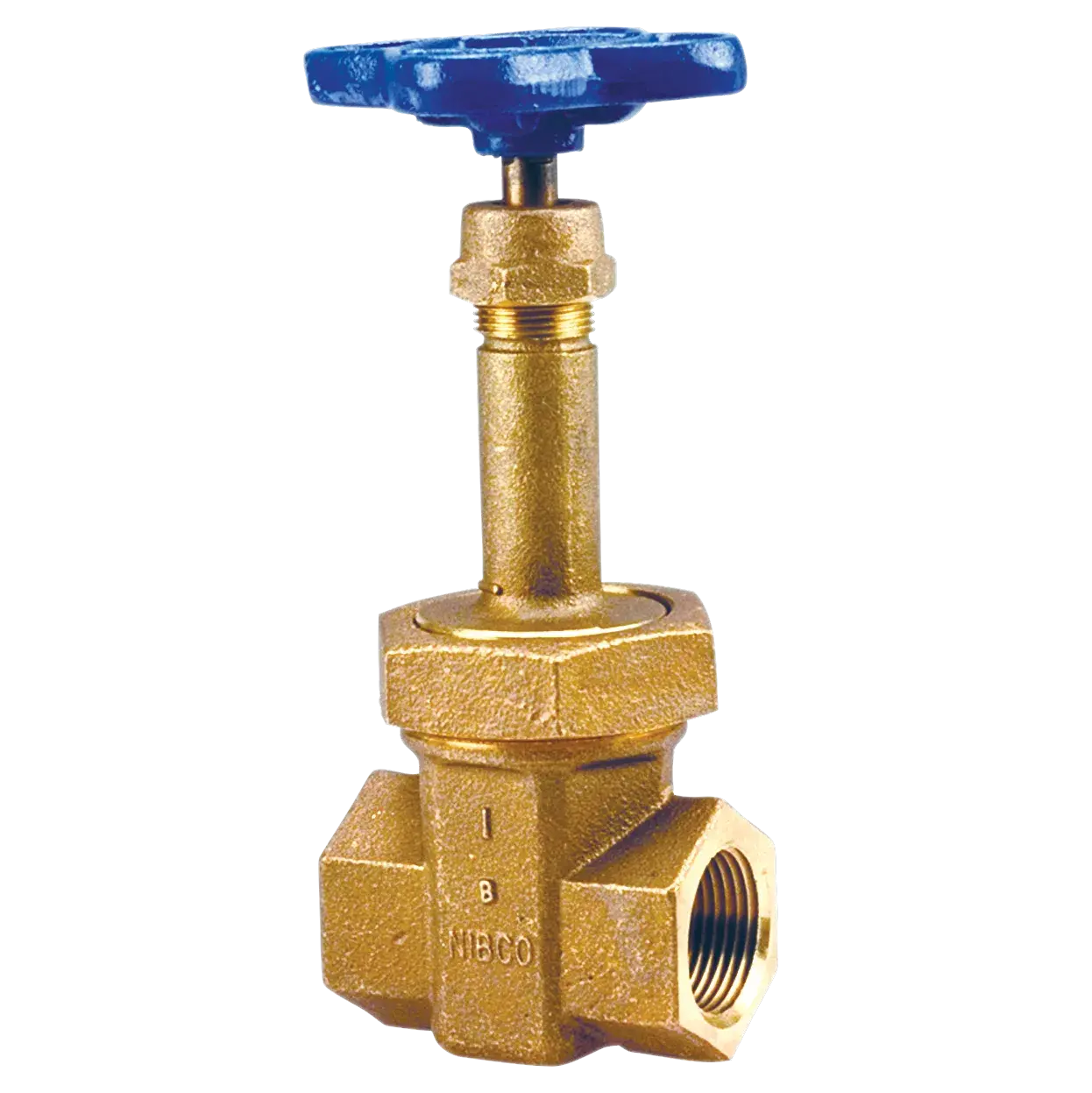

Nibco NL2HS0B Gate Valve 1-1/4 T-174-SS

Product Description

The NIBCO NL2HS0B bronze gate valve is suitable for commercial and industrial applications, including HVAC, and general utility services. This valve features a union bonnet for service where reparability in-line is required. The stainless steel alloy solid wedge, integral seats and bi-directional service make it suitable for higher pressures, temperature and corrosive services.

• Rising stem
• Alloy solid wedge
• Union bonnet
• Class 300 threaded end connections

Product Highlights

The NIBCO gate valve is a versatile and economical valve option for commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL2HS0B
• Country of Origin: Domestic

Technical Specifications

• UPC Code: 039923620767
• Type: Gate Valve
• Valve Size: 1 1/4
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Stainless Steel
• Material: Bronze
• Description: T174SS 1 1/4 THD 300# RS GATE SS
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Body Material: Bronze
• End Style: Threaded
• Inlet to Outlet Length: 3.44 in
• Nominal Size: 1-1/4 in
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Series: T-174-SS
• Softgoods Material: Aramid Fiber/Graphite
• Top to Inlet Center: 8.88 in
• Trim Material: Silicon Bronze
• Valve Type: Rising Stem with Stainless Steel Trim
• Pipe Size (Inch): 1-1/4
• End Connection: Threaded
• Disc Style: Alloy Solid Wedge
• Bonnet Style: Union
• Handle Type: Wheel
• Standards: Conforms to MSS SP-80
