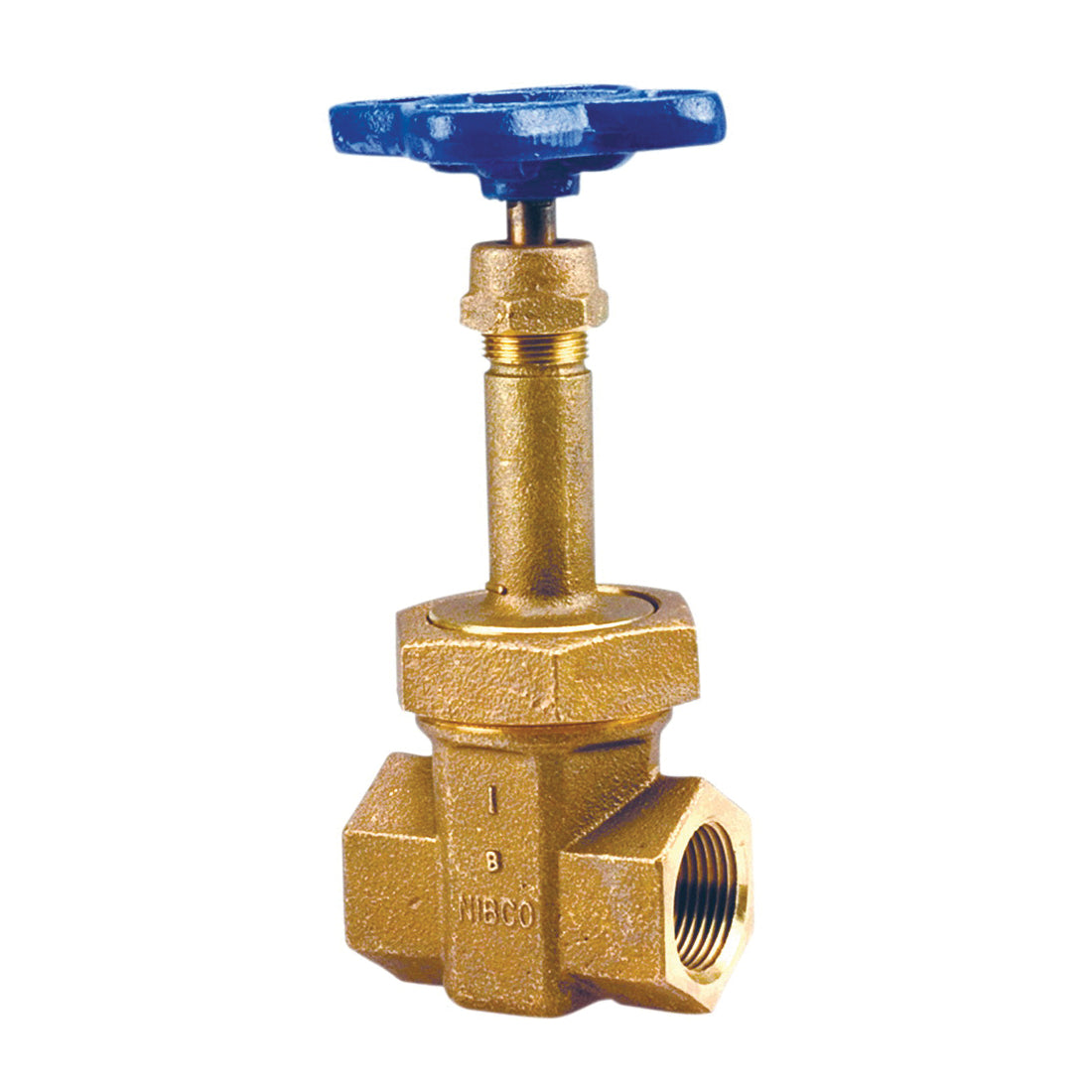

NIBCO NL2HS0A Block Pattern Gate Valve, 1 in Nominal, Threaded End Style, 300 lb

Product Description

The NIBCO NL2HS0A is a bronze gate valve. This valve is suitable for commercial and industrial use, especially in HVAC systems. It is designed for medium to high pressure steam and other utility services. Refer to NIBCO technical documents for installation guidance and product specifications.

• Durable bronze construction
• Suitable for applications up to 600 psi
• Threaded end style for easy connection

Product Highlights

This valve provides a reliable option for controlling flow in various systems. It combines a block pattern design with a handwheel actuator for manual operation.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: Block Pattern

Technical Specifications

• Nominal Size: 1 in
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Inlet to Outlet Length: 3.13 in
• Top to Inlet Center: 7.56 in
• Softgoods Material: Aramid Fiber/Graphite
• Series: T-174-SS
