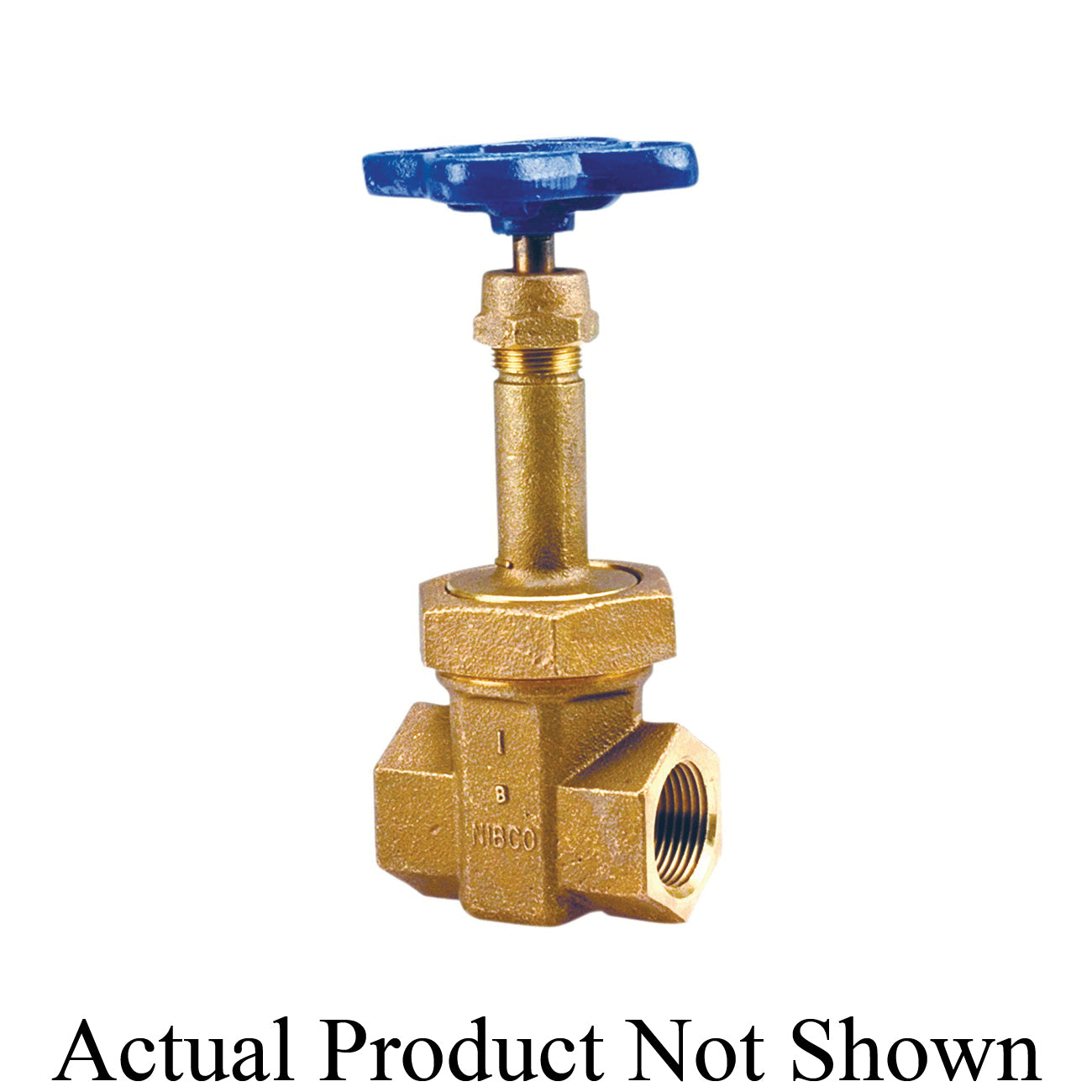

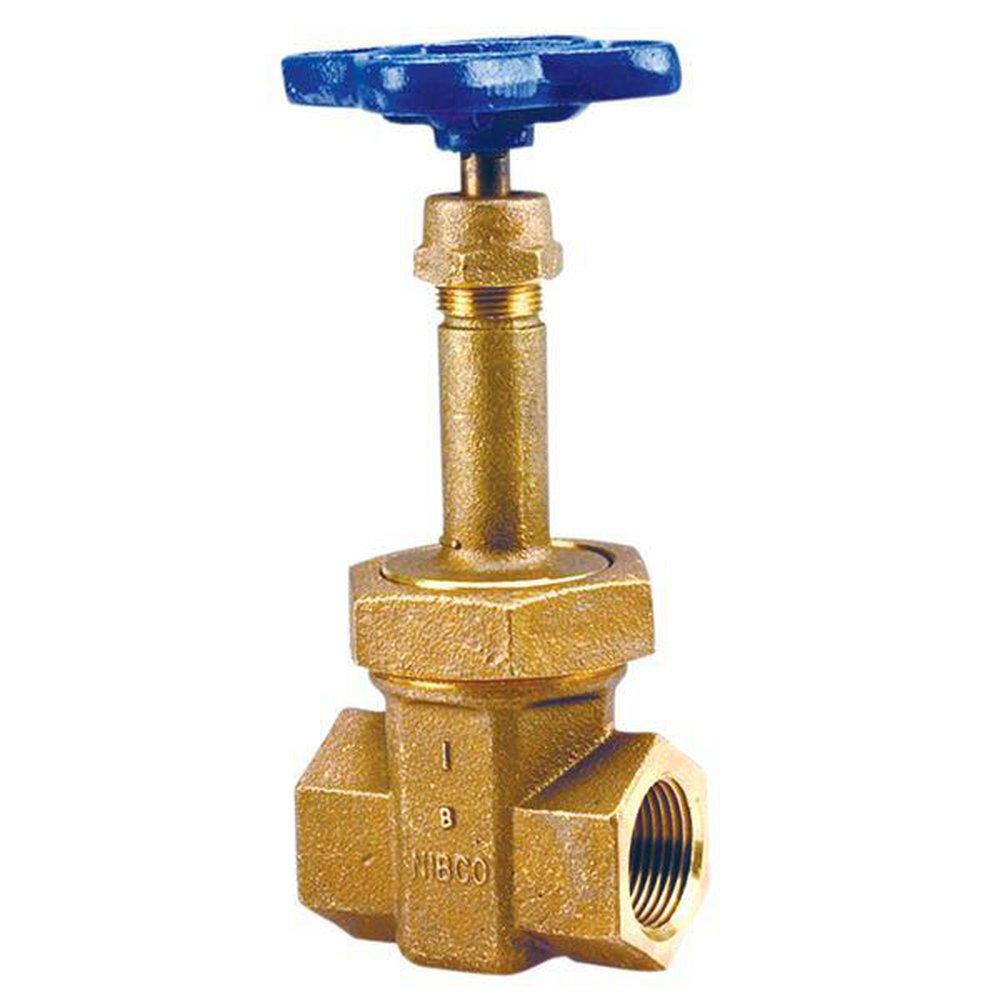

Nibco NL2HS08 T-174-SS Gate Valve 3/4 in.

Product Description

The NIBCO NL2HS08 T-174-SS bronze gate valve is suitable for commercial and industrial applications, including HVAC, medium to high pressure steam, and general utility services. It features class 300 threaded end connections and a full port design. Conforms to MSS SP-80 and is dezincification resistant. 600 psi non-shock cold working pressure.

• Class 300 threaded end connections
• FNPT thread
• Alloy solid wedge
• 600 psi/41.4 bar non-shock cold working pressure
• Union bonnet
• 300 psi/20.7 bar saturated steam to 421 0F/216 0C
• Rising stem

Product Highlights

The NIBCO gate valve is a versatile and economical valve option for various commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL2HS08
• Country of Origin: Domestic

Technical Specifications

• End Connections: FNPT
• Material: Bronze
• Nominal Size: 3/4 in.
• Pressure Rating: 600 psi CWP
• Port Type: Full Port
• Class: 300
• UPC Code: 039923620743
• Type: Gate Valve
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Stainless Steel
• Description: T174SS 3/4 THD 300# RS GATE SS
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Threaded
• Inlet to Outlet Length: 2.69 in
• Pressure Class: 300 lb
• Series: T-174-SS
• Softgoods Material: Aramid Fiber/Graphite
• Top to Inlet Center: 6.31 in
• Trim Material: Silicon Bronze
