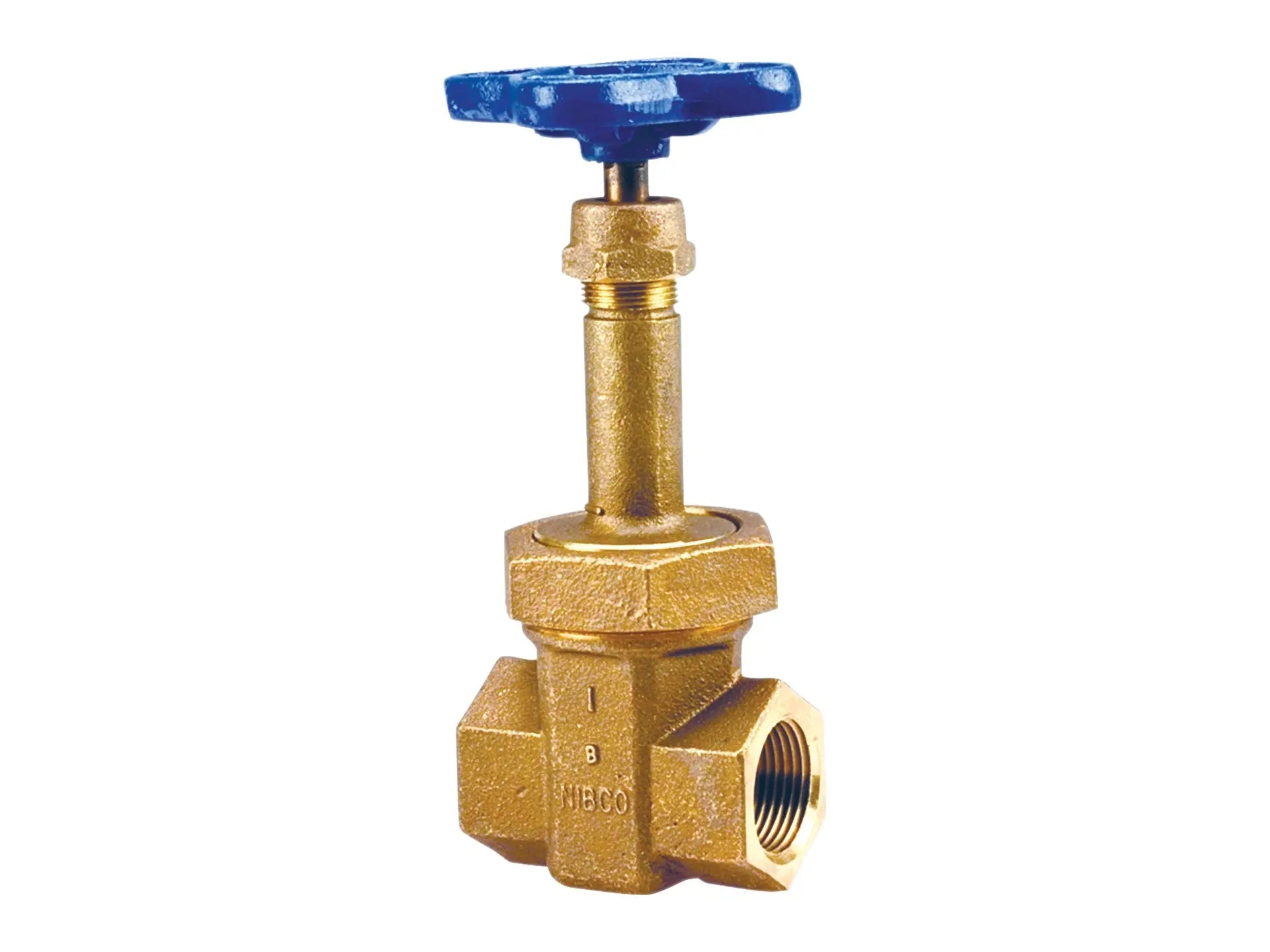

Nibco NL2HS06 T-174-SS Gate Valve 1/2 in

Product Description

The NIBCO NL2HS06 T-174-SS bronze gate valve may be used in commercial and industrial applications, HVAC, specifically for medium to high pressure steam, and other general utility services. Features a union bonnet for service where reparability in-line is required.

• Rising stem for visual indication of open/closed position
• Stainless steel alloy solid wedge, integral seats and bi-directional service for higher pressures and corrosive services
• Female threaded ends allow for ease of installation

Product Highlights

The NIBCO gate valve is a versatile and economical valve option in commercial, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL2HS06
• Country of Origin: Domestic

Technical Specifications

• UPC Code: 039923620736
• Type: Gate Valve
• Valve Size: 1/2
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Stainless Steel
• Material: Bronze
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Threaded
• Inlet to Outlet Length: 2.38 in
• Nominal Size: 1/2 In
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Series: T-174-SS
• Softgoods Material: Aramid Fiber/Graphite
• Top to Inlet Center: 5.38 in
• Trim Material: Silicon Bronze
• Gate Stem Design: Rising Stem
• Multi-Turn Operator: Standard Handwheel
• Multi-Turn Bonnet Design: Union Bonnet
• Trim Package: Stainless Steel Wedge
• Pressure Rating (CWP): 600 psi/41.4 Bar CWP
• Pressure Rating (SWP): 300 psi/20.7 Bar SWP
• Potable Water Code: Not LL Comp not intend potable
• Valve Type: Rising Stem with Stainless Steel Trim
• Pipe Size (Inch): 1/2
• End Connection: Threaded
• Disc Style: Alloy Solid Wedge
• Bonnet Style: Union
• Handle Type: Wheel
• Standards: Conforms to MSS SP-80
• Item Name: Gate Valve
• Operator Type: Standard Handwheel
• Handle Material: Malleable Iron
• Stem Material: Silicon Bronze
• Packing Material: Aramid Fibers With Graphite
• Gland Material: Bronze
• Material Standard: Body: ASTM B61, Bonnet: ASTM B61, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B16/ASTM B62/ASTM B1, Seat: ASTM A276, Stem: ASTM B371/ASTM B99, Union Nut: ASTM B61, Wedge: ASTM B61
• Material Specification: Packing Gland: UNS C36000, Packing Nut: UNS C84400, Seat: UNS 541000, Stem: UNS C69430/C69400/C65100
• Lead Free: No
• Other Physical Dimension: 5.38 IN Center To Top Of Handle
