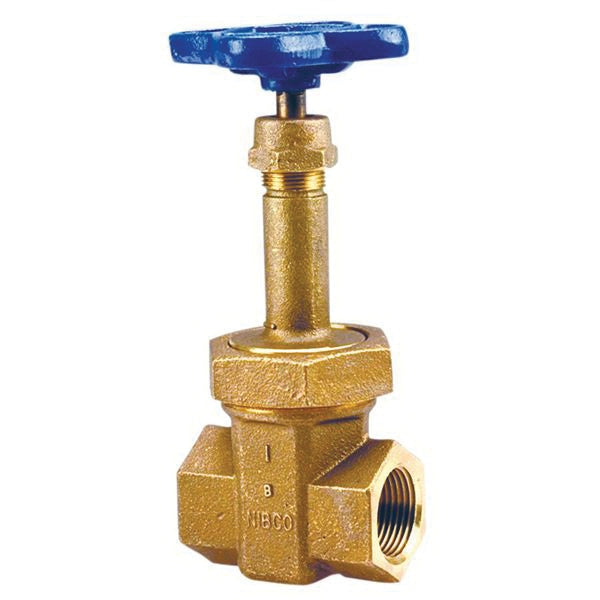

NIBCO NL2H00D T-174-A Bronze Gate Valve 2 Inch Class 300

Product Description

The Nibco T-174-A 2 inch bronze gate valve offers durable performance for high pressure and high temperature environments. It features a solid wedge, rising stem, and union bonnet, ideal for industrial applications and HVAC systems. Primarily constructed from robust bronze, this valve ensures longevity and resistance against dezincification.

• Designed with a bronze body and silicon bronze trim for enhanced durability and corrosion resistance.
• Capable of handling up to 600 psi/41.4 bar non-shock cold working pressure and 300 psi/20.7 bar saturated steam.
• Rising stem and FNPT end connections for easy visual verification of valve position and straightforward installation.

Product Highlights

Featuring a block pattern design, the valve is specifically designed for medium to high pressure steam applications within commercial and industrial settings. Certified under MSS SP-80, it is constructed to meet rigorous standards ensuring performance reliability.

Product Information

Standard Information

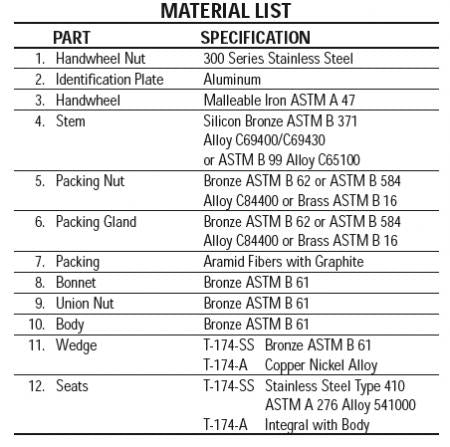

• Material: Bronze body with copper nickel alloy solid wedge.
• End Style: Female National Pipe Taper (FNPT) Threads.
• Pressure Class: 300 lbs.
• Size: 2 inches.
• Operator Type: Manual handwheel operation.
• Model: T-174-A.

Technical Specifications

• Pressure Rating: 600 psi cold working pressure, 300 psi steam.
• Connections: FNPT.
• Operating Temp: Up to 421 degrees Fahrenheit.
• Compliance: MSS SP-80, PROP65 warnings.
