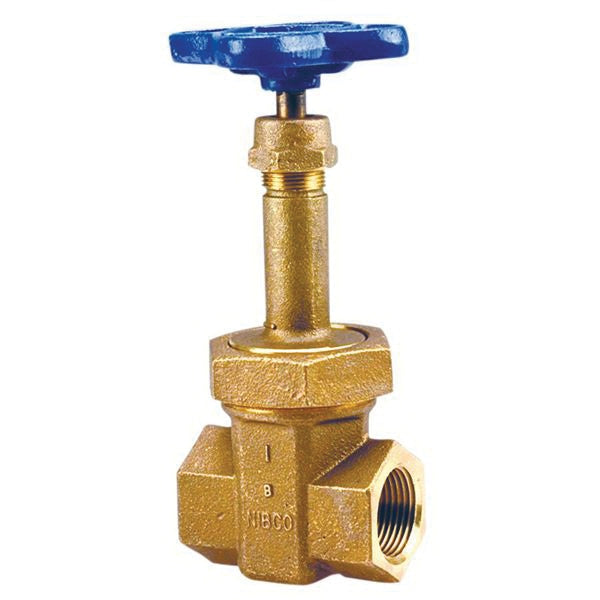

NIBCO NL2H00A T-174-A Bronze Gate Valve 1 Inch FNPT 300 Class

Product Description

The NIBCO NL2H00A T-174-A Bronze Gate Valve ensures reliable control of flow in piping systems. Ideal for commercial and industrial applications, this gate valve is designed for durability and performance.

• Constructed with a bronze body and silicon bronze trim.
• Features a solid wedge and union bonnet design.
• Suitable for high pressure and temperature environments.

Product Highlights

This gate valve is equipped with a malleable iron handwheel for easy operation and visual indication of position. It's designed to withstand up to 600 psi non-shock cold working pressure and 300 psi saturated steam pressure.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL2H00A

Technical Specifications

• Connection Type: FNPT
• Pressure Rating: 600 psi / 300 psi steam
• Body Material: Bronze
• Stem Material: Silicon Bronze
• Seat Material: Bronze
• Trim Material: Silicon Bronze
• Actuator Type: Handwheel
• Standards/Certifications: MSS SP-80
