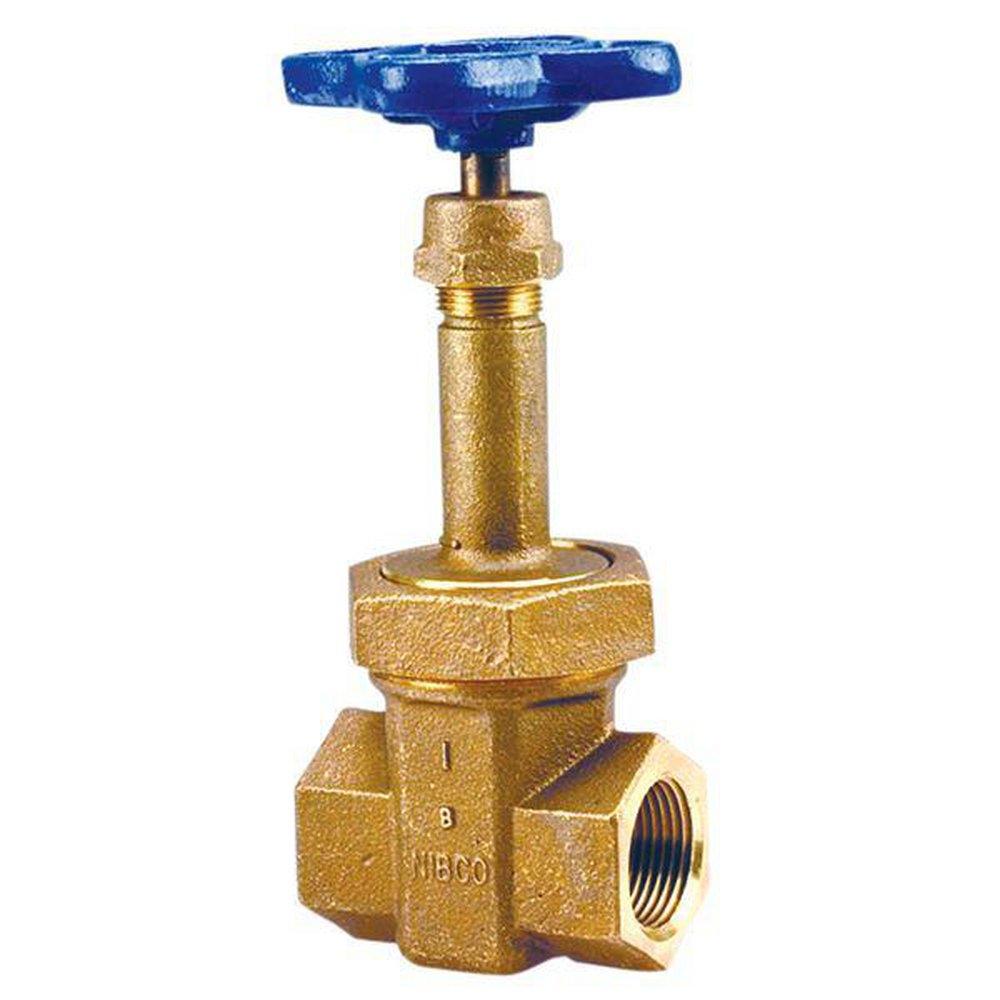

NIBCO NL2H005 T-174-A 3/8 in FNPT Gate Valve

Product Description

The NIBCO NL2H005 is a bronze gate valve designed for a variety of applications. This valve features a block pattern and is suitable for commercial and industrial settings. Its robust construction makes it fit for high-pressure steam and general utility services.

• Nominal size of three-eighths inches
• Handwheel actuator for ease of operation
• Threaded ends for simple installation

Product Highlights

Ideal for medium to high-pressure steam applications, the NIBCO NL2H005 valve provides reliable service. It is recommended for use in HVAC systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL2H005

Technical Specifications

• Body Material: Bronze
• Nominal Size: 3/8 in
• Pressure Class: 300 lb
• Pressure Rating: 600 psi
• Actuator Type: Handwheel
• Inlet to Outlet Length: 2.06 in
• Top to Inlet Center: 4.81 in
• Trim Material: Silicon Bronze
• Softgoods Material: Aramid Fiber
• Domestic/Import: Domestic
• Type: Block Pattern
• Series: T-174-A
