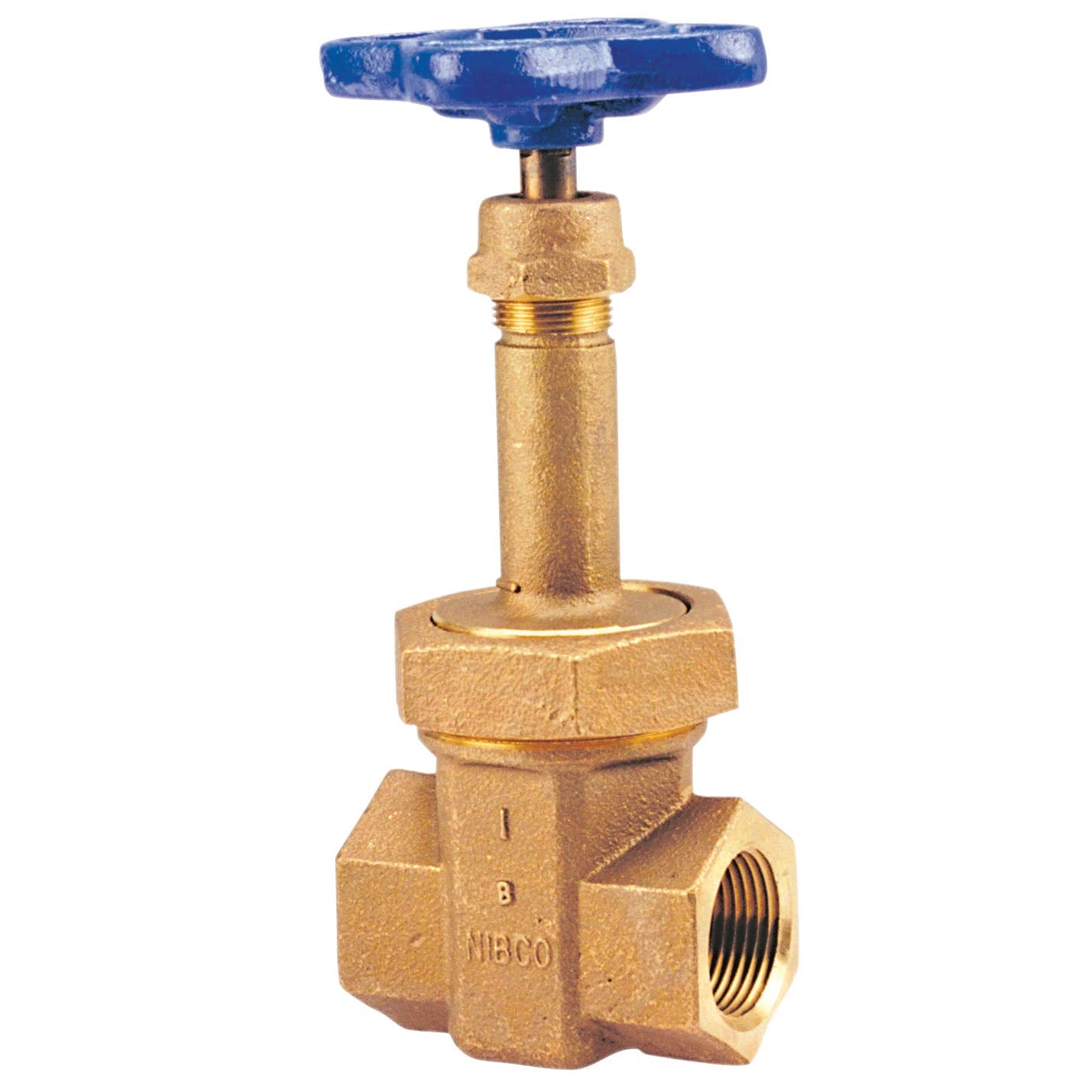

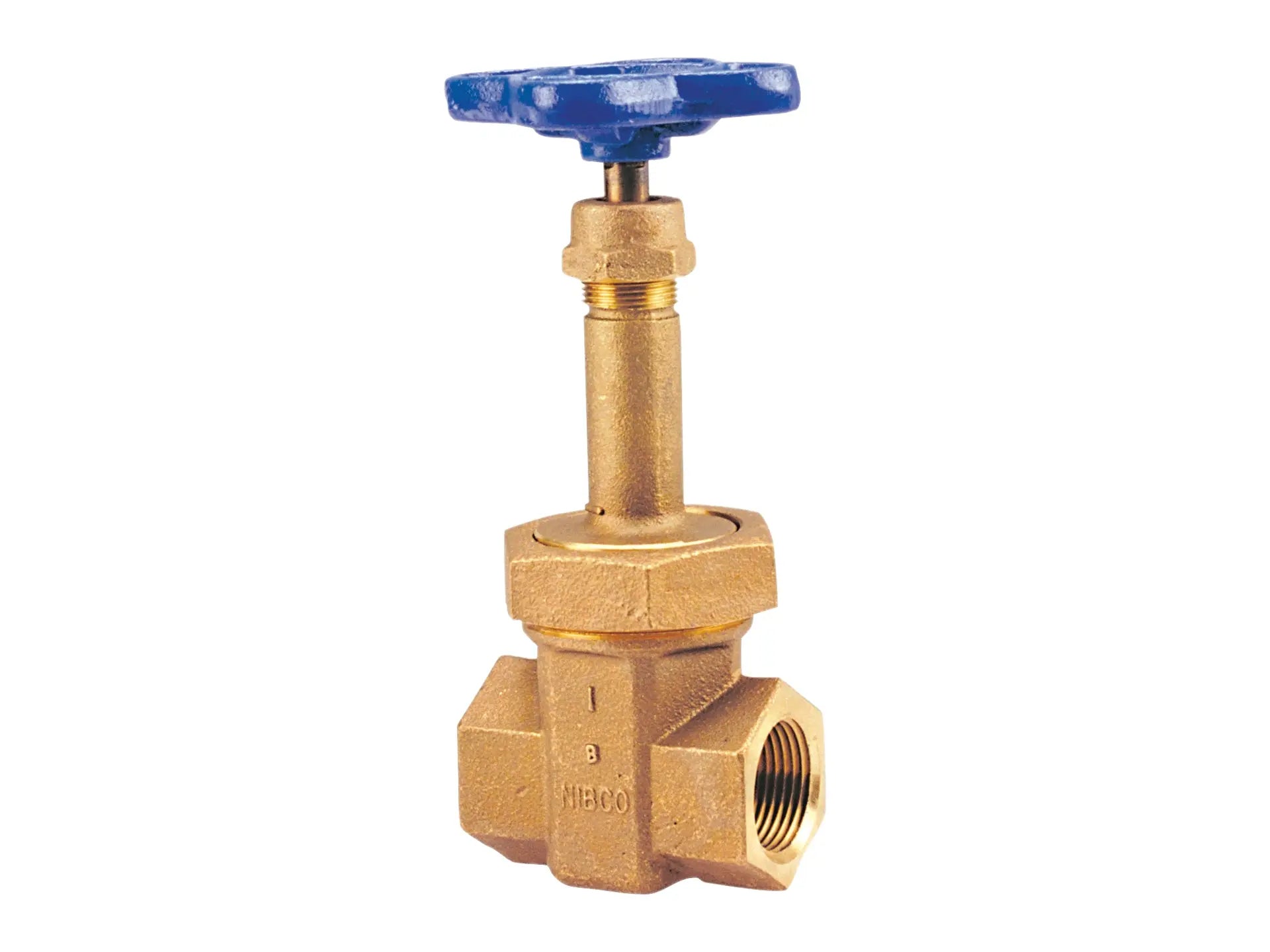

Nibco NL1Z00C Gate Valve 1-1/2 Bronz T154A 200# Thrd Screwed Bonnet

Product Description

The NIBCO NL1Z00C bronze gate valve features a union bonnet for service where reparability in-line is required. Rising stem gate valves are used when shutoff is required and a quick visual indicator of open/closed position is needed. Female threaded ends allow for ease of installation. The alloy solid wedge, integral seats and bi-directional service make the gate valve a good choice for higher pressures and temperature services.

• 200 psi/13. 8 bar saturated steam to 391 degree F/201 degree C
• 400 psi/20. 7 bar non-shock cold working pressure
• Rising stem

Product Highlights

This bronze gate valve is suitable for commercial and industrial applications, including HVAC and steam. It features threaded end connections and conforms to MSS SP-80.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL1Z00C
• Country of Origin: US

Technical Specifications

• Brand: NIBCO
• Manufacturer: NIBCO INC.
• Size: 1.5
• Product Type: VALVE
• Product Group: BISS
• UPC Code: 039923620064
• Type: Gate Valve
• Valve Size: 1 1/2
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Bronze
• Material: Bronze
• Description: T154A 1 1/2 THD 200# RS GATE BRZ
• Valve Operator: Standard Handwheel
• Turns/Operation: Multi-Turn
• Part Number: NL1Z00C
• Model: T-154-A
• Connection: 1-1/2" Female NPT Thread (FIPT)
• Cold Working Pressure: 400 psi
• Stem Design: Rising
• Bonnet Style: Union
• Maximum Temperature: 391°F
• Seat Style: Integral
• Handle Style: Standard Handwheel
• Length: 11.89"
• Width: 4.52"
• Height: 4.52"
• Pipe Size (Inch): 1-1/2
• End Connection: Threaded
• Body Material: Bronze
• Disc Style: Alloy Solid Wedge
• Pressure Class: 200
