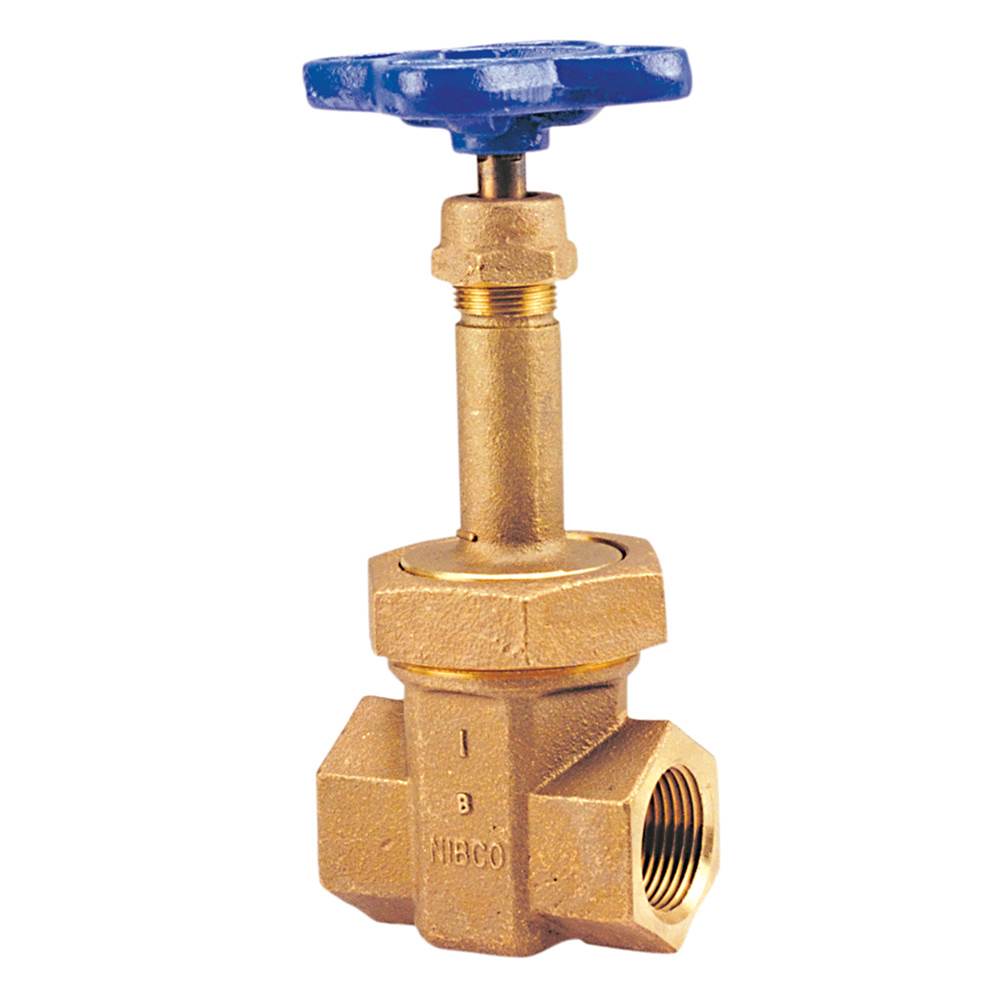

NIBCO NL1Z004 T154A 1/4 THD 200# RS GATE BRZ

Product Description

NIBCO NL1Z004 is a gate valve with a block pattern design used for controlling the flow of water in various applications. This model features a nominal size of one-fourth inch, with a threaded end style. It is capable of handling up to 400 psi pressure, making it suitable for medium to high pressure steam services.

• Actuator Type: Handwheel for easy operation
• Body Material: Bronze for durability and corrosion resistance
• Pressure Rating: 400 psi and 200 lb capacity for reliable performance

Product Highlights

The NIBCO NL1Z004 Gate Valve is ideal for both commercial and industrial applications. It offers significant control for HVAC systems and other utility services. The valve meets various standards for safety and reliability, including MSS SP-80.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Part Number: NL1Z004

Technical Specifications

• Nominal Size: 1/4 inch
• Pressure Class: 200 lb
• Pressure Rating: 400 psi
• Media: Water
• Inlet to Outlet Length: 1.88 inches
• Top to Inlet Center: 4.81 inches
• Trim Material: Silicon Bronze
• Softgoods Material: Aramid Fiber
