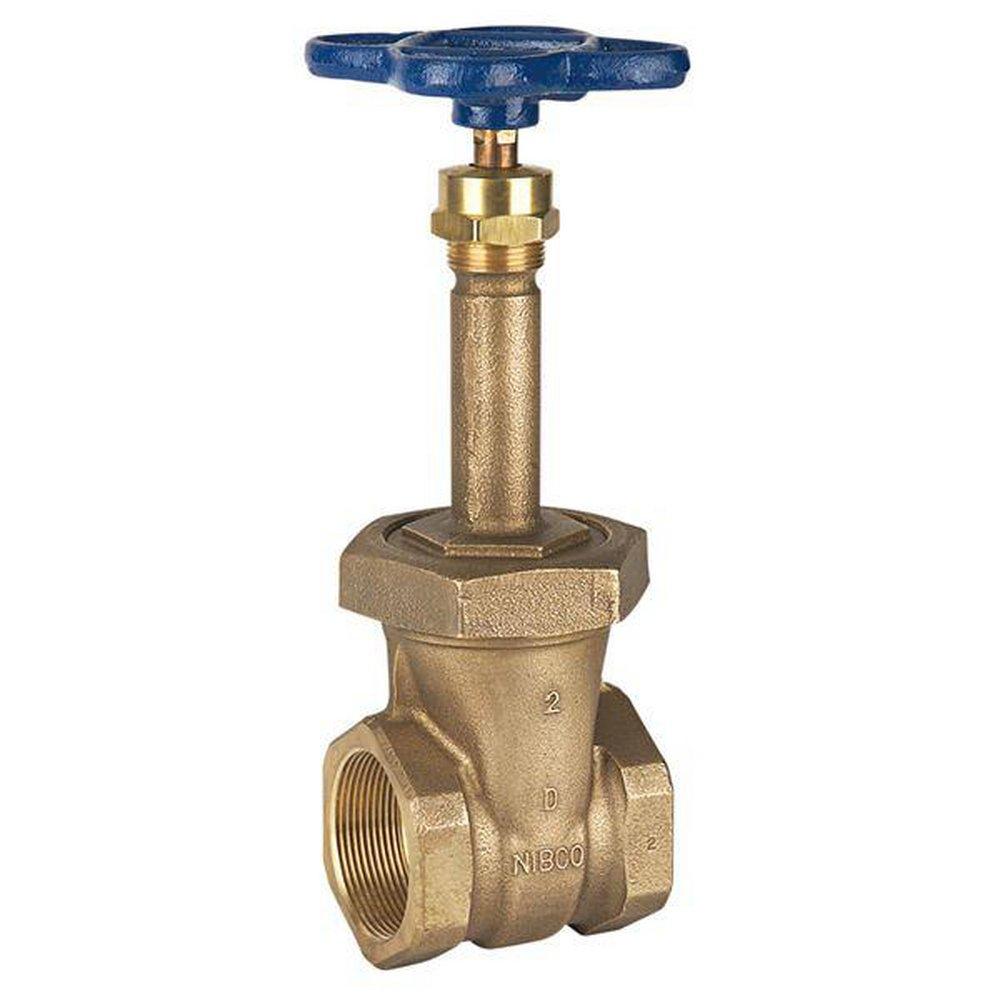

Nibco NL1M005 T-134 3/8 in. Bronze Full Port FNPT Gate Valve

Product Description

The Nibco NL1M005 T-134 3/8 in. Bronze Full Port FNPT Gate Valve is a reliable choice for various applications.

• Made with durable bronze material
• Features a rising stem design
• 300 psi non-shock cold working pressure

Product Highlights

This gate valve is suitable for use in commercial and industrial settings, including HVAC, steam, water, and gas applications. It features a solid wedge and threaded end connections for ease of installation.

Product Information

Standard Information

• Manufacturer: Nibco Inc
• Series: T-134

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• End Style: Threaded

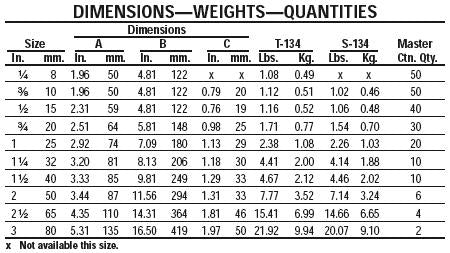

• Inlet to Outlet Length: 1.96 inches
• Media: Air/Gas/Water
• Nominal Size: 3/8 inches
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 4.81 inches

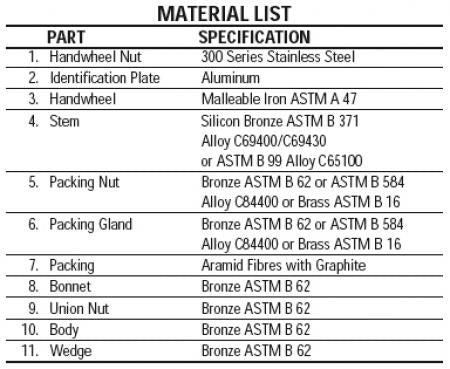

• Material Specifications: ASTM A47, ASTM B371, C69400, C69430, ASTM B99, C65100, ASTM B62, ASTM B584, ASTM B16, C36000
• Packaging Material: Aramid Fibers with Graphite
• Seal Material: Bronze
• Seat Material: Bronze
• Stem Material: Silicon Bronze
• Standards/Certifications: MSS SP-80 certified
