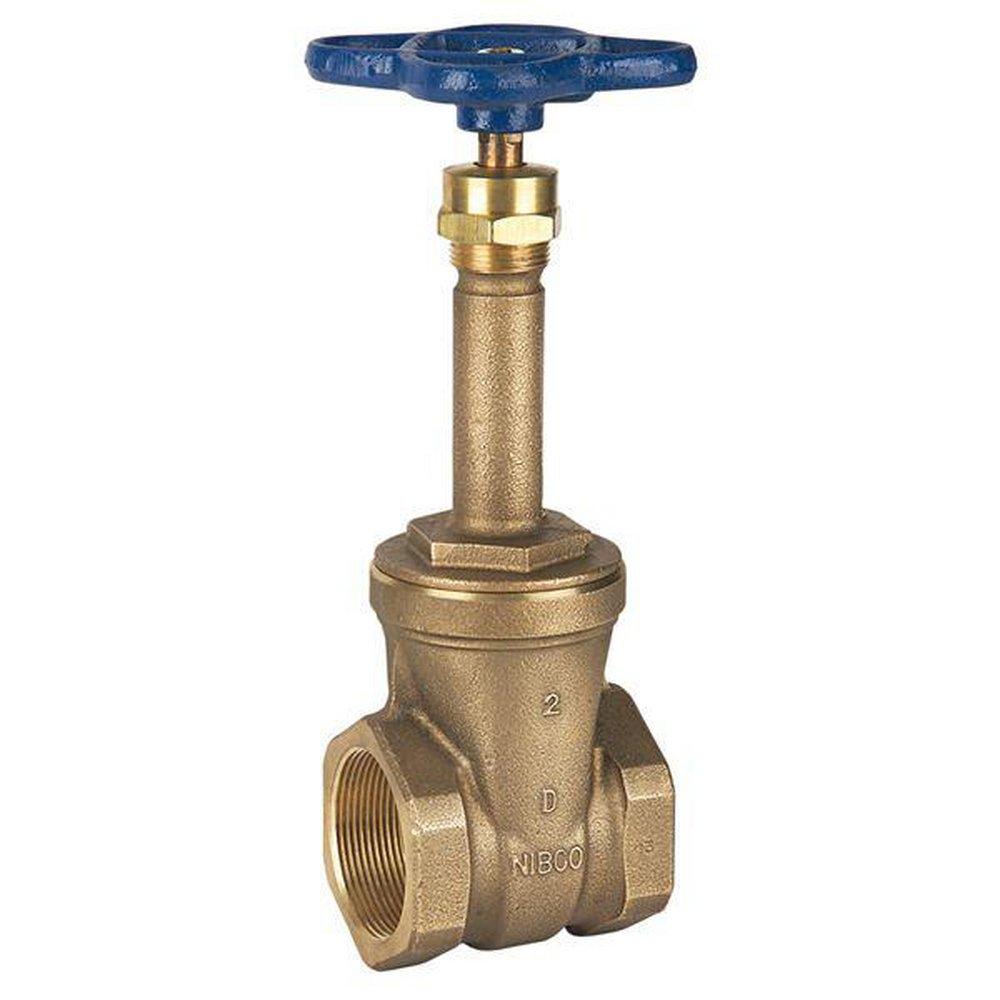

NIBCO NL1C008 T-131 3/4 in. Bronze Full Port FNPT Gate Valve

Product Description

The NIBCO NL1C008 is a gate valve designed for various applications. This valve features a bronze body and is equipped with a handwheel actuator for easy operation. The nominal size of this valve is three-fourths of an inch. It is suitable for media such as air, gas, and water. This valve is compliant with MSS SP-80 standards. It is important to note that use in U.S. drinking water applications is prohibited after January 3, 2014.

• 150 psi saturated steam to 366 degrees Fahrenheit
• Rising stem for easy visual indication
• Dezincification resistant construction

Product Highlights

This NIBCO valve is ideal for commercial and industrial environments. It allows for reliable shut-off and versatility in utility services.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 3/4 in

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Trim Material: Silicon Bronze
• End Style: Thread
• Inlet to Outlet Length: 2.31 in
• Pressure Rating: 300 psi
• Series: T-131
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 5.81 in
