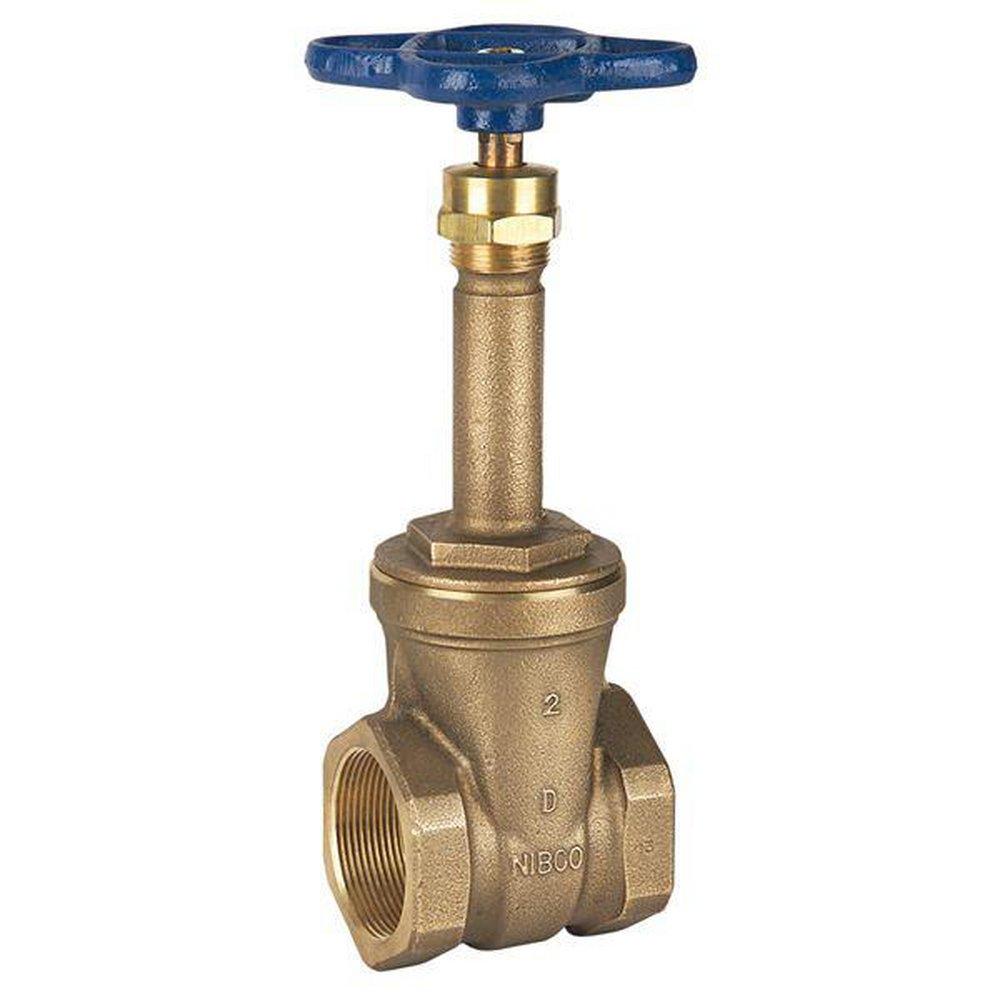

NIBCO NL1C006 T-131 1/2 in. Bronze Full Port FNPT Gate Valve

Product Description

The NIBCO NL1C006 is a bronze gate valve designed for reliable service in a variety of applications. It features a female threaded end style, making it easy to install in pipelines. This gate valve operates with a rising stem for clear visibility of the open and closed positions. It is suitable for use with air, gas, and water. The valve is constructed to handle pressures up to three hundred psi.

• 150 psi saturated steam to 366 °F
• Dezincification resistant
• Aramid fiber packing

Product Highlights

This valve is ideal for commercial and industrial systems including HVAC, steam, and plumbing. It is certified to MSS SP-80 standards, ensuring quality and performance.

Product Information

Standard Information

• Brand: NIBCO
• MPN: NL1C006

Technical Specifications

• Nominal Size: 1/2 in
• Connection Type: FNPT
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Media: Air/Gas/Water
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Length from Inlet to Outlet: 2.31 in
• Height from Top to Inlet Center: 4.81 in
• Softgoods Material: Aramid Fiber
