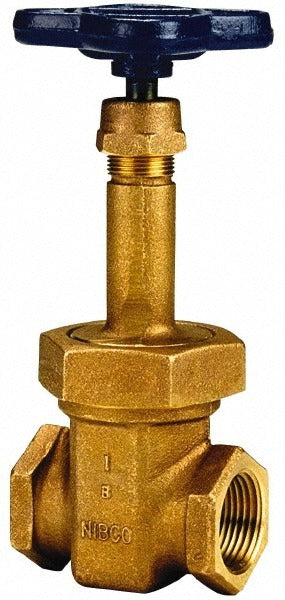

Nibco NL0Z008 Bronze Gate Valve 3/4 in Threaded 125

Product Description

The NIBCO NL0Z008 is a 3/4-inch threaded bronze gate valve designed for isolation service in plumbing, mechanical, and hydronic piping systems. It features a rising stem design with a solid wedge disc and a union bonnet, allowing the stem and disc assembly to be removed for inspection or service without cutting the pipe. The wheel handle provides manual on/off control. Rated at 125 pressure class and built to MSS SP-80 standards, this valve is suited for low-pressure water, oil, and gas applications in both residential and light commercial installations. Licensed plumbers and pipefitters are the primary installers.

This valve is a standard choice for threaded piping systems where full-bore flow and positive shutoff are required. Common applications include domestic water supply isolation, boiler room piping, and hydronic heating circuits. The 3/4-inch pipe size is among the most common sizes in residential and light commercial construction. The bronze body resists corrosion in potable water and moderate-temperature fluid service, making it appropriate for a wide range of mechanical room and in-wall installations.

Key Features

• Rising stem design provides a visible indication of valve position, open or closed
• Union bonnet allows stem and disc removal for in-line maintenance without pipe disconnection
• Solid wedge disc delivers positive shutoff and reliable seating under pressure
• Bronze body construction resists corrosion in water and compatible fluid service
• Threaded end connections for direct installation into NPT piping systems
• Conforms to MSS SP-80 standards for bronze gate valves

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for 3/4-inch threaded bronze piping systems conforming to MSS SP-80 service requirements.

Installation Notes

Installation is performed by a licensed plumber following applicable IPC or local plumbing code requirements. Shut off upstream supply and depressurize and drain the line before installing or servicing this valve. Apply thread sealant or PTFE tape to male NPT threads and tighten to hand-tight plus the appropriate number of turns for the fitting size per the sealant manufacturer and code requirements. Do not over-torque the bonnet or use the wheel handle as a wrench during installation.
