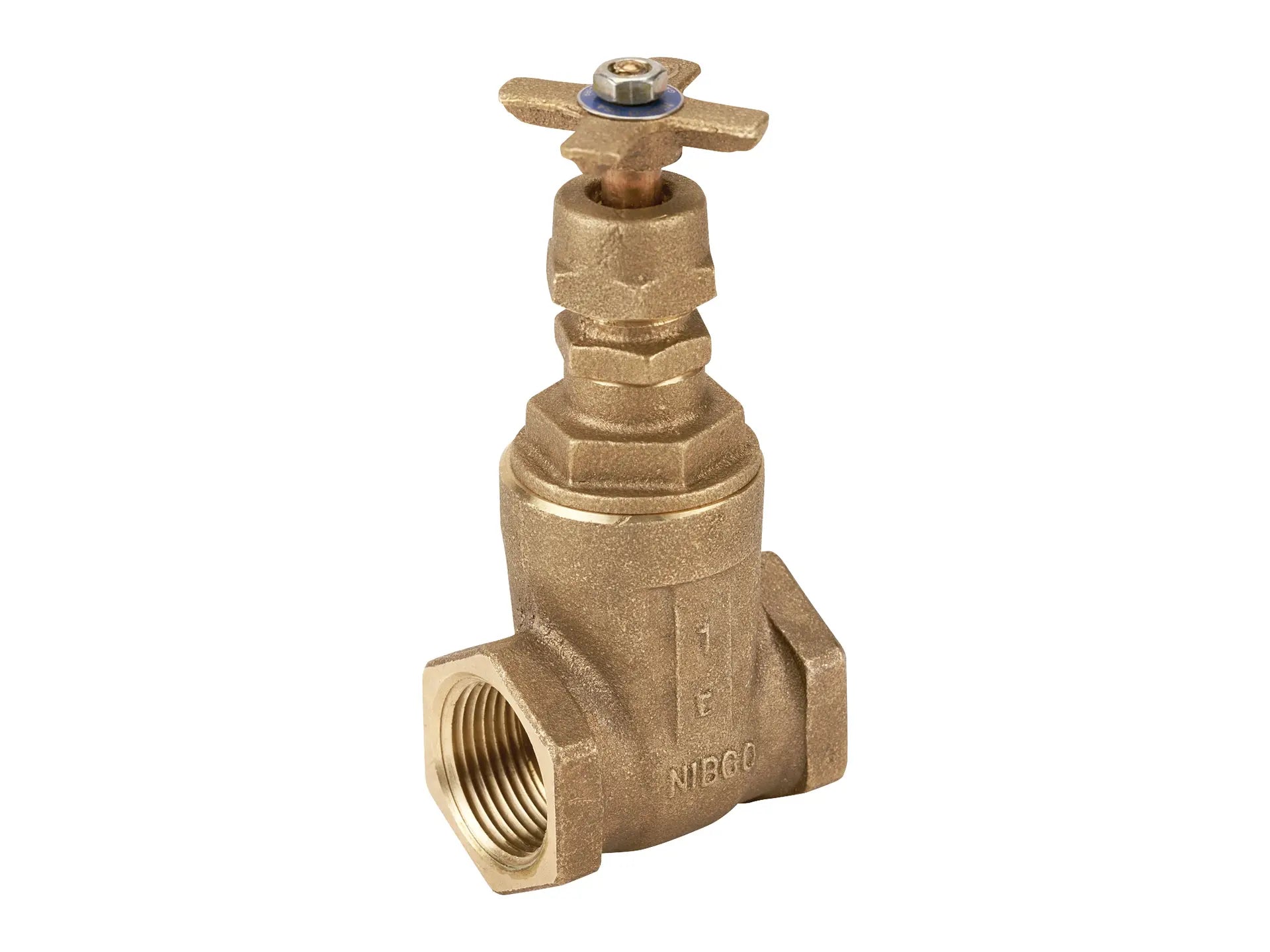

Nibco NL0JE0C T-113-K Gate Valve Bronze, Class 125, Irrigation 1-1/2 inches

Product Description

The NIBCO bronze gate valve NL0JE0C features a screw-in bonnet for service where infrequent maintenance is required. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for irrigation services. The female threaded ends allow for ease of installation.

• Screw-in bonnet
• Solid wedge
• Integral seats

Product Highlights

Choose NIBCO gate valves for the most versatile and economical valve option in irrigation applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL0JE0C
• Country of Origin: China

Technical Specifications

• UPC Code: 039923615879
• Type: Gate Valve
• Valve Size: 1 1/2
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Bronze
• Material: Bronze
• Description: T113K 1 1/2 GATE W/CROSS HW
• Valve Operator: Cross Handwheel
• Turns/Operation: Multi-Turn
• Brand: NIBCO
• Model: NL0JE0C
• MPN: NL0JE0C
• Country of Origin: China
• Pressure Rating: 125 PSI
• Connection Size: 1-1/2 in.
• Body Material: Bronze
• Includes: Cross Handle
• Item: Valve
• Operating Type: Manual
• Regulated: No
• Brand Name: Nibco
• Part Number: NL0JE0C
• Nominal Pipe Size: 1-1/2"
• Seat Seal Material: Bronze
• Gate Stem Design: Non-Rising Stem
• Multi-Turn Operator: Cross Handwheel
• Multi-Turn Bonnet Design: Screw-in Bonnet
• Trim Package: Bronze Wedge
• Pressure Rating (CWP): 200 psi/13.8 Bar CWP
• Pressure Rating (SWP): 125 psi/8.6 Bar SWP
