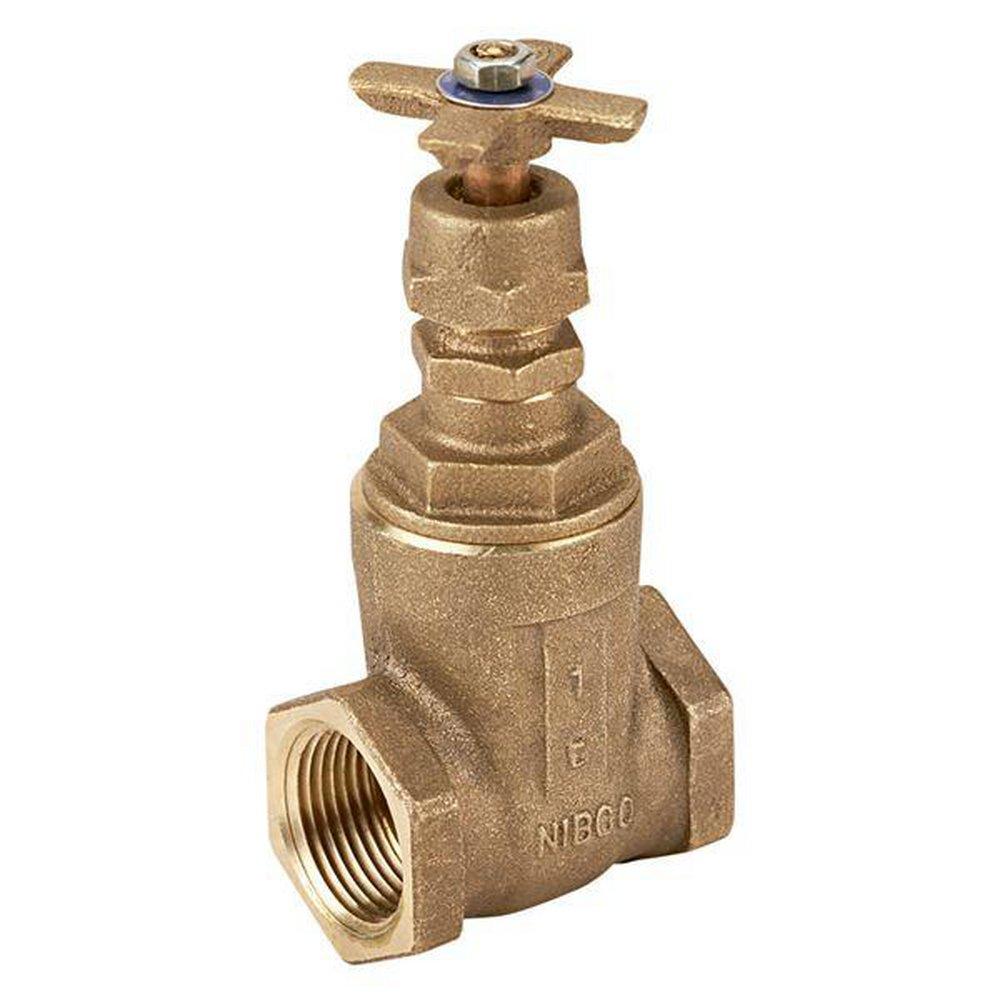

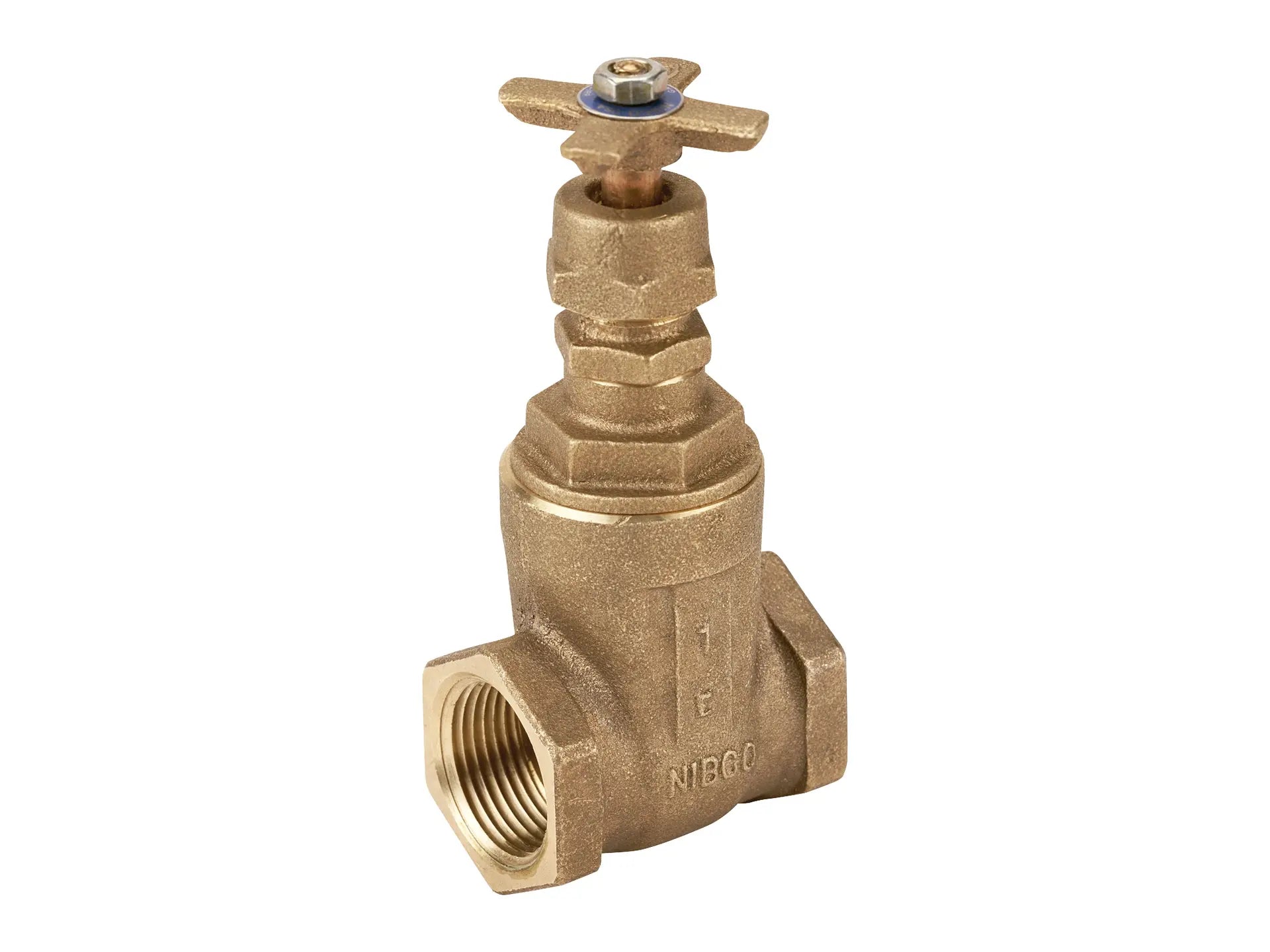

Nibco NL0JE08 T-113-K Gate Valve 3/4 in.

Product Description

The NIBCO NL0JE08 bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. The solid wedge, integral seats, and bi-directional service make the gate valve a good choice for irrigation services. The female threaded ends allow for ease of installation. It conforms to MSS SP-80.

• Full Port
• FNPT End Connections
• Bronze Material

Product Highlights

This NIBCO gate valve is a versatile and economical valve option for irrigation applications. It features a non-rising stem and is dezincification resistant.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL0JE08
• Country of Origin: US

Technical Specifications

• End Connections: Threaded
• Material: Bronze
• Nominal Size: 3/4 in.
• UPC Code: 039923615848
• Type: Gate Valve
• Valve Size: 3/4"
• Connection Type: T -- Female NPT Thread (FIPT)
• Seat Material: Bronze
• Description: T113K 3/4 GATE W/CROSS HW
• Valve Operator: Cross Handwheel
• Turns/Operation: Multi-Turn
• Manufacturer: NIBCO
• Part Number: NL0JE08
• Model: T-113-K
• Nominal Pipe Size: 3/4"
• Seat Seal Material: Bronze
• Gate Stem Design: Non-Rising Stem
• Multi-Turn Operator: Cross Handwheel
• Multi-Turn Bonnet Design: Screw-in Bonnet
• Trim Package: Bronze Wedge
• Pressure Rating (CWP): 200 psi/13.8 Bar CWP
• Pressure Rating (SWP): 125 psi/8.6 Bar SWP
• Length: 4.64"
• Width: 2.06"
• Height: 1.95"
• Connection Size: 3/4 in.
• Body Material: Bronze
• Item: Valve
• Operating Type: Manual
• Regulated: No
• Brand Name: Nibco
• Pressure Rating: 125 PSI
