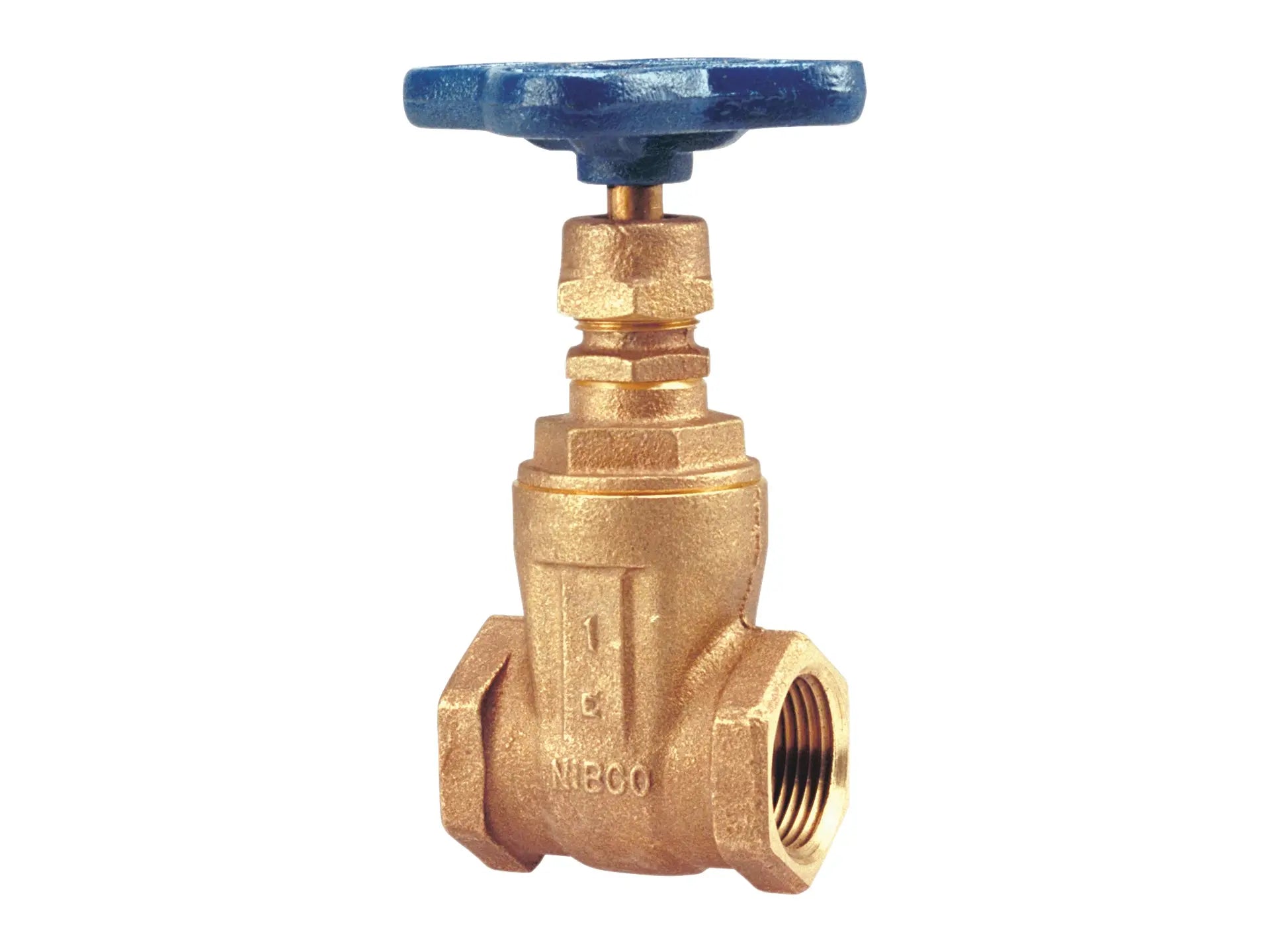

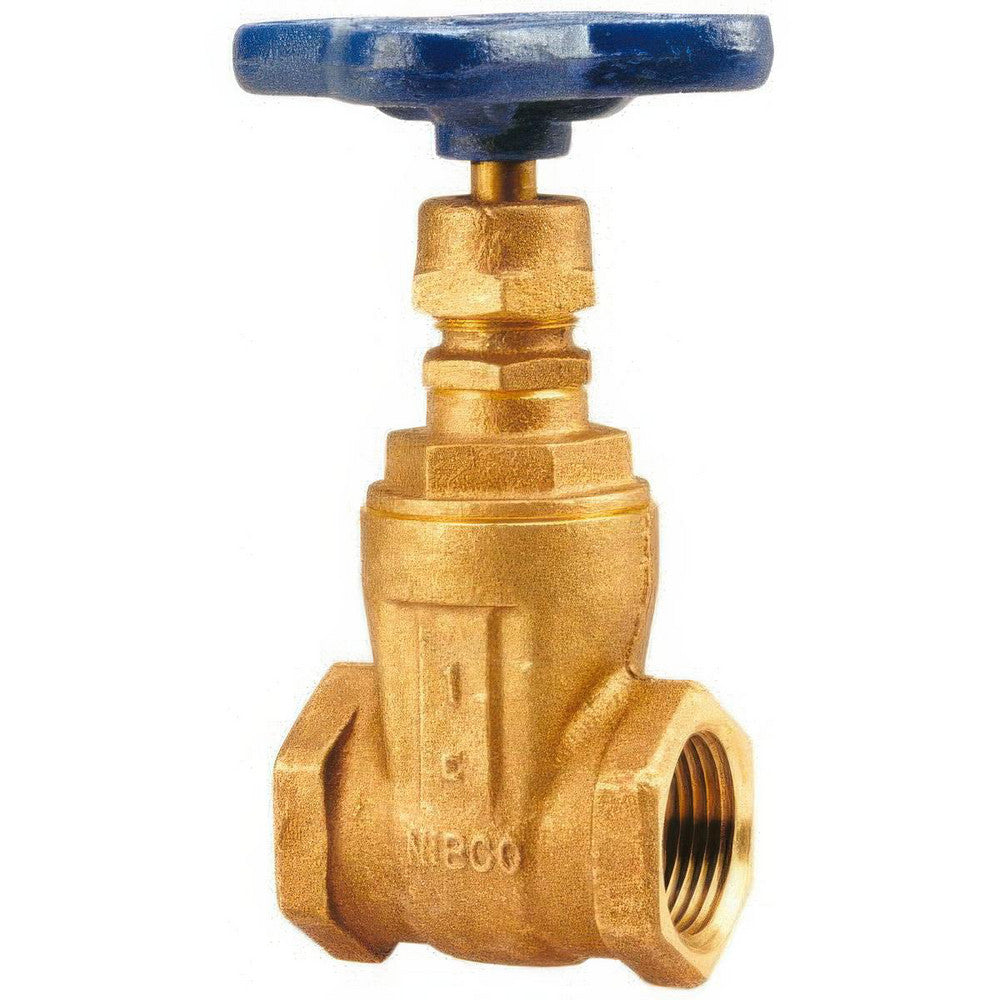

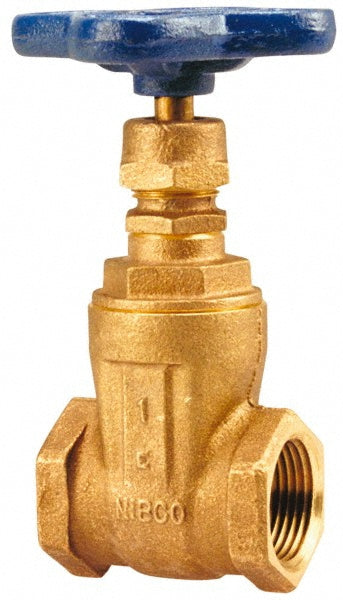

Nibco NL0J24D T113BHW Gate Valve 2 Inch

Product Description

The NIBCO NL0J24D bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. The female threaded ends allow for ease of installation. Non-rising stem gate valves are used when shutoff is required and a space saving is necessary.

• 200 psi/13.8 bar non-shock cold working pressure
• Non-rising stem
• Screw-in bonnet

Product Highlights

This gate valve features a screw-in bonnet for service where infrequent maintenance is required. The solid wedge, integral seats and bi-directional service make it a good choice for a broad range of services.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL0J24D
• Country of Origin: UNITED STATES

Technical Specifications

• Material: Bronze
• Series: T-113-BHW
• Valve Size: 2"
• Valve Type: Gate Valve
• Pipe Size (Inch): 2
• End Connection: Threaded
• Disc Style: Solid Wedge
• Body Material: Bronze
• Pressure Class: 125
• Bonnet Style: Screw-In
• MPN: NL0J24D
• Brand: Nibco
• Model: NL0J24D
• Manufacturer: NIBCO
• Part Number: NL0J24D
• Type of Valve: Gate
• Nominal Pipe Size: 2"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Seat Seal Material: Bronze
• Gate Stem Design: Non-Rising Stem
• Turns Operations: Multi-Turn
• Multi-Turn Operator: Bronze Handwheel
• Multi-Turn Bonnet Design: Screw-in Bonnet
• Trim Package: Bronze Wedge
• Pressure Rating (CWP): 200 psi/13.8 Bar CWP
• Pressure Rating (SWP): 125 psi/8.6 Bar SWP
• Length: 8.59"
• Width: 3.55"
• Height: 3.06"
• Pipe Size: 2"
