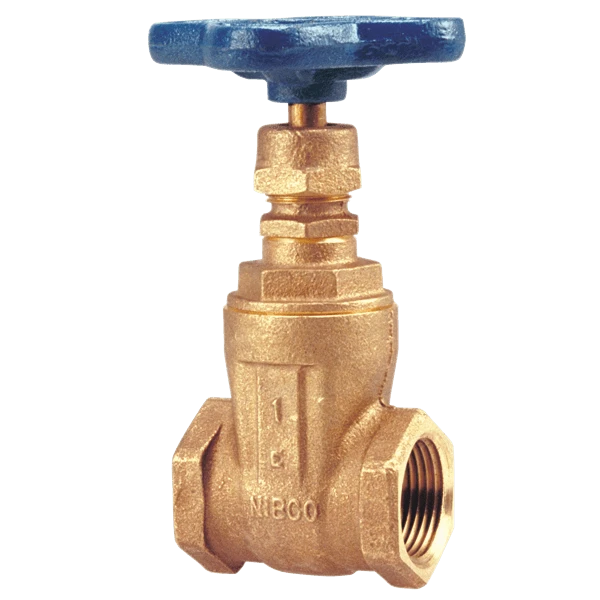

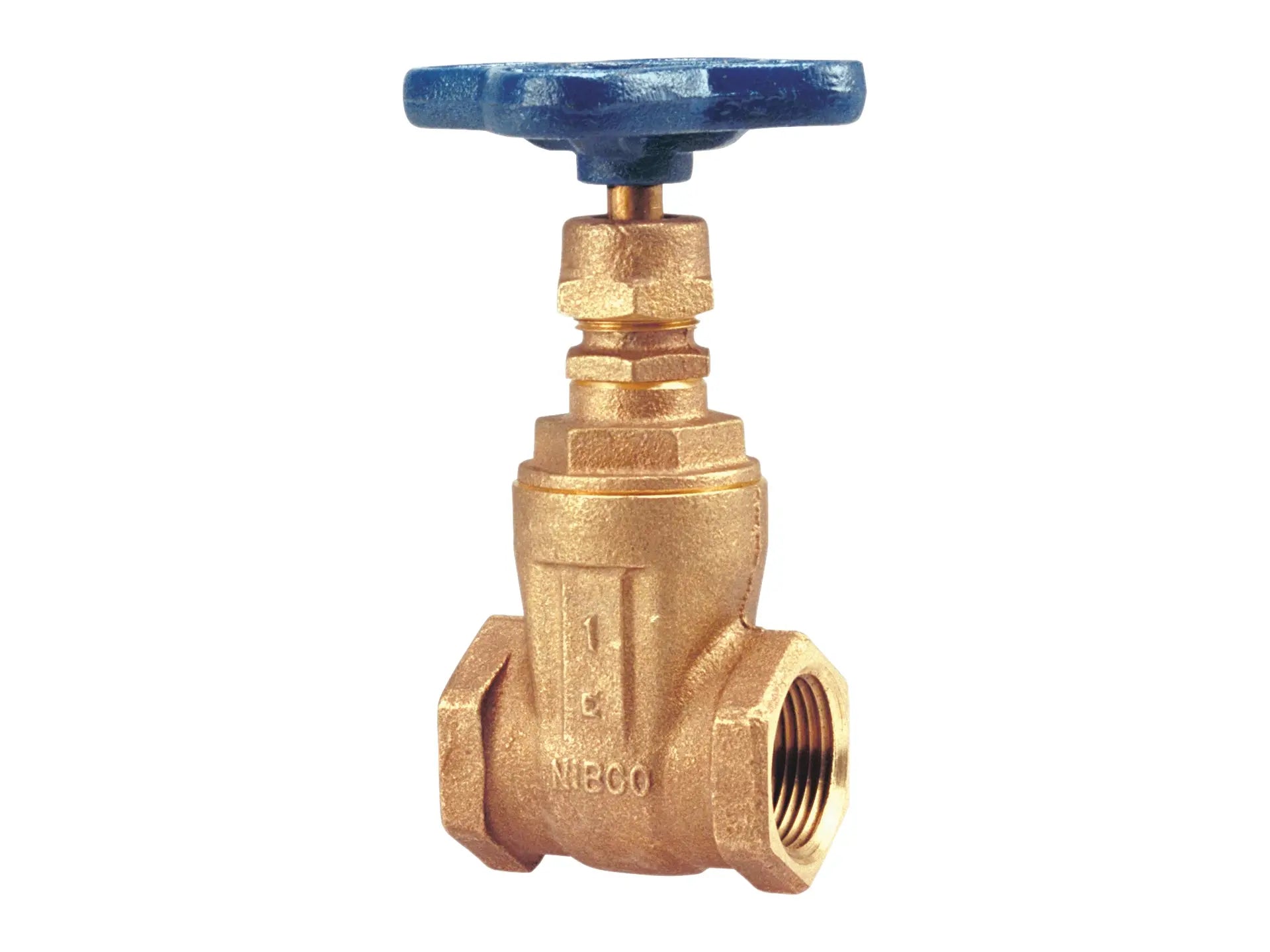

Nibco NL0J24C T113bhw nrs Gate Valve 1-1/2 in.

Product Description

The NIBCO NL0J24C bronze gate valve features a screw in bonnet for service where infrequent maintenance is required. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. Multi-turn operation. The gate valve may be used in commercial and industrial applications.

• The Nibco bronze gate valve features a screw in bonnet for service where infrequent maintenance is required
• The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services
• Multi-turn operation

Product Highlights

The NIBCO gate valve is a versatile and economical valve option in commercial, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL0J24C
• Country of Origin: US

Technical Specifications

• Connection Type: Fipt
• Pressure Rating: 125 PSI
• Connection Size: 1-1/2 in.
• Body Material: Bronze
• Includes: Bronze Hand Wheel
• Item: Gate Valve
• Type: Gate
• Series: NRS Series
• Operating Type: Manual
• Regulated: No
• Brand Name: Nibco
• Manufacturer: NIBCO
• Part Number: NL0J24C
• Model: T-113-BHW
• Nominal Pipe Size: 1-1/2"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Seat Seal Material: Bronze
• Gate Stem Design: Non-Rising Stem
• Turns Operations: Multi-Turn
• Multi-Turn Operator: Bronze Handwheel
• Multi-Turn Bonnet Design: Screw-in Bonnet
• Trim Package: Bronze Wedge
• Pressure Rating (CWP): 200 psi/13.8 Bar CWP
• Pressure Rating (SWP): 125 psi/8.6 Bar SWP
• Material: Bronze
• Potable Water Code: Not LL Comp not intend potable
• UPC Code: 039923615558
• Length: 7.5"
• Width: 3.55"
• Height: 2.88"
• Bonnet Style: Screw In
• Disc Style: Solid Wedge
• Handle Type: Wheel
• Pipe Size: 1 1/2"
• Department: PLUMBING - ALL
