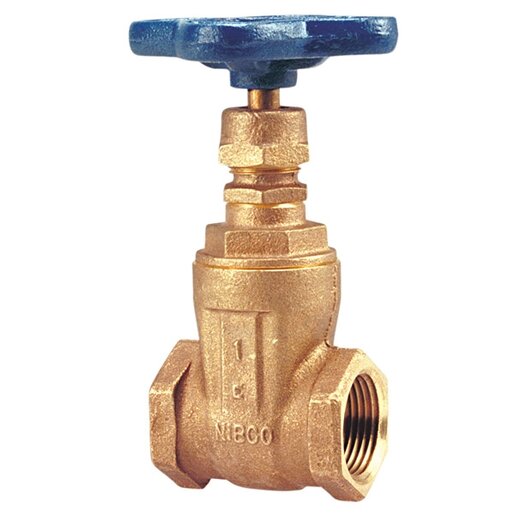

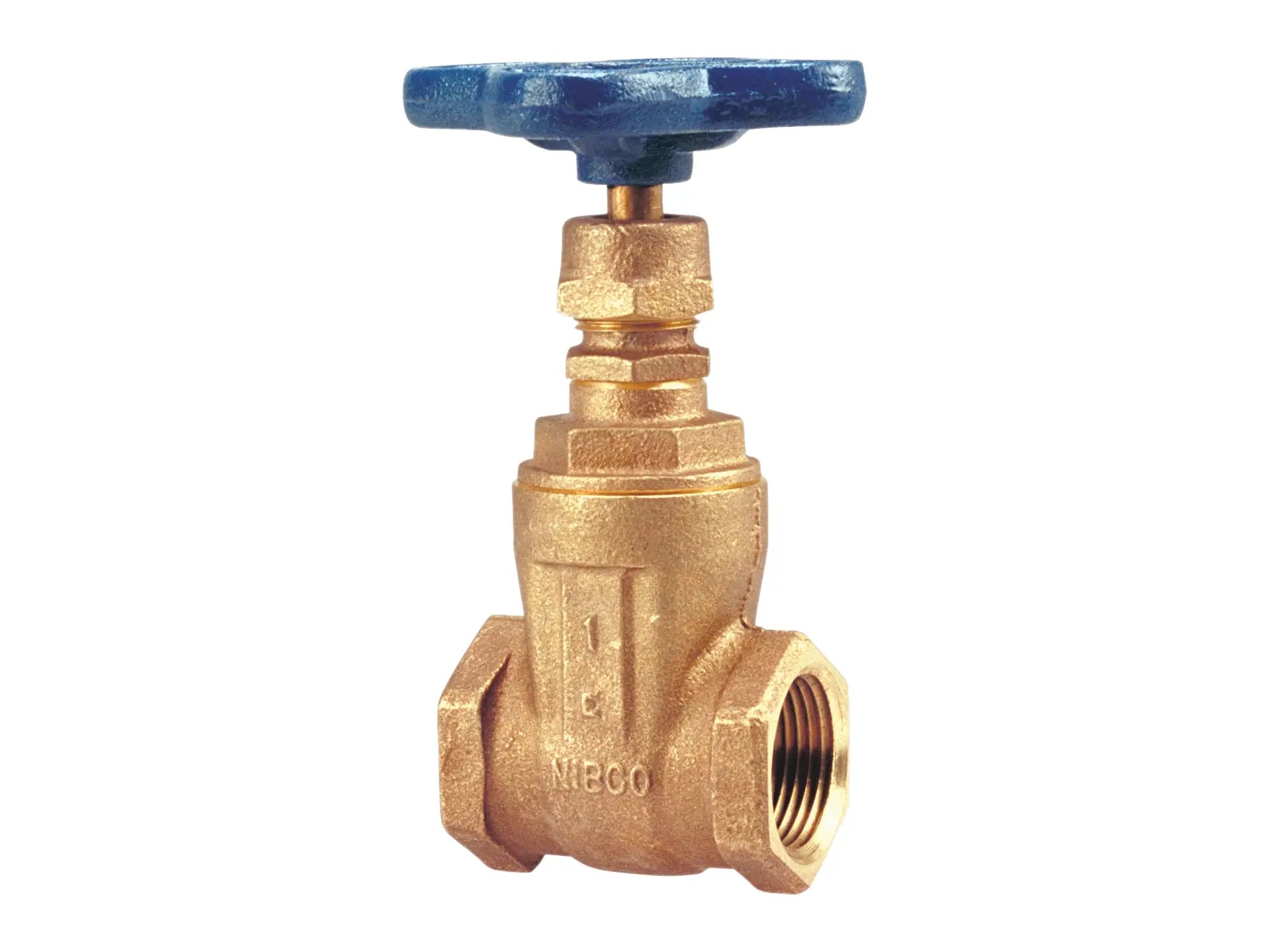

Nibco NL0J24A Gate Valve Bronze 1 in. T-113-BHW

Product Description

The NIBCO NL0J24A bronze gate valve features a screw-in bonnet for service where infrequent maintenance is required. The female threaded ends allow for ease of installation. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services.

• 200 psi/13.8 bar non-shock cold working pressure
• Non-rising stem
• Screw-in bonnet

Product Highlights

This NIBCO bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL0J24A
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NL0J24A
• Model: T-113-BHW
• Type of Valve: Gate
• Nominal Pipe Size: 1"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Seat Seal Material: Bronze
• Gate Stem Design: Non-Rising Stem
• Turns Operations: Multi-Turn
• Multi-Turn Operator: Bronze Handwheel
• Multi-Turn Bonnet Design: Screw-in Bonnet
• Trim Package: Bronze Wedge
• Pressure Rating (CWP): 200 psi/13.8 Bar CWP
• Pressure Rating (SWP): 125 psi/8.6 Bar SWP
• Material: Bronze
• UPC Code: 039923615534
• Length: 5.52"
• Width: 2.56"
• Height: 2.44"
• Body Material: Bronze
• Bonnet Style: Screw In
• Disc Style: Solid Wedge
• Handle Type: Wheel
• Pipe Size: 1"
• Connection Type: Fipt
• Pressure Rating: 125 PSI
• Connection Size: 1 in.
• Includes: Bronze Hand Wheel
• Item: Valve
• Series: NRS Series
• Operating Type: Manual
• Regulated: No
• Brand Name: Nibco
