Product Description

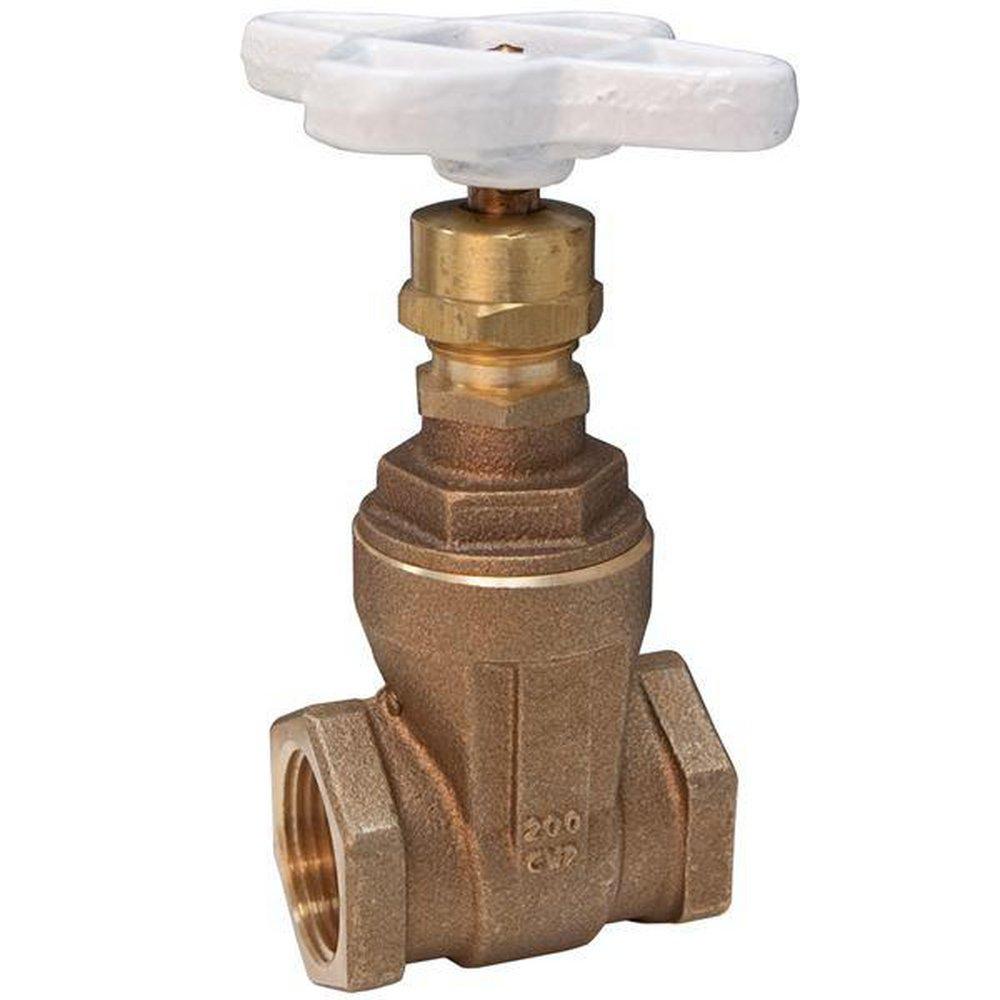

The Nibco NL0J0X8 T-113 3/4 inch Silicon Bronze Full Port NPT Gate Valve is engineered to provide dependable, positive shutoff. Featuring a sturdy non-rising stem design, it is ideal for applications where space-saving is important.
- Non-rising stem gate valve
- Lead-free, constructed from silicon bronze
- Threaded ends for simple installation
Product Highlights
Designed for commercial and residential construction, this valve is designed for applications that deliver water for human consumption. Its solid wedge, integral seats, and bi-directional service make it versatile across various services.
Product Information
Standard Information
-
Brand: Nibco
-
MPN: NL0J0X8
-
Model: T-113-LF
-
Manufacturer: Nibco Inc
Technical Specifications
-
Body Material: Silicon Bronze
-
Trim Material: Silicon Bronze
-
Stem Material: Copper
-
Seal Material: Bronze
-
Pressure Rating: 300 psi
-
Temperature Rating: 300 deg F
-
Connection Type: FNPT
-
Nominal Size: 3/4 inch
-
Hand Wheel Diameter: 1.95 inches
-
Inlet to Outlet Length: 2.06 inches
-
Top to Inlet Center: 3.94 inches
-
Dimensions: 4.64 inches (H)
-
Series: T-113-LF
-
Applications: For applications delivering water for human consumption, including commercial and residential construction
-
Standards/Certifications: MSS SP-139, ANSI/NSF 61-8 Annexure F and G, ANSI/NSF 372 certified
