Nibco NL0J00F T-113 3 Inch FNPT 125 lb Bronze Gate Valve

Product Description

The Nibco NL0J00F T-113 3 Inch FNPT Bronze Gate Valve is designed for robust commercial and industrial applications. With a pressure rating of 125 psi for saturated steam and 200 psi for cold non-shock working pressure, this valve ensures reliable performance in HVAC, steam, and compressed air systems, along with many other utility services.

• Non-rising stem
• Bronze body and silicon bronze trim
• FNPT end style

Product Highlights

Ideal for hot and cold water systems, the Nibco gate valve features a screw-in bonnet and a solid wedge design. The aramid fiber packing and bronze construction make it suitable for various demanding applications.

Product Information

Standard Information

• Manufacturer: Nibco Inc
• Series: T-113

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Nominal Size: 3 in
• End Style: FNPT
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Trim Material: Silicon Bronze
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 1.94 in
• Inlet to Outlet Length: 4.5 in
• Stem Material: Silicon Bronze
• Seat Material: Bronze
• Packaging Material: Aramid Fibers with Graphite
• Connection Type: FNPT
• Temperature Rating: 178 Deg C
• Industry Standards: MSS SP-80, ASTM B62, ASTM A47, ASTM B371, ASTM B584, ASTM B16

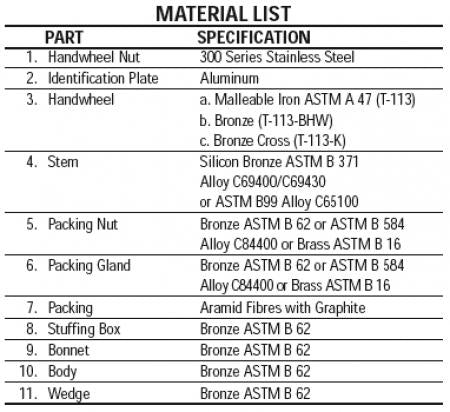

• Additional Information: Handwheel Nut: 300 Series Stainless Steel, Identification Plate: Aluminum, Handwheel: Malleable Iron, Packing Gland: Bronze Alloy, Stuffing Box: Bronze, Wedge: Bronze, Packaging: 4/Carton

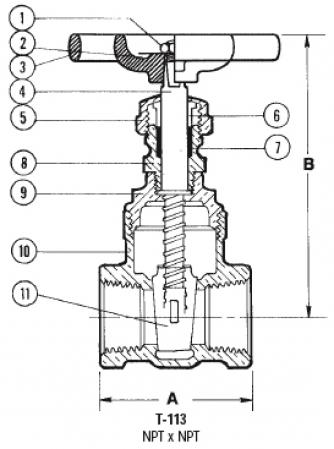

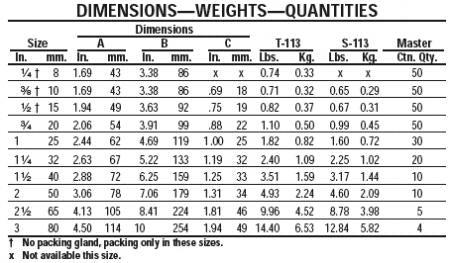

• Dimensions: A: 4.50 inch, B: 10 inch, C: 1.94 inch
• Warranty: 5 years limited warranty
