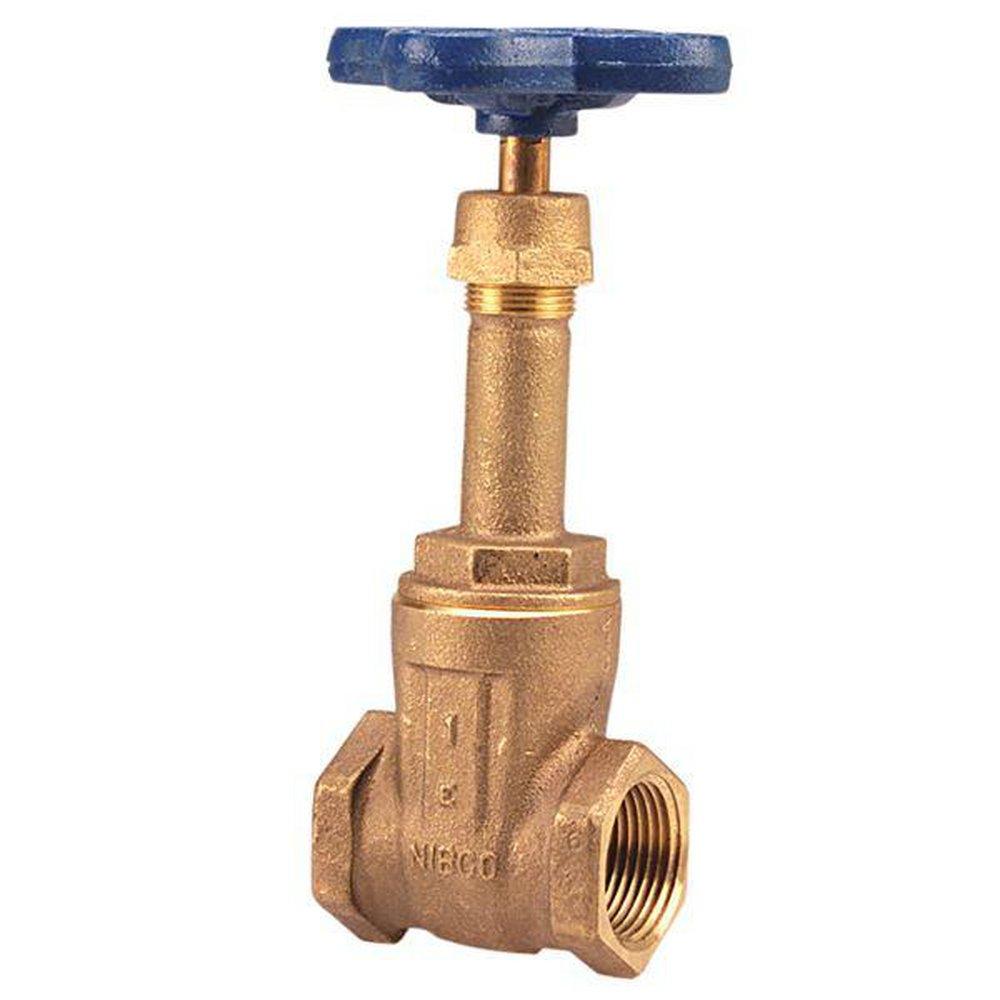

NIBCO NL0500C T-111 1-1/2 in Bronze Full Port FNPT Gate Valve

Product Description

The NIBCO T-111, MPN NL0500C, is a 1-1/2 inch bronze gate valve designed for various applications that require reliable shut-off. This valve features female threaded ends for easy installation. It is suitable for use in hot and cold water systems, steam, and gas applications. The screw-in bonnet design makes it easy to maintain.

• Use in commercial and industrial applications
• Designed for air, gas, and water media
• 200 psi non-shock cold working pressure

Product Highlights

This valve provides excellent performance in a variety of systems while ensuring durability and ease of use.

Product Information

Standard Information

• Valve Type: Gate Valve
• End Connection: FNPT

Technical Specifications

• Pressure Class: 125 lb
• Body Material: Bronze
• Trim Material: Silicon Bronze
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi Cold Working Pressure
• Actuator Type: Handwheel
• Inlet to Outlet Length: 2.88 in
• Top to Inlet Center: 9.81 in
