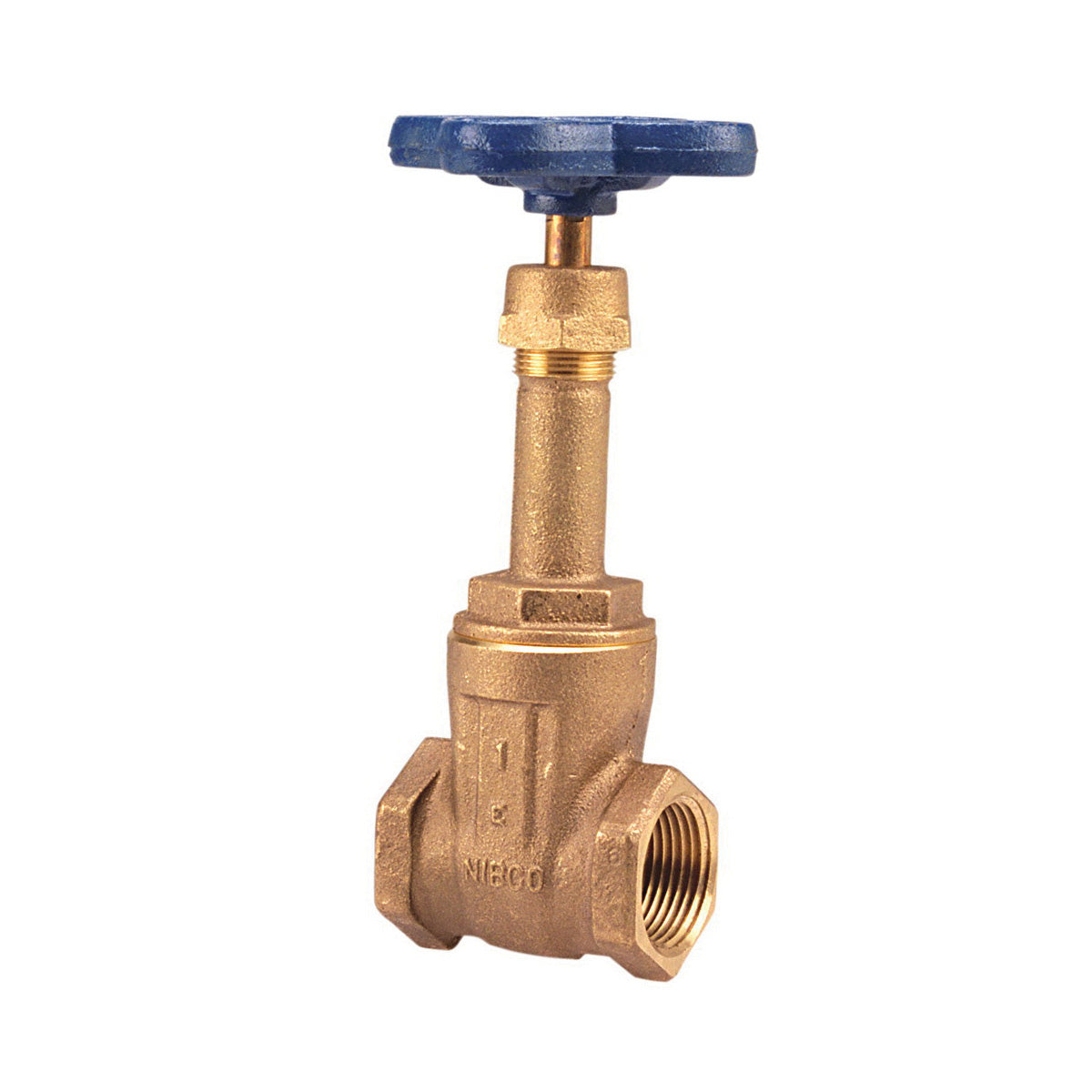

NIBCO NL0500B Gate Valve 1-1/4 in Nominal Thread End Style 125 lb

Product Description

The NIBCO NL0500B is a bronze gate valve designed for reliability across numerous applications. This valve has a screw-in bonnet ideal for infrequent maintenance needs. Its female threaded ends allow for easy installation, making it suitable for use in various settings. This gate valve is particularly useful when a quick visual indication of the open or closed position is necessary, thanks to its rising stem design. The solid wedge and integral seats ensure efficient operation and versatility in service.

Applications include commercial and industrial uses such as hot and cold water, HVAC systems, steam, compressed air, gas, and other general utility services. NIBCO NL0500B gate valves are engineered to provide dependable performance in a range of conditions.

• Features a screw-in bonnet for easy maintenance.
• Rising stem for quick open/closed indication.
• Suitable for air, gas, and water media.

Product Highlights

The NIBCO NL0500B gate valve meets the requirements of various applications, offering long-lasting service with minimal maintenance.

Product Information

Standard Information

• Brand: NIBCO Inc.
• Model Number: NL0500B

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: Thread
• Inlet to Outlet Length: 2.63 inches
• Media: Air/Gas/Water
• Nominal Size: 1-1/4 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 8.13 inches
• Trim Material: Silicon Bronze
