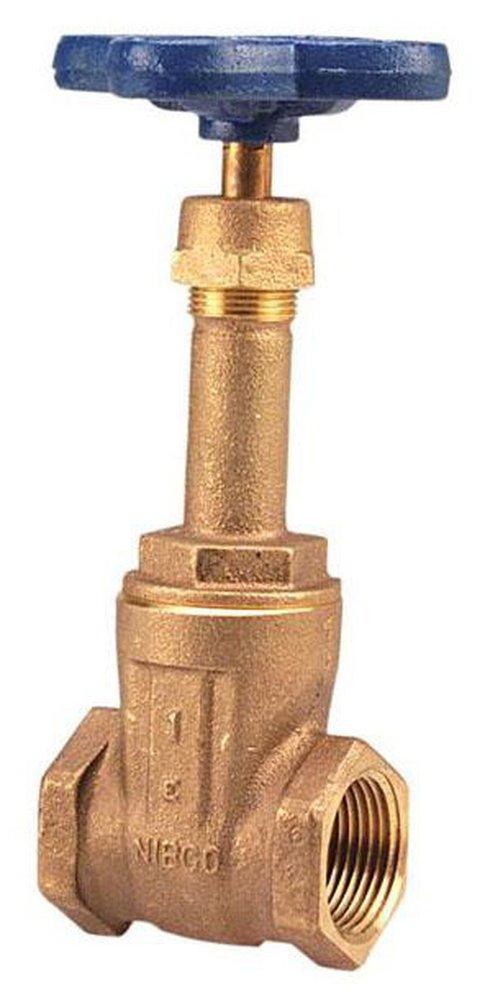

NIBCO NL0500A T-111 1 in. Bronze Full Port FNPT Gate Valve

Product Description

The NIBCO NL0500A is a bronze gate valve designed for reliable performance in various plumbing applications. This valve features a thread end style with a nominal size of one inch. It operates under a pressure rating of two hundred psi and a pressure class of one hundred twenty-five pounds. Its screw-in bonnet design allows for infrequent maintenance, making it suitable for both commercial and industrial use.

• Dezincification-resistant bronze body
• Handwheel actuator for smooth operation
• Ideal for hot and cold water, HVAC, steam, and gas services

Product Highlights

This NIBCO gate valve offers a solid wedge and integral seats, ensuring bi-directional service for varied applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-111
• Nominal Size: 1 in

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Inlet to Outlet Length: 2.44 in
• Top to Inlet Center: 7.09 in
• Media: Air/Gas/Water
• Softgoods Material: Aramid Fiber
