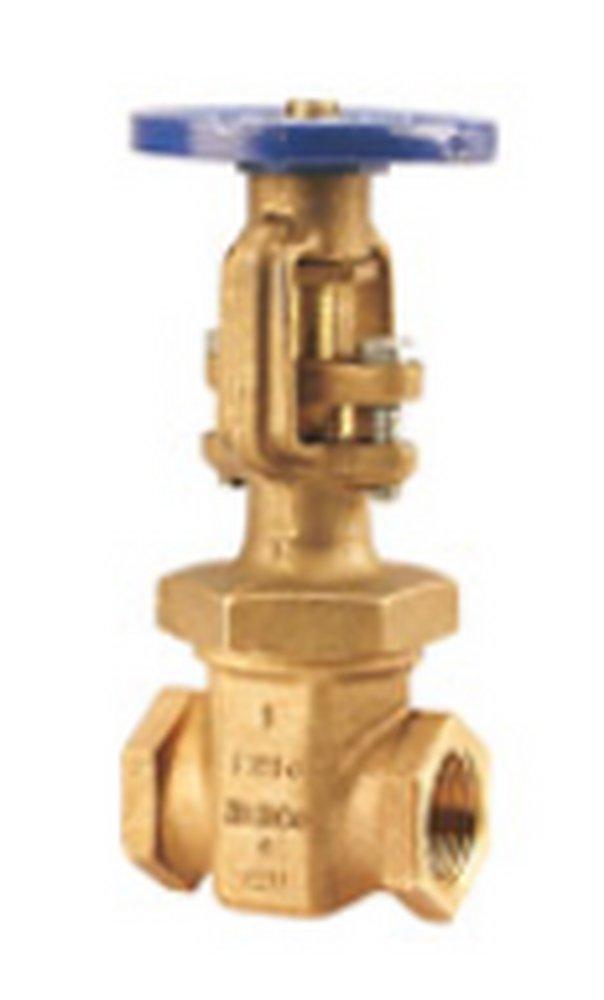

NIBCO NL03L0C Model T1040 1-1/2 in Bronze FNPT Gate Valve

Product Description

The NIBCO NL03L0C is a bronze gate valve designed for fire protection applications. With a nominal size of one and one-half inches, this valve operates using a handwheel actuator and is suitable for use in automatic sprinkler systems. The valve structure includes a rising stem and features a screw-over bonnet. It is crafted from bronze with silicon bronze trim, ensuring durability in demanding environments.

• Constructed for automatic fire sprinkler systems
• Features outside screw and yoke for easy operation
• Dezincification resistant materials

Product Highlights

This gate valve ensures a reliable shut-off and easy visual indication of its status, making it suitable for multi-floor installations.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Model: T-104-O

Technical Specifications

• Connection Size: 1-1/2 in
• Connection Type: FNPT
• Pressure Rating: 175 psi
• Pressure Class: 125 lb
• Body Material: Bronze
• Actuator Type: Handwheel
• Inlet to Outlet Length: 3.38 in
• Top to Inlet Center: 9.38 in
• Softgoods Material: Graphite
• Standards/Certifications: UL/ULC listed, FM approved
