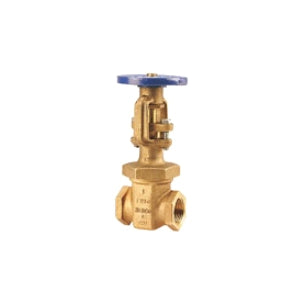

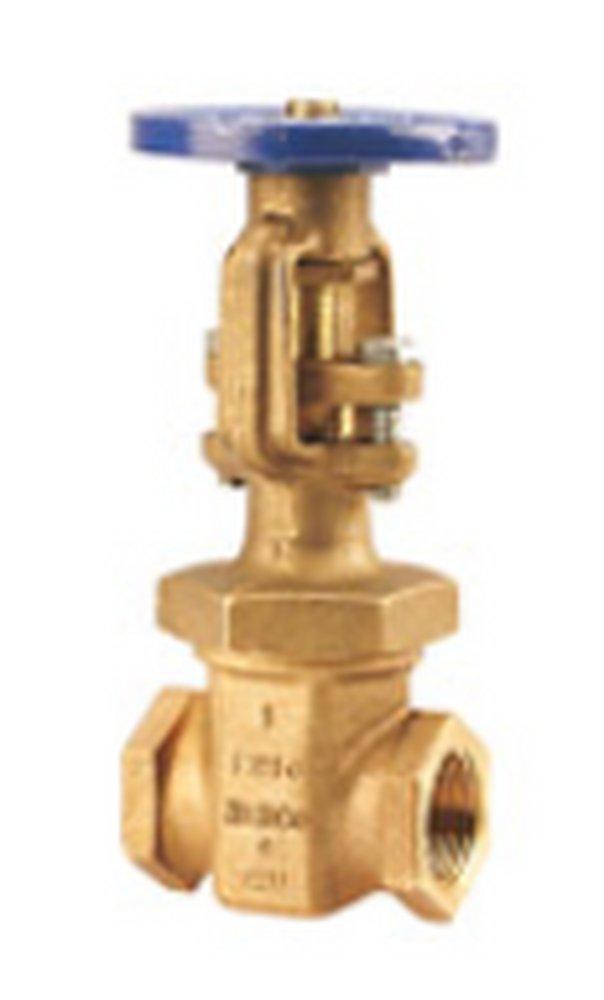

NIBCO NL03L0A Model T1040 1 in Bronze FNPT Gate Valve

Product Description

The NIBCO gate valve, MPN NL03L0A, offers reliable performance in controlling water flow. This valve is designed with a screw-over bonnet and female threaded ends. It features an outside screw and yoke (OS&Y) stem construction for enhanced durability.

• Reliable for fire protection applications
• Constructed from dezincification-resistant bronze
• FM Approved for safety

Product Highlights

This valve is suitable for commercial and industrial applications. It operates smoothly with a handwheel actuator for easy operation. The NIBCO gate valve is ideal for use in automatic sprinkler systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• MPN: NL03L0A

Technical Specifications

• Connection Size: 1 in
• Connection Type: FNPT
• Inlet to Outlet Length: 2.88 in
• Media: Water
• Nominal Size: 1 in
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Series: T-104-O
• Material: Bronze
• Softgoods Material: Graphite
• Trim Material: Silicon Bronze
• Top to Inlet Center: 7.44 in
