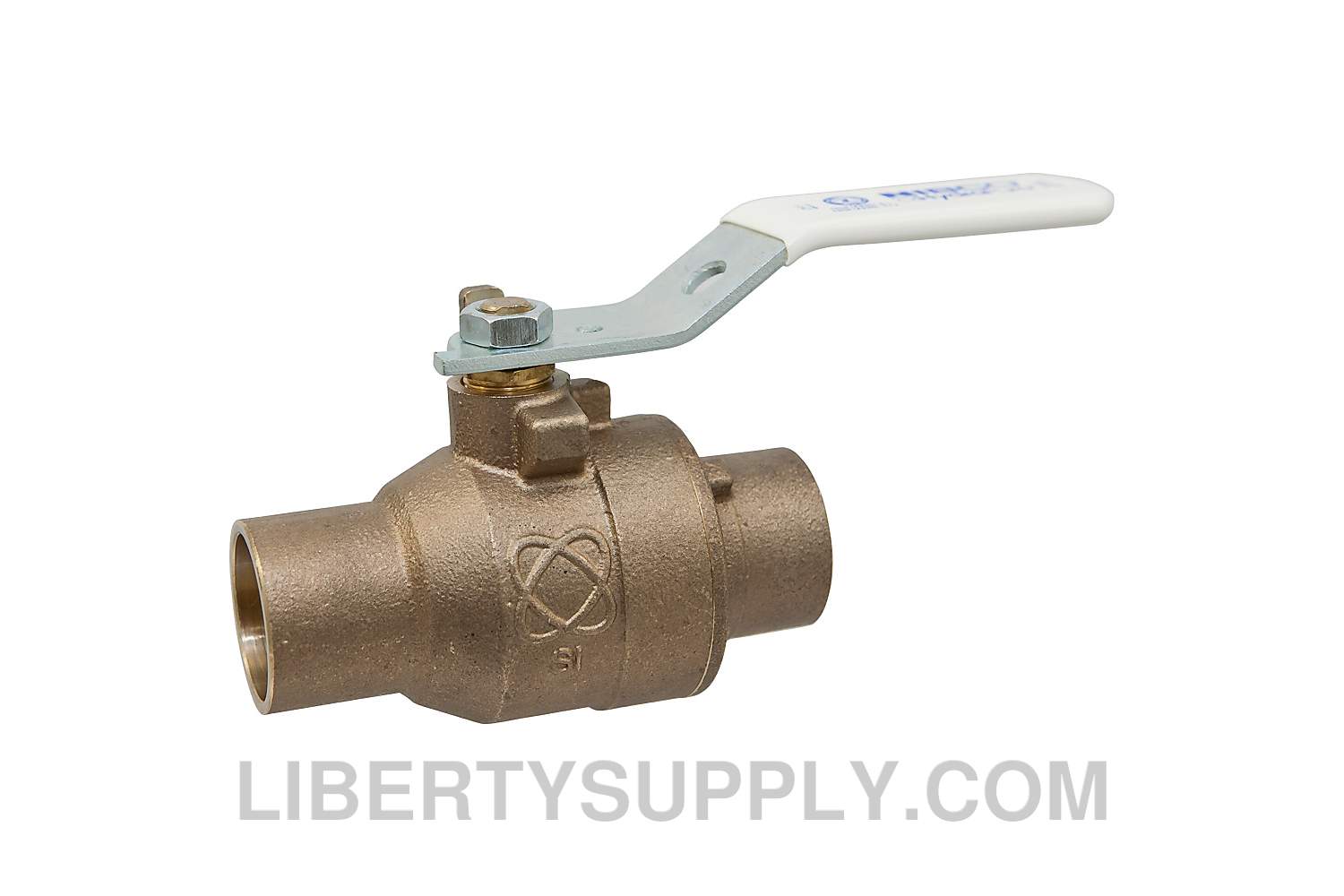

NIBCO NJB83XHB Ball Valve Lead-Free Bronze 1-1/4 Solder End

Product Description

The NIBCO NJB83XHB is a two-piece ball valve made from lead-free bronze. It features a silicon bronze stem and a stainless steel ball, making it suitable for potable water applications. The valve allows for a quarter-turn operation, transitioning from open to closed positions with ease.

• Lead-free bronze construction.
• Stainless steel ball and stem components.
• Solder end connections for easy installation.

Product Highlights

This valve is ideal for commercial, residential, mechanical, and industrial uses, providing reliable performance in various settings.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NJB83XHB

Technical Specifications

• Model: S-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/4
• End Connection Type: Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923338662
• Length: 8.79 inches
• Width: 4.25 inches
• Height: 2.31 inches
• Pressure Rating: 600 psi
• Temperature Rating: 300°F
