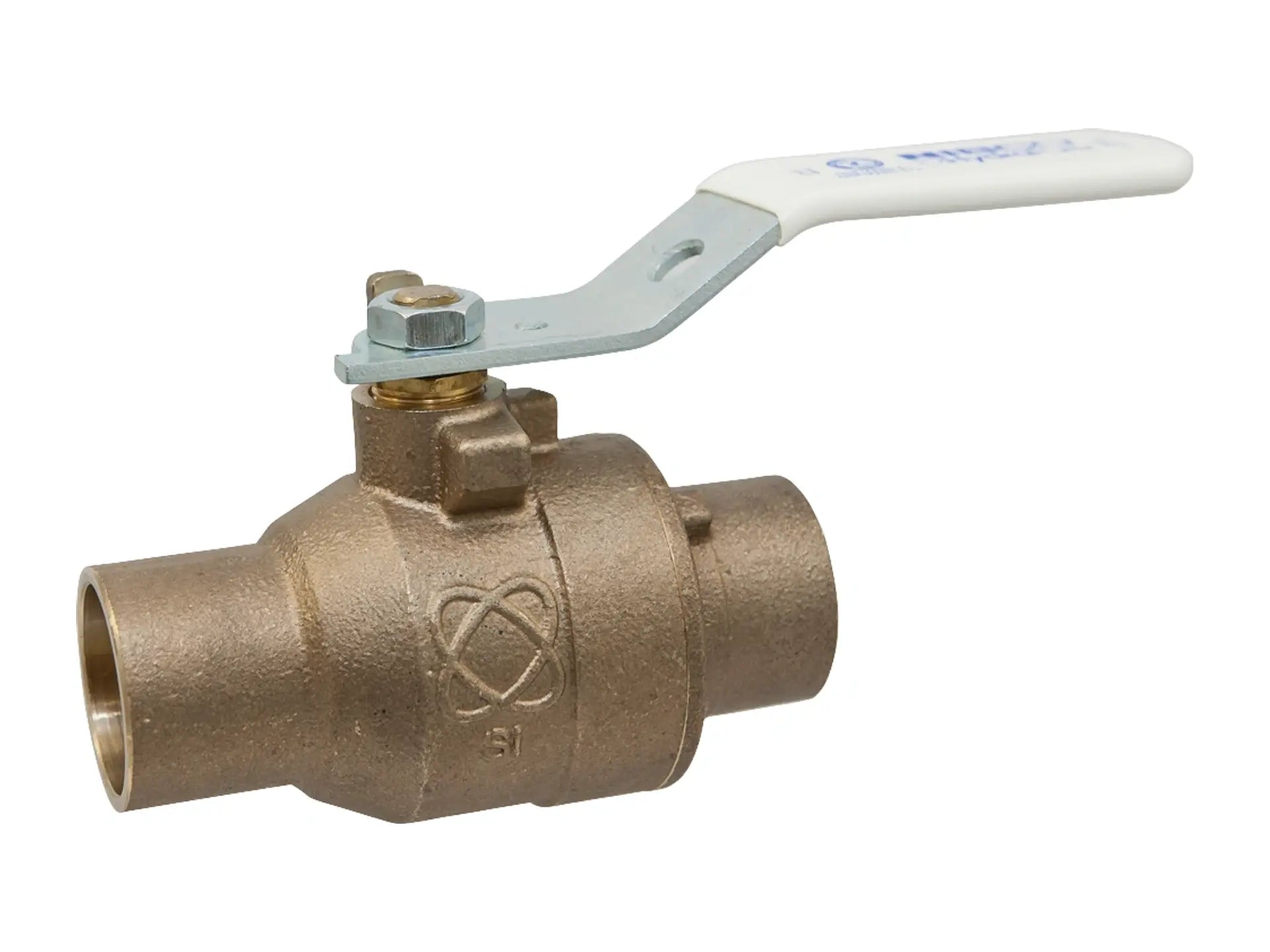

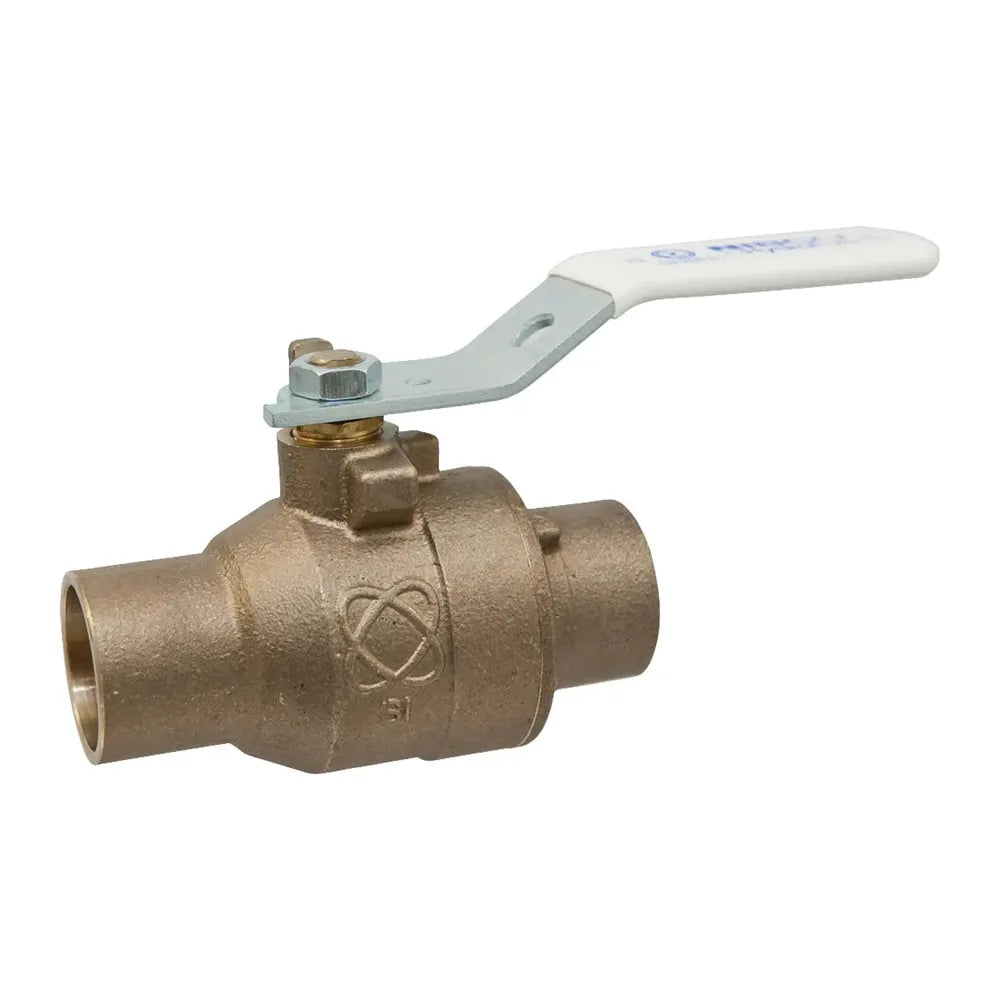

Nibco NJB83TXC Two-Piece Bronze Ball Valve 1-1/2 in. x 1-1/2 in.

Product Description

The NIBCO NJB83TXC is a lead-free bronze ball valve made of silicon performance bronze alloy. This two-piece valve provides a bubble-tight shutoff at 600 psi and is dezincification resistant. It features solder ends for easy installation and is suitable for residential and commercial construction applications that deliver water for human consumption.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Lead-free bronze, full port ball valve with reinforced PTFE seat rings and silicon bronze stem and ball.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83TXC

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NJB83TXC
• Model: S-585-80-LF-NS
• Application: Lead-Free
• System Use: Lead-Free
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• Material: Lead-Free Bronze
• Type of Item: Valve
• Type of Valve: Ball Valve
• Valve Ball Port Style: Full Port
• Valve Ball Material: Stainless Steel
• Valve End Connection Type: Female Solder Cup
• End Connection: Solder
• Valve Ball Operator: NIB-SEAL Extended Insulated Handle
• Turns Operations: Quarter-Turn
• Valve Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Valve Trim Package: Bronze Trim
• Valve Pressure Rating (CWP): 600 psi / 41.4 Bar CWP
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC: 039923446008
• Length: 6.84"
• Width: 6.48"
• Height: 2.94"
