Nibco Njb83txa ball valve 1 in. x 1 in.

Product Description

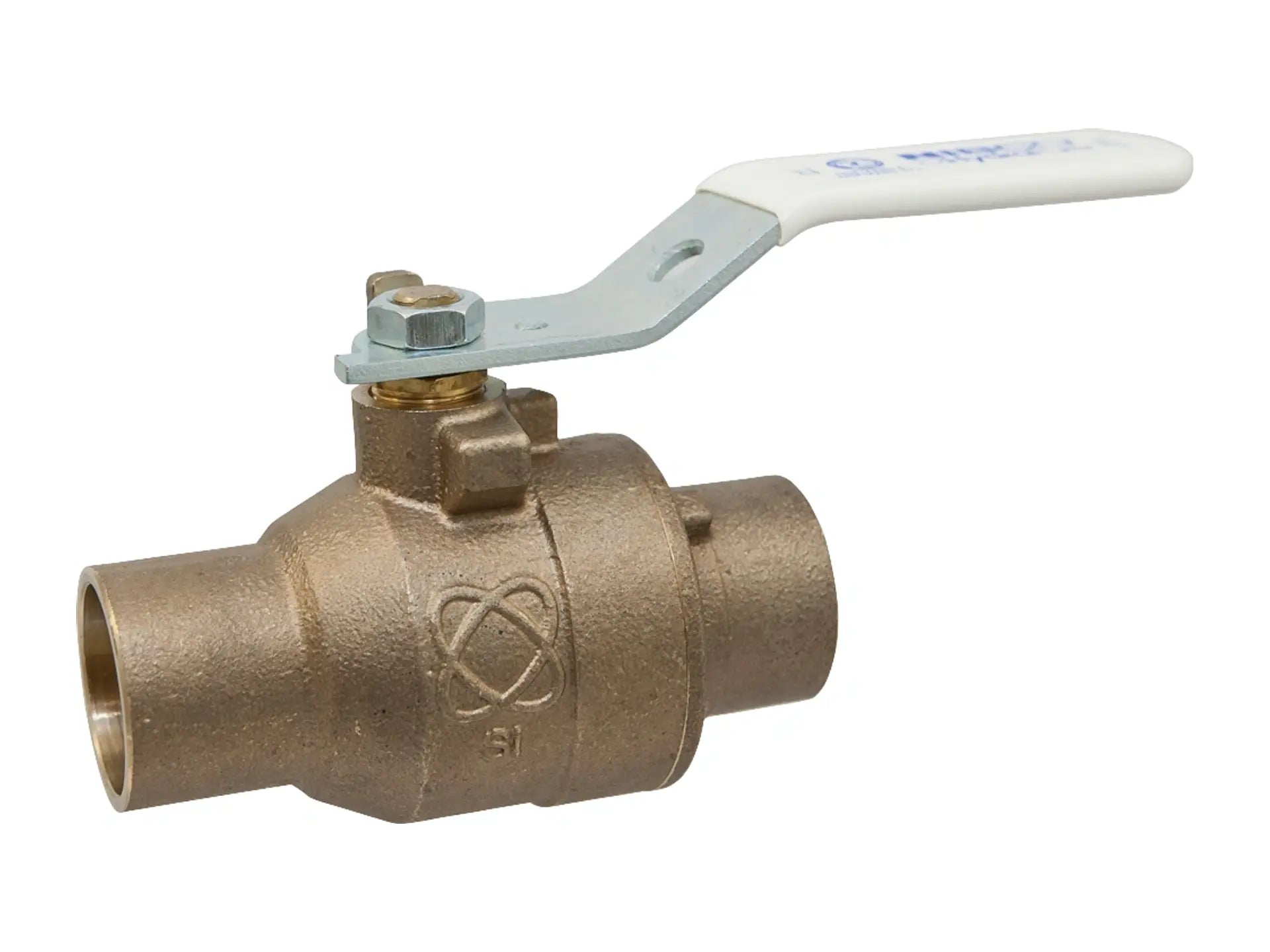

The NIBCO NJB83TXA ball valve is a lead-free bronze valve with a silicon bronze stem and ball. Ideal for delivering water for human consumption in residential and commercial construction. This two-piece valve features solder ends for easy quarter-turn (90°) operation. NIBCO ball valves are backed by a 5-year 125% limited warranty.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Lead-free bronze ball valve with silicon bronze stem and ball, featuring solder ends and quarter-turn operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83TXA
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NJB83TXA
• Model: S-585-80-LF-NS
• Series: S-585-80-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1"
• End Connection Type: S -- Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece

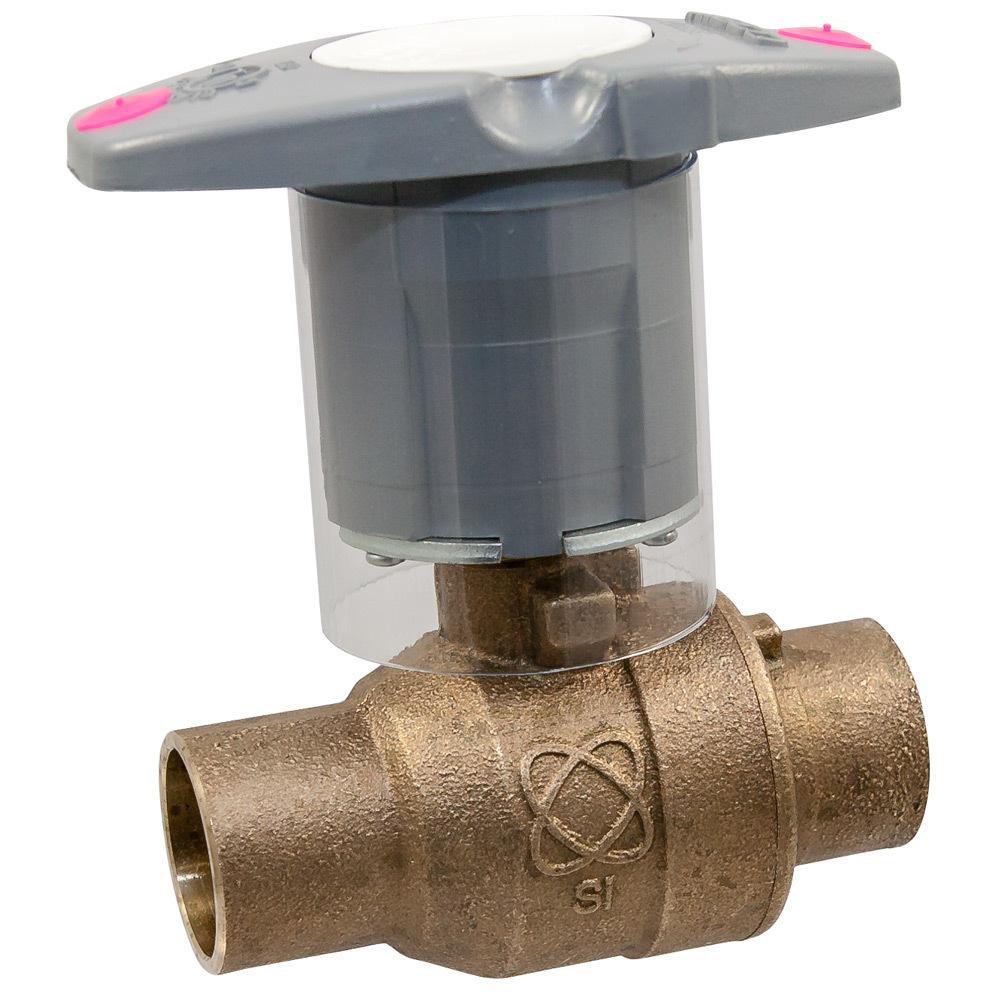

• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Material: Silicon Bronze
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445988
• Length: 6.65"
• Width: 4.26"
• Height: 2.26"
• Max temperature rating: 300 degreeF
• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• ANSI: ANSI 61-8, ANSI 372
• End Connection 1: Solder
• End Connection 2: Solder
• End Connections: Solder
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material Type: DZR
• Maximum Temperature: 300
• NSF: NSF 372, NSF 61-8
• NSF Certified: Yes
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
