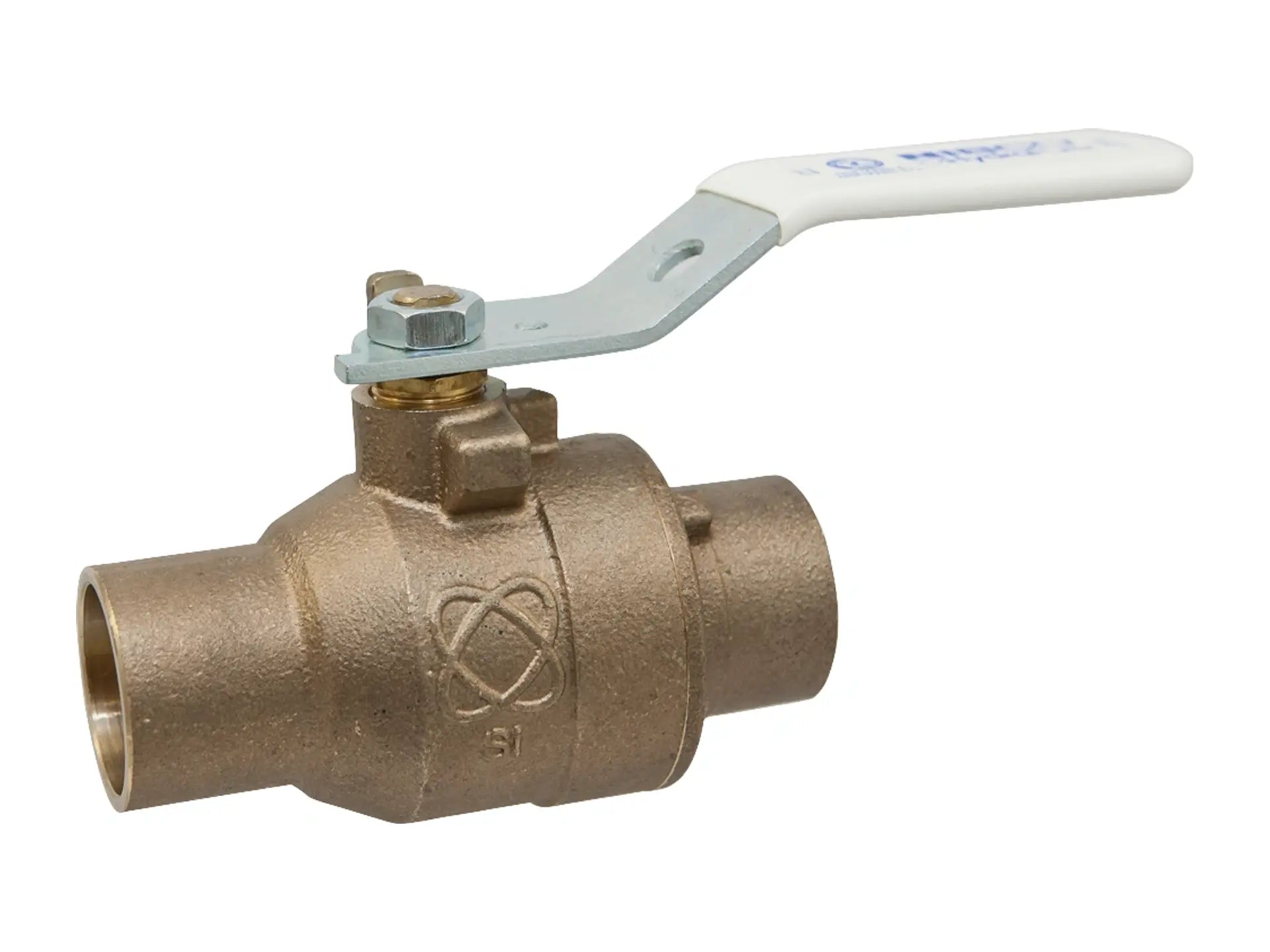

Nibco NJB83TX8 Hydrapure NJB83TX8 S-585-80-LF 2-Piece Ball Valve 3/4 in Nominal

Product Description

The NIBCO NJB83TX8 ball valve is made of lead-free Silicon Performance Bronze alloy and has achieved the stringent NSF/ANSI/CAN 61 section 8 and NSF/ANSI/CAN 372 listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. Ideal for use in applications that deliver water for human consumption.

• Standard lever handle, optional NIB-SEAL, Locking Lever, Memory Stop, Extended Lever, Round and Wing
• Dezincification resistant
• Max temperature rating 300 deg F

Product Highlights

The NIBCO ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball. Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure. Solder end connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83TX8
• Country of Origin: US

Technical Specifications

• Brand: NIBCO

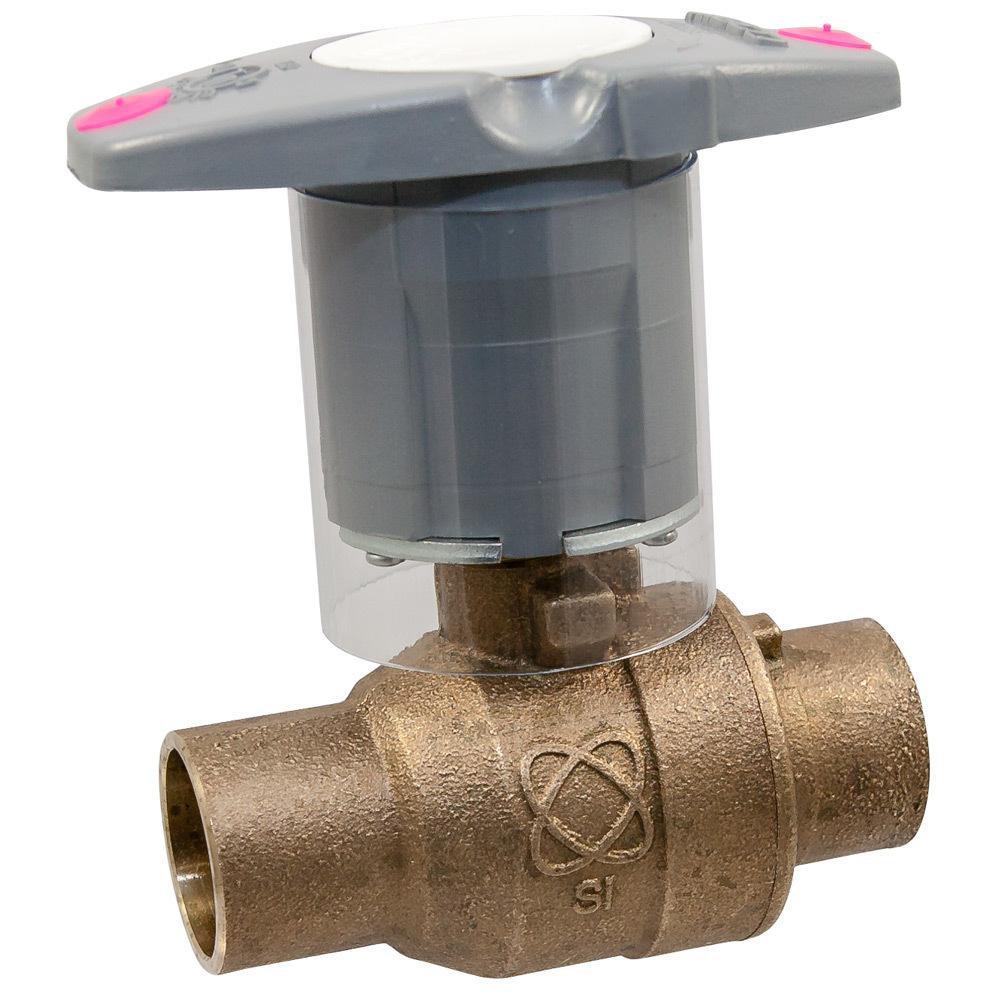

• Actuator Type: NIB-SEAL Extended Insulated Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.13 in
• Media: Water
• Nominal Size: 3/4 in
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 2.28 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NJB83TX8
• Model: S-585-80-LF-NS
• TypeOfValve: Ball
• NominalPipeSize: 3/4"
• End Connection Type: S -- Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• ANSI: ANSI 61-8, ANSI 372
• Collection: S-585-80-LF
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material Type: DZR
• Maximum Temperature: 300
• NSF: NSF 61-8, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• UL Listed: No
• UPC: 039923445971
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 3/4 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
