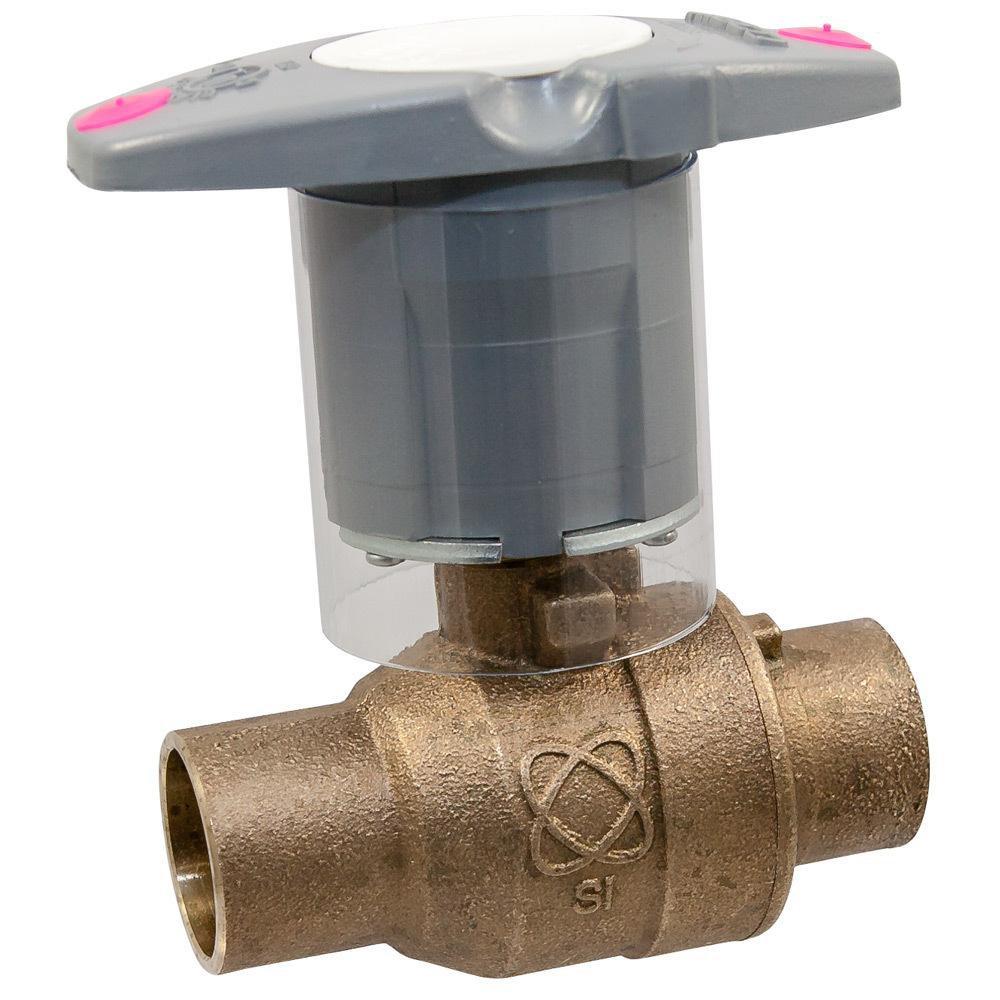

Nibco NJB83TX6 S-585-80-LF 1/2 in. Ball Valve

Product Description

The NIBCO NJB83TX6 is a S-585-80-LF series ball valve with a silicon bronze body, ball, and stem. This full port valve features solder end connections and is dezincification resistant. It has a pressure rating of 600 psi and a maximum temperature rating of 300°F. Ideal for various plumbing applications.

• Solder end connections
• Dezincification resistant
• Blowout Proof Stem

Product Highlights

Silicon bronze ball valve with full port, solder end connections, and a blowout-proof stem.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83TX6

Technical Specifications

• ANSI: ANSI 61-8, ANSI 372
• Collection: S-585-80-LF
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-23/100
• MSS: MSS SP-110
• Material: Silicon Bronze
• Material Type: DZR
• Maximum Temperature: 300
• NSF: NSF 61-8, NSF 372
• NSF Certified: Yes
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
