Nibco njb83hx6 valve 1/2 in. s-585-66-lf

Product Description

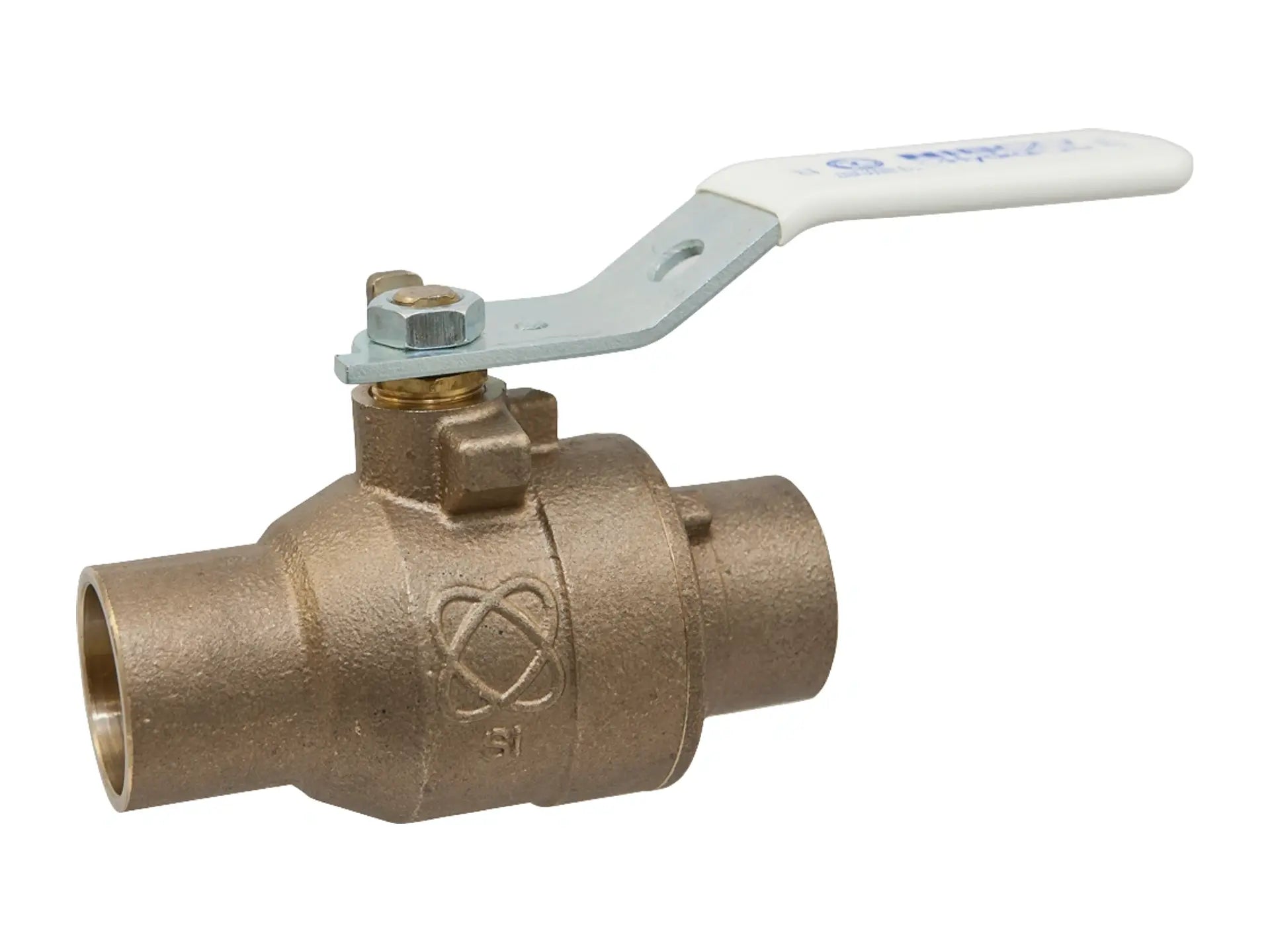

The NIBCO NJB83HX6 ball valve is made of lead-free bronze with a silicon bronze stem and stainless steel ball. This two-piece valve features solder ends for easy installation and provides ease of operation with a quarter-turn (90°) open to close. It is ideal for use in applications that deliver water for human consumption.

• Valve pressure rating 600 psi non-shock cold working pressure
• Maximum temperature rating 300°F
• Features a full port, vented ball, and a blowout-proof stem

Product Highlights

The NIBCO bronze ball valve is a versatile and economical option for commercial, residential, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83HX6
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO INC.
• Part Number: NJB83HX6
• Model: S-585-66-LF
• Series: S-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1/2"
• End Connection Type: Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445667
• Length: 5.02"
• Width: 2.56"
• Height: 1.2"
• Exterior Finish: Bronze
• Inlet Connection Type: Solder
• Unit Count: 1.0 Count
• Number of Items: 1
• Item Type Name: Ball Valve
• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Female Solder Cup
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 100 psi
• Temperature Rating: 300 deg F
• Trim Material: Stainless Steel
