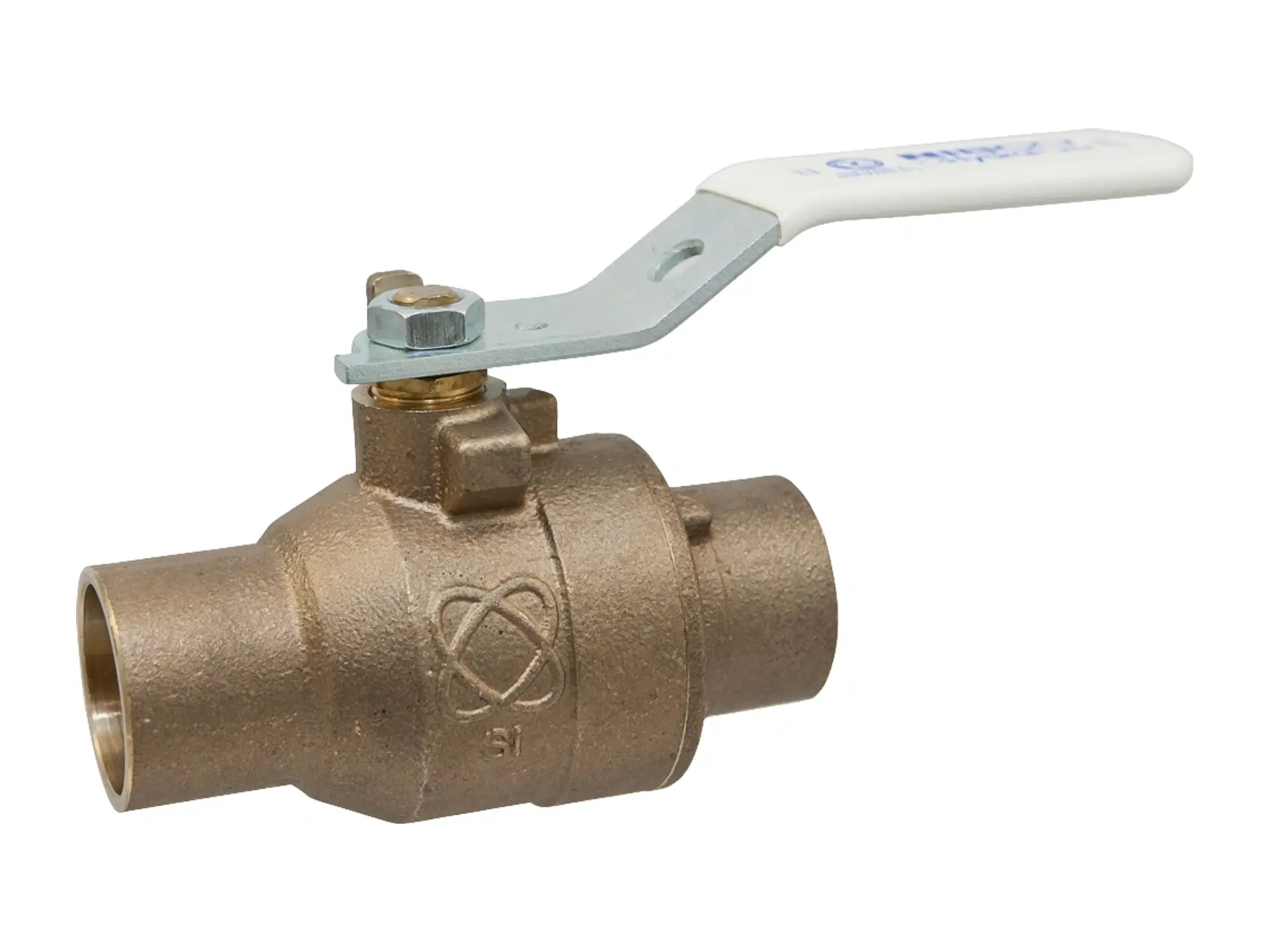

Nibco NJB83HNC Ball Valve 1-1/2 inches

Product Description

The NIBCO ball valve, MPN NJB83HNC, is made of lead-free bronze with silicon bronze stem and ball, ideal for delivering water for human consumption in residential and commercial construction. This two-piece valve features solder ends for easy installation and quarter-turn (90") operation.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300 00b0F
• Full port

Product Highlights

Lead-free bronze ball valve with silicon bronze stem and stainless steel ball. Features solder end connections and quarter-turn operation.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83HNC
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NJB83HNC
• Model: S-585-66-LF-NS
• Series: S-585-66-LF
• Type of Valve: Ball Valve
• Nominal Pipe Size: 1-1/2"
• End Connection Type: S -- Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Handle
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445650
• Length: 7.23"
• Width: 6.48"
• Height: 2.94"
• ANSI: ANSI 61-8, ANSI 372
• End Connection 1: Sweat
• End Connection 2: Sweat
• End Connections: Sweat
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material Type: DZR
• Maximum Temperature: 300
• NSF: NSF 372, NSF 61-8
• NSF Certified: Yes
• Pressure - Maximum: 600 psi
• Pressure Class: 600#
• UL Listed: No
• Valve Body Style: 2 piece
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1-1/2 in
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
