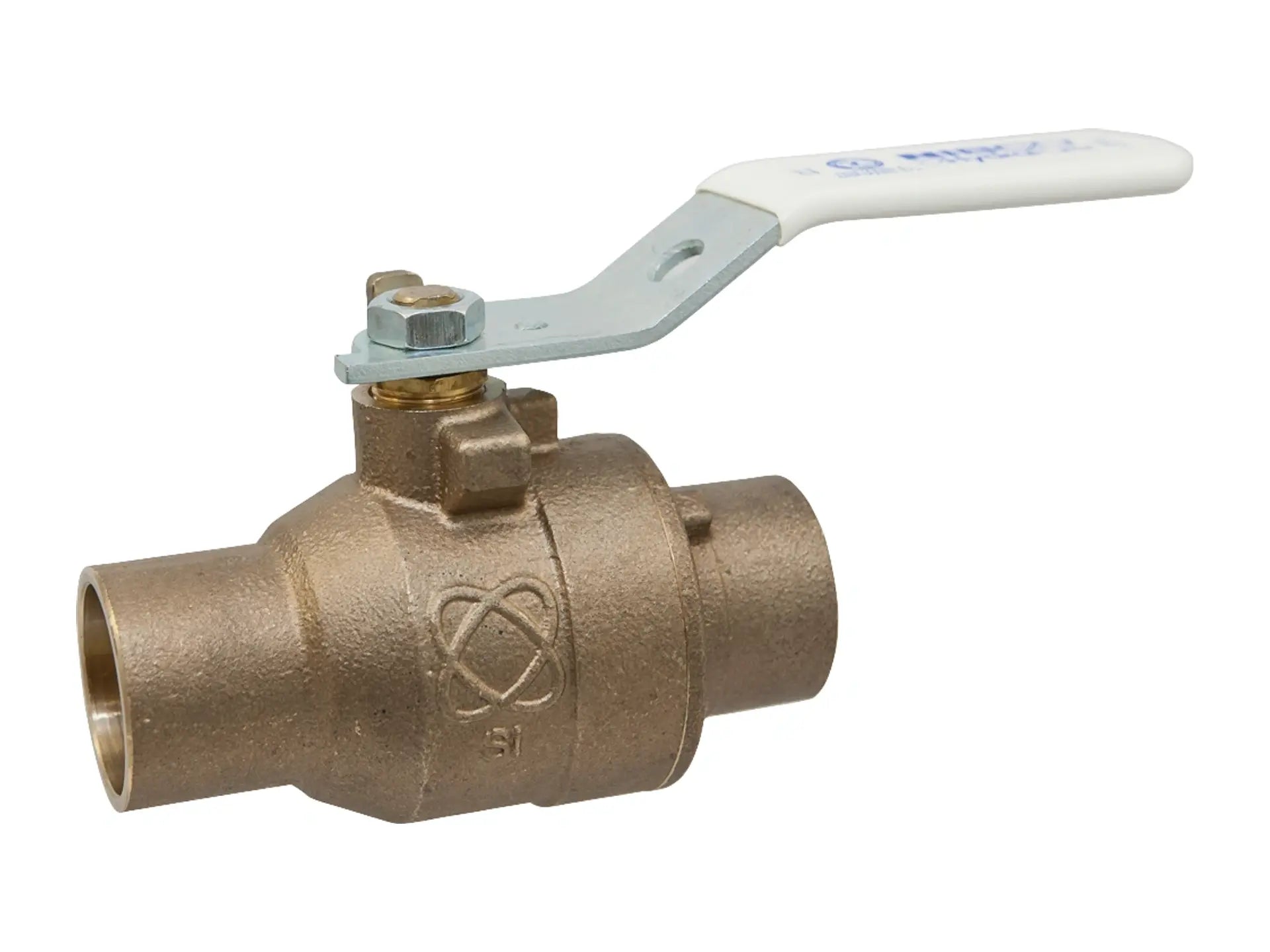

Nibco njb83hna ball valve 1 in. lead-free

Product Description

The NIBCO NJB83HNA ball valve is made of lead-free bronze with a silicon bronze stem and ball. Ideal for delivering water for human consumption in residential and commercial construction. This two-piece valve features solder ends for easy installation and provides quarter-turn (90°) operation. The valve provides a bubble-tight shutoff at 600 PSI and is dezincification resistant.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

The NIBCO ball valve is a versatile and economical option for commercial, residential, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB83HNA
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NJB83HNA
• Model: S-585-66-LF-NS
• Series: S-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1"
• End Connection Type: Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece

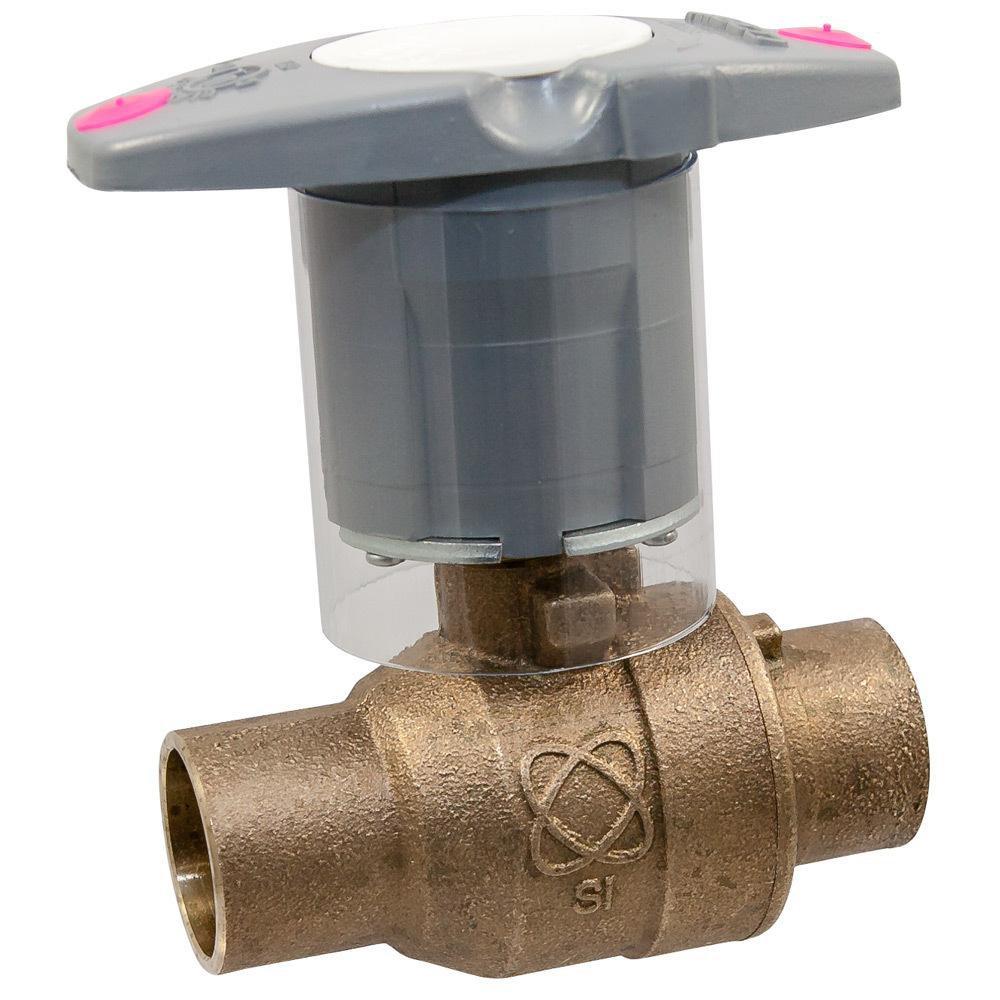

• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445636
• Length: 3-99/100
• Width: 4-1/4
• Height: 2.25"
• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating: 300 F
• Full port: Yes
• Body Material: Silicon Performance Bronze
• Ball and stem: Stainless steel
• Ball: Vented ball
• Stem: Blowout-proof stem
• Handle: Standard lever handle, optional NIB-SEAL , Locking Lever, Memory Stop, Extended Lever, Round and Wing
• Markings: NIBCO HydraPure lead-free markings on handle and body
• End connections: Solder end connections
• Resistant: Dezincification resistant
• Lead-free: Yes
• Conforms to: MSS SP-110
• NSF/ANSI/CAN: 372
• IAPMO/ANSI: Z1157
• Actuator Type: Blow-Out Proof Stem
• Domestic/Import: Domestic
• End Style: Female Solder Cup
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 100 psi
• Temperature Rating: 300 deg F
• Trim Material: Stainless Steel
• Type: 2-Piece
• ANSI: ANSI 372, ANSI 372-8, ANSI 61, ANSI 61-8, ANSI Z1157
• ASTM: ASTM A-276, ASTM B-16, ASTM B-584
• Collection: S-585-66-LF
• End Connection 1: Female Sweat
• End Connection 2: Female Sweat
• End Connections: Female Sweat
• FM Approved: No
• Handle Material: Zinc Plated Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110, MSS SP-145
• Material Type: RPTFE
• NSF: NSF 372, NSF 372-8, NSF 61, NSF 61-8
• NSF Certified: Yes
• Origin: Domestic
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• UL Listed: No
• Valve Body Material: Bronze
• Valve Body Style: 2 piece
• Valve Disc Material: Stainless Steel
• Valve Operator: Insulated NIB-SEAL Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• cUPC Certified: Yes
