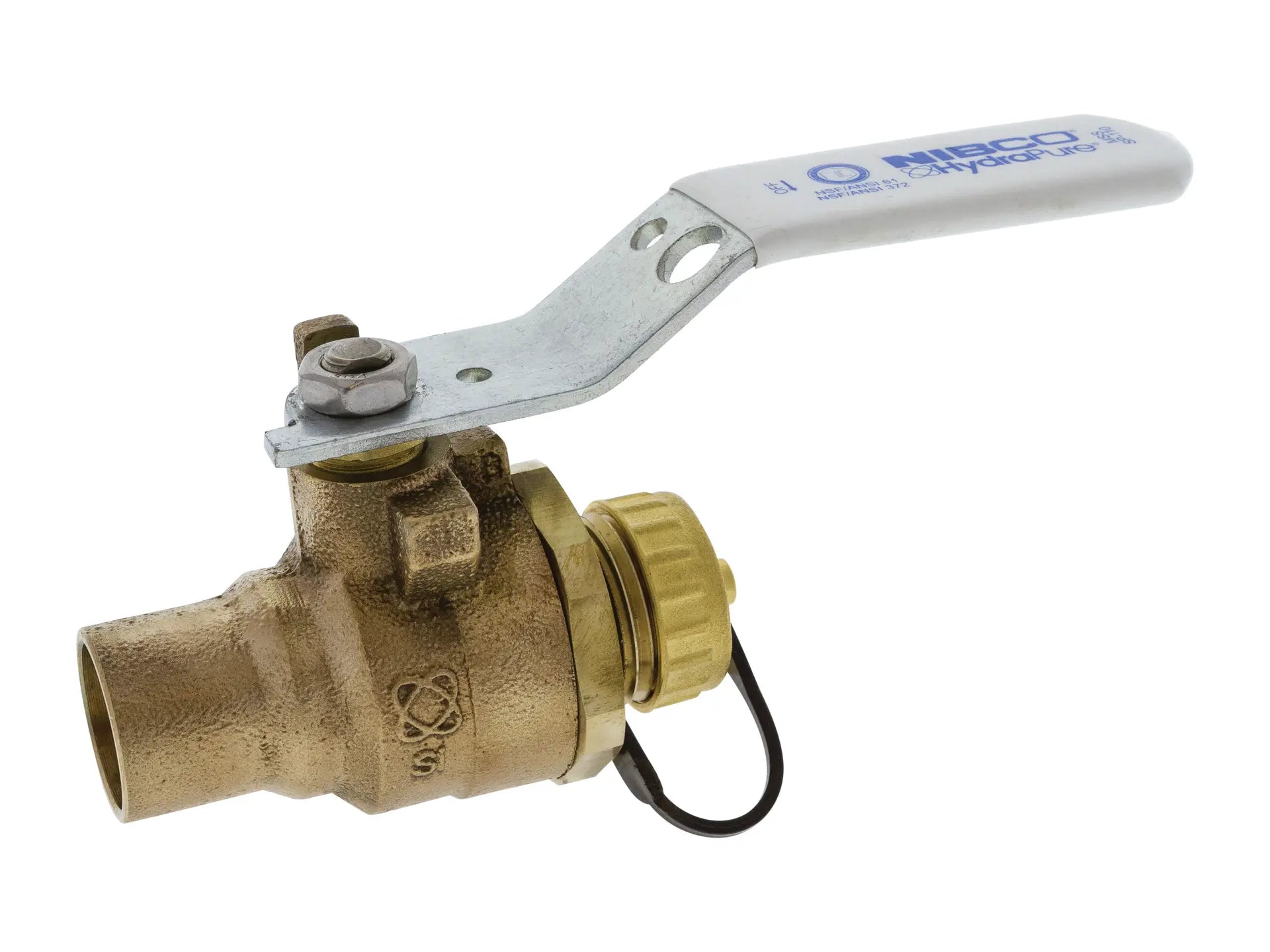

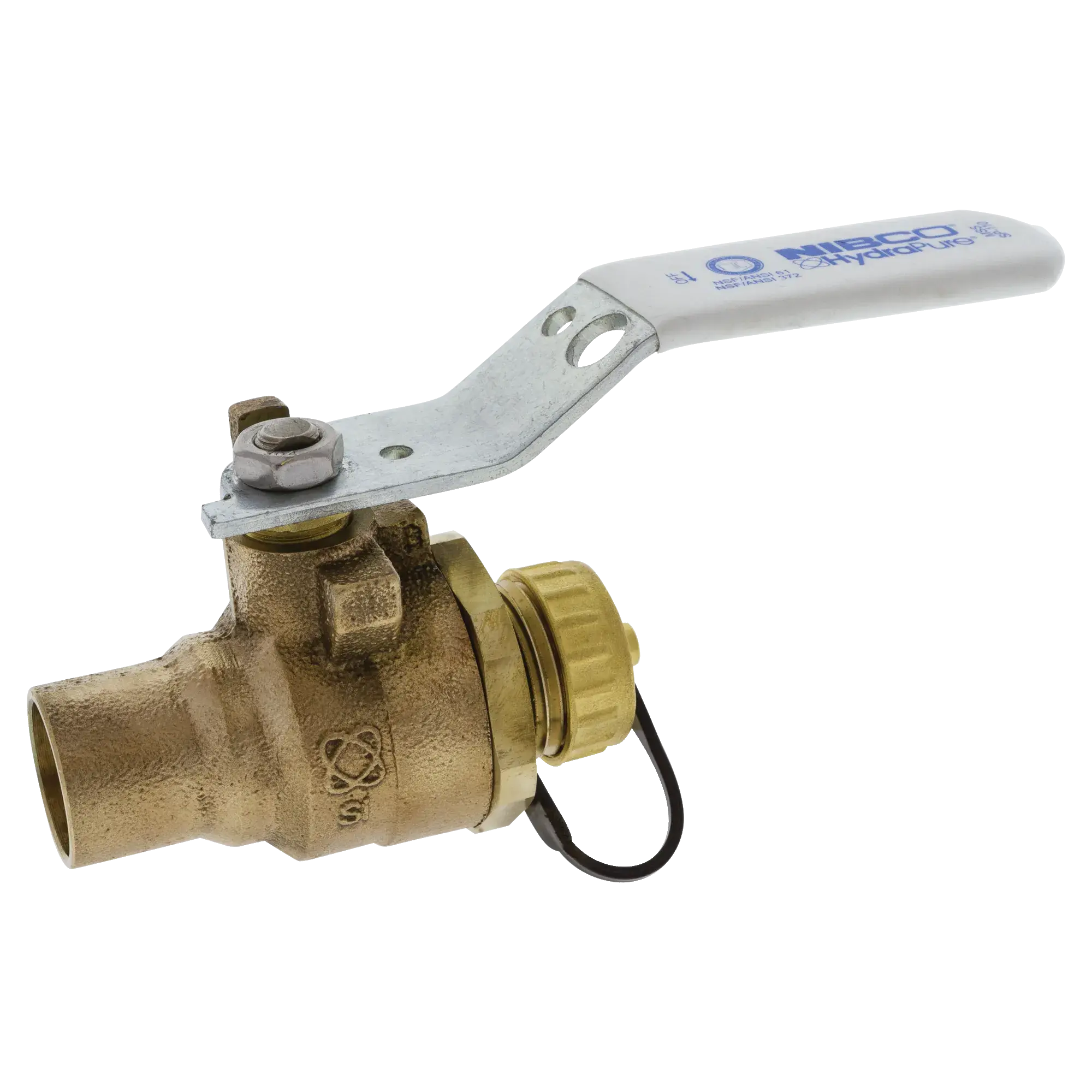

Nibco NJB838X8 Two-Piece Bronze Ball Valve Lead-Free, Full Port, Stainless Steel Trim, Solder, Hose Connection

Product Description

The NIBCO ball valve is made of lead-free Silicon Performance Bronze alloy and has achieved the stringent NSF/ANSI 61 section 9 and NSF/ANSI 372 listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with stainless steel stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Full port
• Silicon Performance Bronze body

Product Highlights

Ideal for use in applications that deliver water for human consumption including residential and commercial construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB838X8
• Country of Origin: US

Technical Specifications

• Valve pressure rating: 600 psi 41.4 bar non-shock cold working pressure
• Port Type: Full port
• Body Material: Silicon Performance Bronze
• Ball and Stem Material: Stainless steel
• Stem Type: Blowout-proof stem
• Markings: NIBCO HydraPure lead-free markings on handle and body
• Handle: Standard lever handle; other handle options available
• End Connections: Solder end connections
• Resistant: Dezincification resistant
• Lead-Free: Lead-free
• Conforms to: MSS SP-110
• NSF/ANSI/CAN: 61
• IAPMO/ANSI: Z1157
• Type of Valve: Ball
• Nominal Pipe Size: 3/4"
• End Connection Type: S-HC -- Female Solder Cup x Hose Cap and Chain
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Ball Stem Material: SS - Stainless Steel
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
