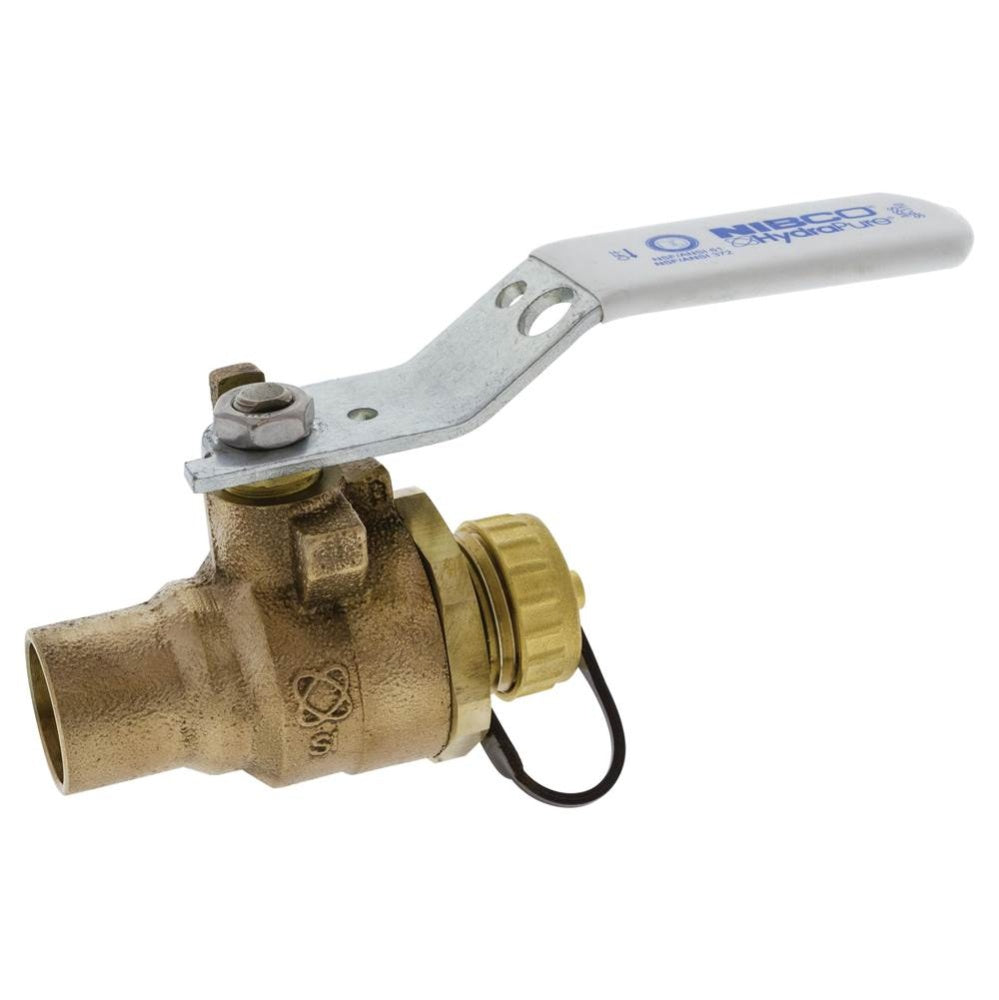

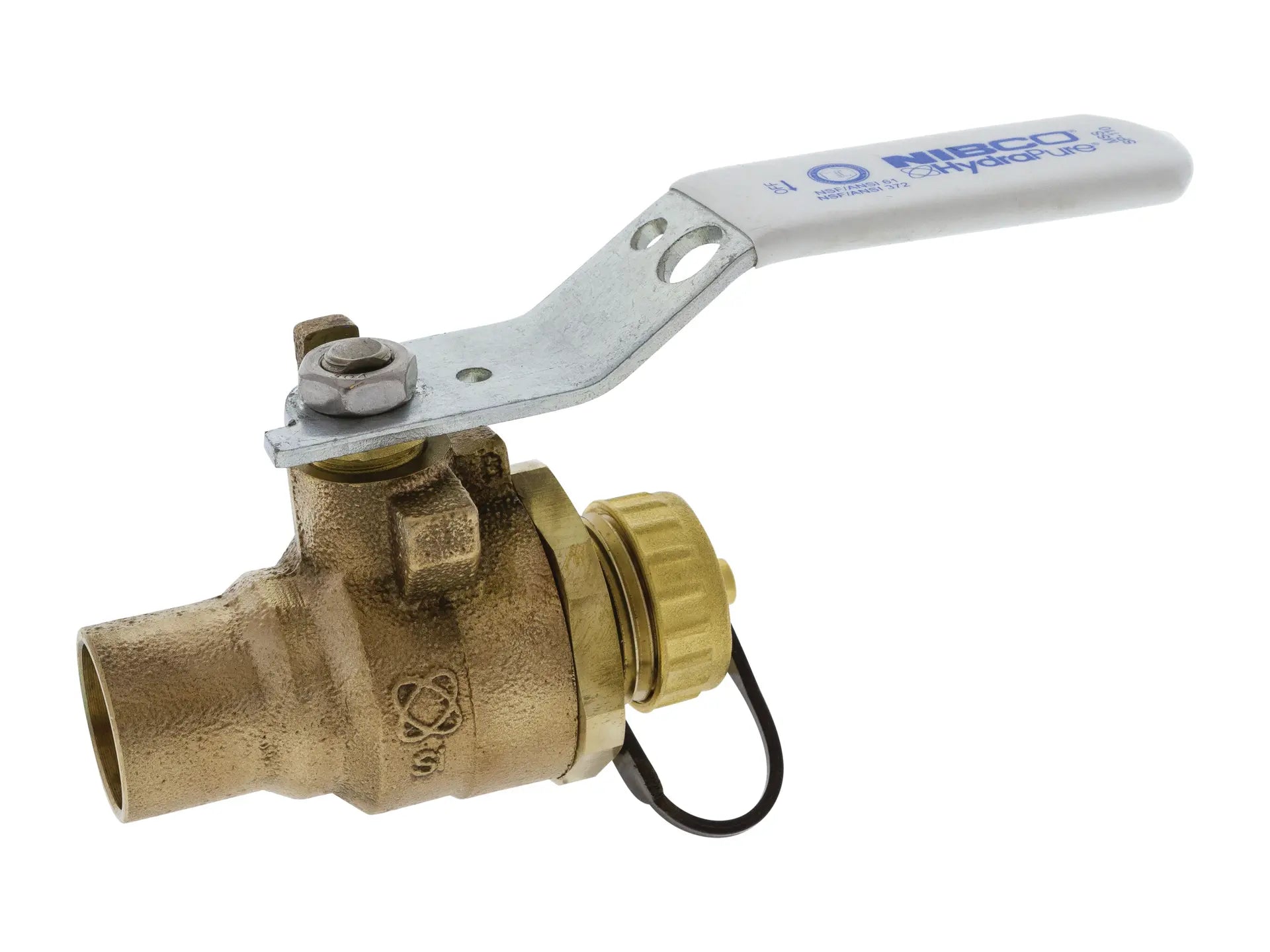

Nibco NJB838X6 S-585-66-LF-HC Ball Valve 1/2 X 3/4 IN

Product Description

The NIBCO NJB838X6 S-585-66-LF-HC ball valve is made of lead-free Silicon Performance Bronze™ alloy. This two-piece valve provides a bubble-tight shut-off at 600 PSI and is dezincification-resistant. It features reinforced PTFE seat rings with stainless steel stem and ball, making it ideal for delivering water for human consumption.

• Valve pressure rating 600 PSI non-shock cold working pressure
• Full port
• Silicon Performance Bronze™ body

Product Highlights

Lead-free NIBCO ball valve with bronze body, stainless steel ball and stem, and solder end connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB838X6
• Country of Origin: US

Technical Specifications

• Item Name: Ball Valve
• Type: 2-Piece, Blowout-Proof Stem, Full-Port
• Series/Model: S-585-66-LF-HC
• Nominal Size: 1/2 X 3/4 IN
• Connection Type: Solder X Hose
• Pressure Rating: 600 PSI (CWP) Non-Shock
• Body Material: Bronze
• Operator Type: Standard Lever Handle
• Handle Material: Steel
• Stem Material: Stainless Steel
• Trim Material: Stainless Steel
• Packing Material: Virgin PTFE
• Gland Material: Brass
• Material Standard: Ball: ASTM A276/ASTM A351, Body: ASTM B584, Hose Body End: ASTM B371, Packing Gland: ASTM B16, Stem: ASTM A276
• Material Specification: Ball: UNS CF8M, Body: UNS C87600, Hose Body End: UNS C69300, Packing Gland: UNS C36000
• Lead Free: Yes
• Other Physical Dimension: 1.96 IN Center To Top Of Handle, 3.96 IN Handle Length
• Additional Specifications: Ball Material: Stainless Steel
• Manufacturer: NIBCO
• Part Number: NJB838X6
• Model: S-585-66-LF-HC
• Series: S-585-66-LF-HC
• Type of Valve: Ball
• Nominal Pipe Size: 1/2"
• End Connection Type: S-HC -- Female Solder Cup x Hose Cap and Chain
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Material: Stainless Steel
• Ball Stem Material: SS - Stainless Steel
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 4.62"
• Width: 2.88"
• Height: 2.62"
• End Connection 1: Sweat
• End Connection 2: GHT
• End Connections: Sweat x GHT
• FM Approved: No
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• MSS: MSS SP-110
• Material: Silicon Bronze
• Material Type: DZR
• NSF: NSF 61-9, NSF 372
• NSF Certified: Yes
• Pressure Class: 600#
• Valve Body Style: 2 piece
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Reinforced PTFE
• Valve Size: 1/2 in x 3/4 in
• Valve Type: Ball Valve
• ANSI: ANSI 61-9, ANSI 372
