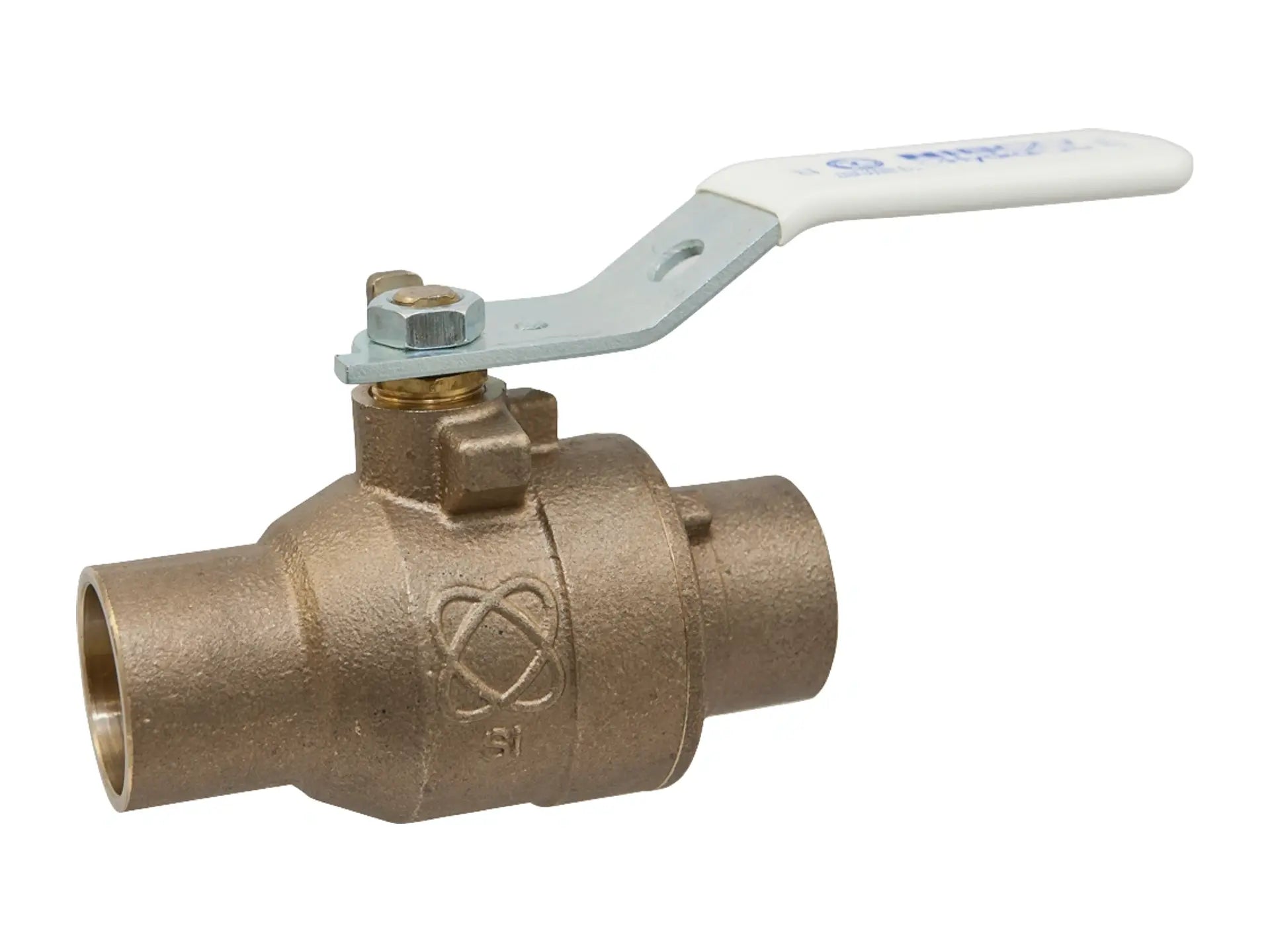

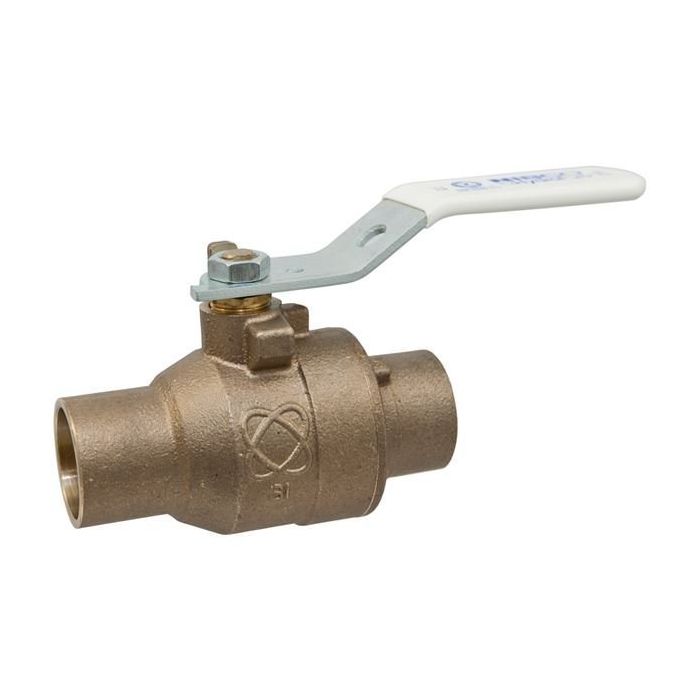

Nibco NJB831XC 2-Piece Ball Valve 1-1/2 inches S-585-80-LF

Product Description

The NIBCO NJB831XC bronze Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve features solder ends for easy installation. It provides bubble-tight shutoff at 600 psi and is dezincification resistant. Ideal for use in applications that deliver water for human consumption including residential and commercial construction.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Silicon Performance Bronze body, ball and stem
• Blowout-proof stem

Product Highlights

The valve features a full port, lead-free construction, and conforms to MSS SP-110. It also has NIBCO HydraPure lead-free markings on the handle and body.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB831XC

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 4.97 in
• Media: Water
• Nominal Size: 1-1/2 In
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 3.32 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Manufacturer: Nibco
• Part Number: NJB831XC
• Model: S-585-80-LF
• UPC: 039923445384
• Application: Lead-Free
• System Use: Lead-Free
• Potable Water Code: LL Compliant NSF/ANSI 372
• Material: Lead-Free Bronze
• Type of Item: Valve
• Type of Valve: Ball Valve
• Valve Ball Port Style: Full Port
• Turns Operations: Quarter-Turn
• Valve Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Valve Trim Package: Bronze Trim
• Valve Pressure Rating (CWP): 600 psi/41.4 bar CWP
• Length: 9.24"
• Width: 4.72"
• Height: 2.84"
