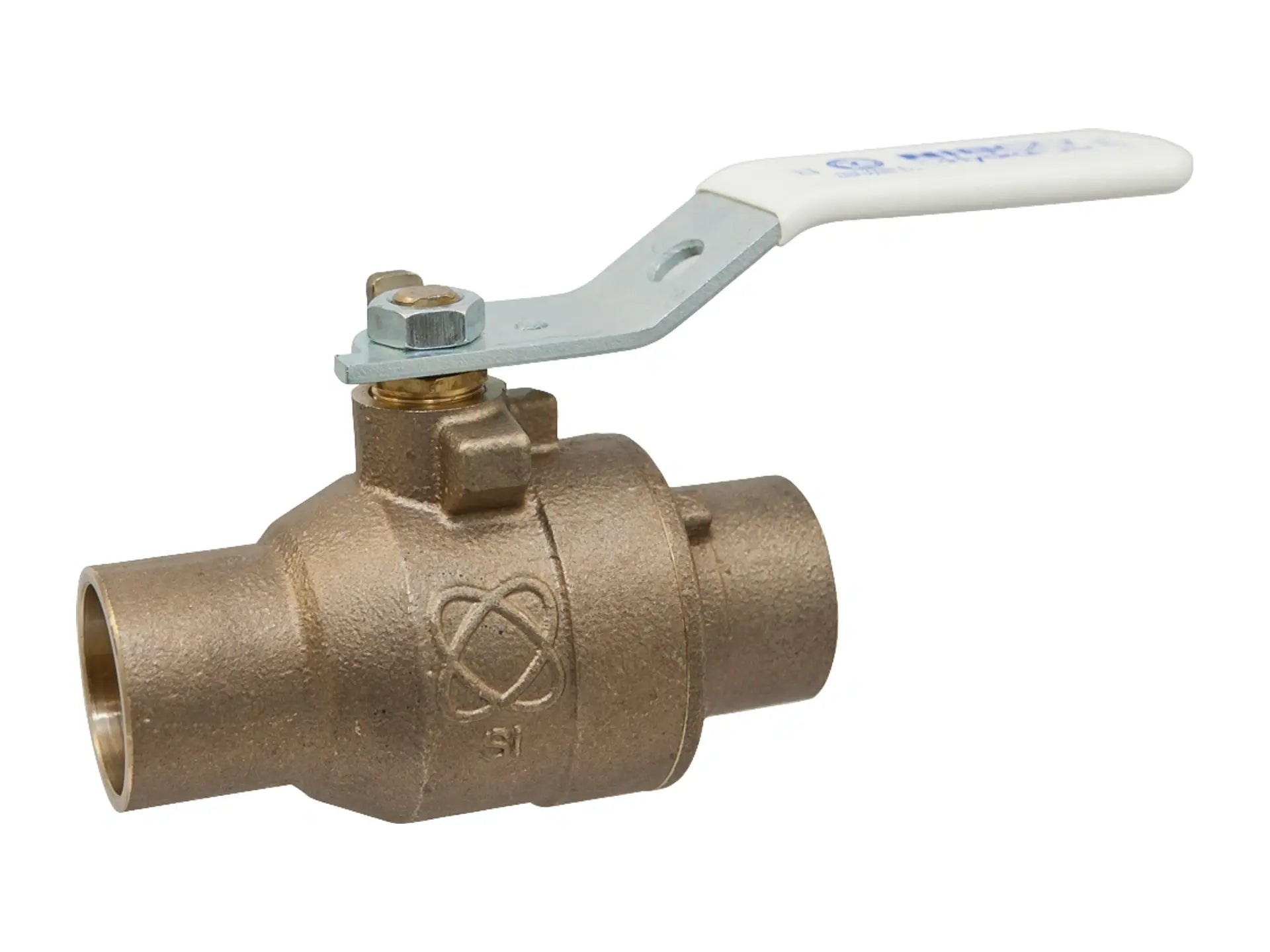

Nibco njb831xb S-585-80-LF 2-piece Ball Valve 1-1/4 in

Product Description

The NIBCO NJB831XB bronze Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve features solder ends for easy installation. Choose NIBCO Ball Valves for a versatile and economical valve option in commercial, residential, mechanical and industrial applications.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Silicon Performance Bronze body, ball and stem
• Blowout-proof stem

Product Highlights

This NIBCO ball valve is made of lead-free bronze with silicon bronze stem and ball, and is ideal for use in applications that deliver water for human consumption including residential and commercial construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NJB831XB
• Country of Origin: US

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 4.97 in
• Media: Water
• Nominal Size: 1-1/4 In
• Orifice Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 3.32 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
• Manufacturer: NIBCO
• Part Number: NJB831XB
• Model: S-585-80-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/4"
• End Connection Type: S -- Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
