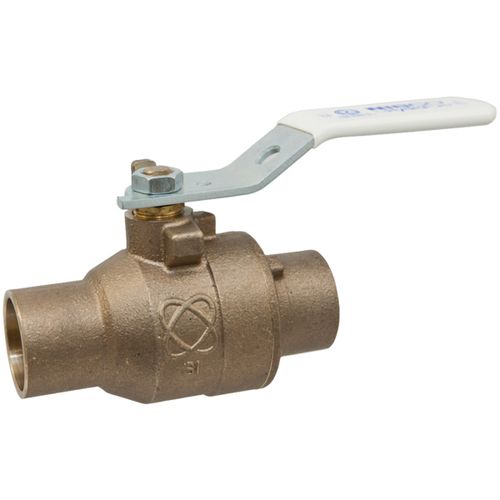

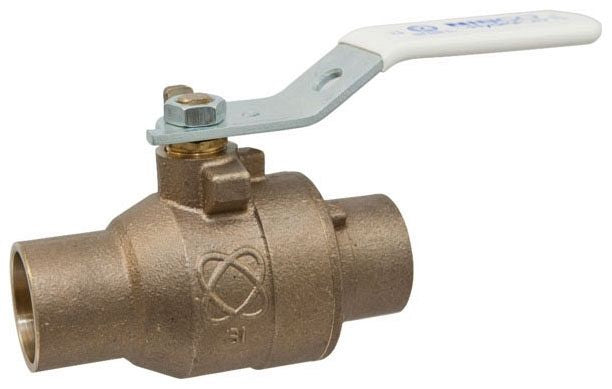

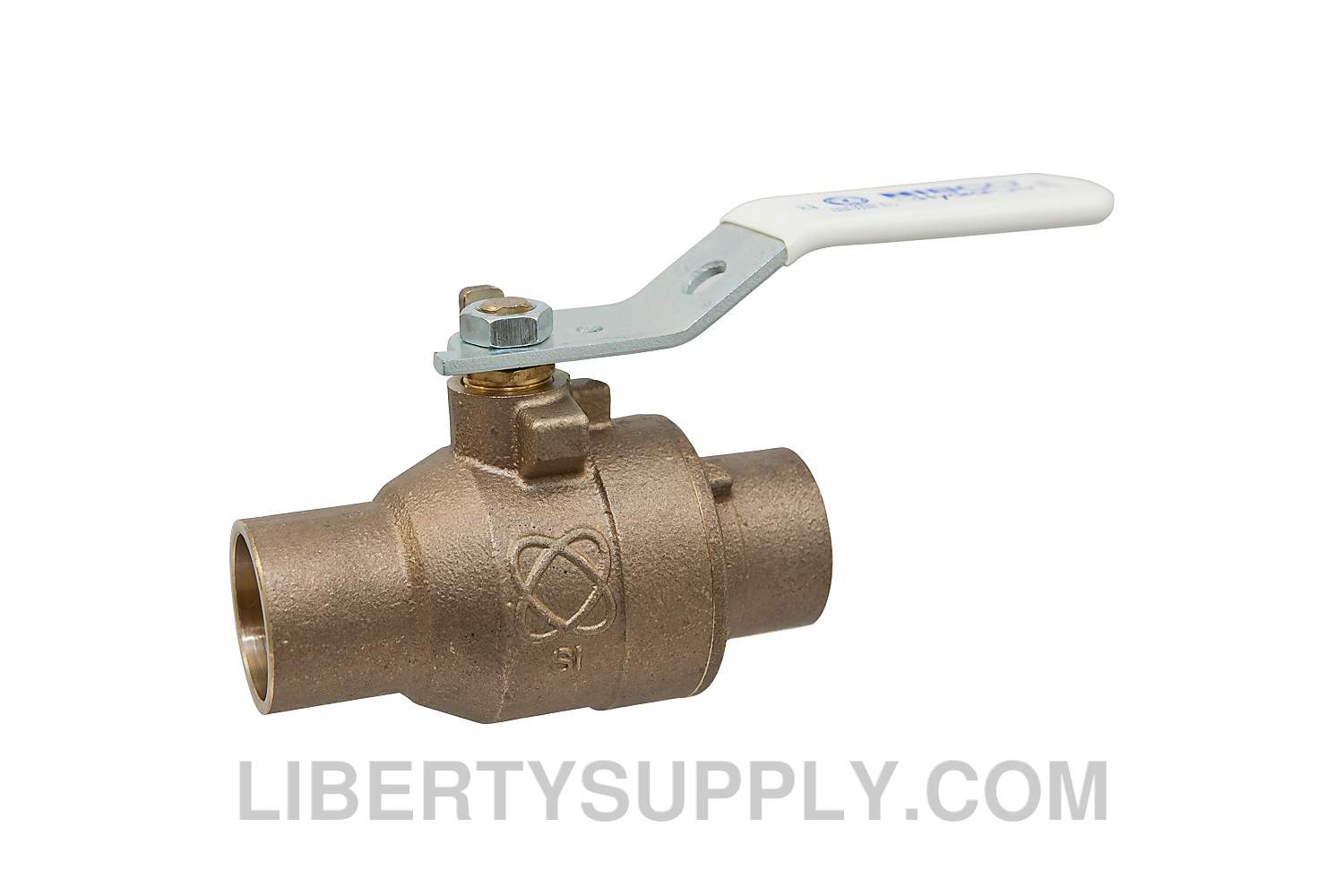

NIBCO NJB830XA Solder End Ball Valve 1 in

Product Description

The NIBCO NJB830XA is a one-inch solder end ball valve designed for effective flow control in various applications. This valve features a robust two-piece construction and is made from silicon bronze, ensuring durability and reliability. The quarter-turn operation allows for quick and easy adjustments. It is ideal for both residential and commercial use, effectively delivering potable water.

• Full port design for maximum flow.
• Constructed with silicon bronze body and components.
• Designed for easy solder end connections.

Product Highlights

This valve is suitable for use in mechanical and industrial settings, providing safe delivery of water for human consumption.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NJB830XA

Technical Specifications

• Valve Type: Ball
• Nominal Size: 1 in
• End Connection Type: S - Female Solder Cup
• Body Material: Silicon Bronze
• Ball Body Type: Two-Piece
• Actuator Type: Lever Handle
• Pressure Rating: 600 psi
• Temperature Rating: 300 deg F
• Seat Material: Reinforced PTFE
• Handle Material: Chromate Plastisol Coated Clear Zinc Plated Steel
• Media: Water
• Inlet to Outlet Length: 3.99 in
• Length: 6.62 in
• Width: 3.46 in
• Height: 1.97 in
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445322
