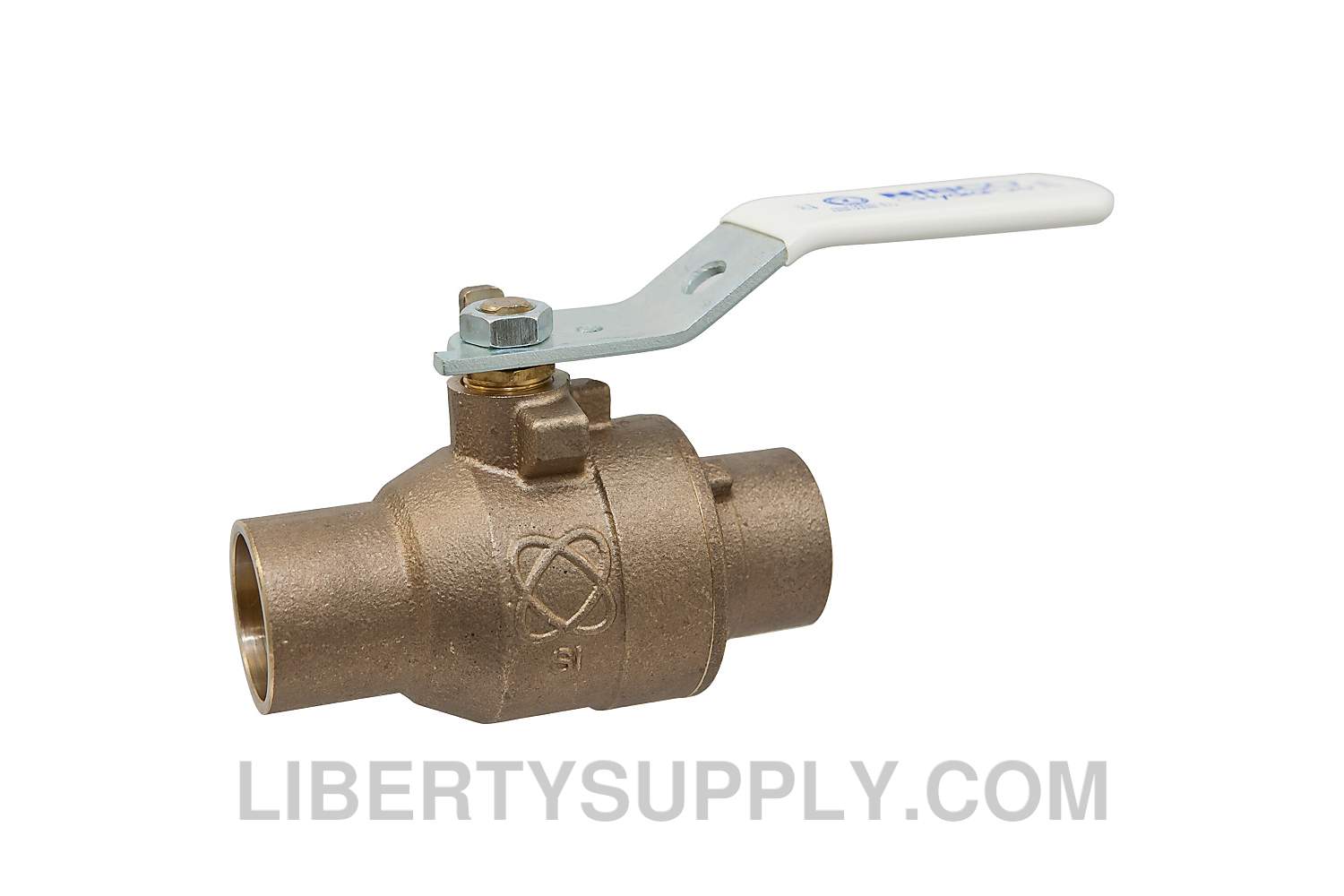

NIBCO NJB830X8 Bronze Ball Valve

Product Description

The NIBCO NJB830X8 bronze ball valve is designed for effective water control with a simple quarter-turn operation. This valve is made from lead-free bronze, ensuring safety for potable water applications. With solder end connections, it is easy to install in both residential and commercial settings.

• Valve size: three-fourths of an inch
• End connection type: female solder cup
• Valve operator: CS standard lever handle

Product Highlights

Ideal for both residential and commercial construction, this two-piece, full port valve provides reliable performance in various water applications.

Product Information

Standard Information

• Manufacturer: NIBCO
• Part Number: NJB830X8

Technical Specifications

• Model: S-585-80-LF
• Series: S-585-80-LF
• Type: Ball Valve
• Nominal Pipe Size: three-fourths of an inch
• End Connection Type: Female Solder Cup
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Valve Operator: CS Standard Lever Handle
• Ball Port Style: Full Port
• Ball Material: Silicon Bronze
• Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns/Operation: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923445308
• Max Temperature Rating: 300°F
• Length: 6.28 inches
• Width: 3.07 inches
• Height: 1.56 inches
• Country of Origin: US
